Transcranial embolization of a superficial DAVF: an alternative technique after unsuccessfull conventional approaches

Last update on February 2, 2021

Find out how Dr Mario Martínez-Galdámez, Dr Jorge Galván and Dr Miguel Schüller (Hospital Clínico Universitario de Valladolid, Spain) performed a transcranial embolization of a parasagital/superficial DAVF after unsuccessfull conventional approaches.

Case

CASE PRESENTATION

  • A patient on her/his 70s
  • CT and CTA: superficial SAH, midline DAVF
  • Conventional approaches failed (partial embolization)
  • Persistent headaches, no neurological deficits, GSC 15





PREOPERATIVE IMAGES

DSA, Injection from right ECA:

  • Images show a midline, superficial, parasagittal DAVF
  • Previous embolizations attempts were unsuccessful to reach the foot of the vein (blue arrow). Considering the superficial location, and the tiny/tortuous afferent arteries, a transcranial puncture was proposed.





Preoperative marker, DSA guided:

  • A surgical staple was placed into the skin at the level of the mid-portion of the draining vein(X), as a marker to perform the burr hole





  • Once the burr hole was done (dotted circle), puncture was performed using a 22 G spinal needle (arrow)
  • We punctured out of the skin incision (blue circle) for achieving a more stable position of the needle
  • A Y-connector was used to avoid blood reflux, allowing also a comfortable microcatheter insertion





PROCEDURAL IMAGES

  • Puncture was performed under road-map wearing radioprotective gloves.





  • AP view, for the initial tip orientation, and lateral view, for the needle angulation/advance. Target was the foot of the vein.

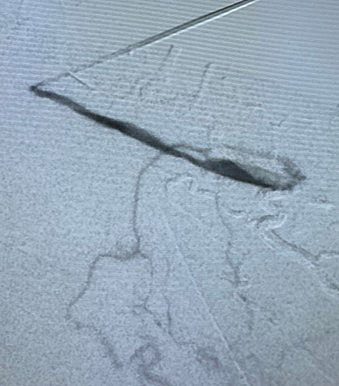

  • DSA, lateral view: after obtaining blood reflux, a contrast injection confirmed the correct position of the needle. A marathon microcatheter was inserted through the needle



DSA lateral view



  • Once the Marathon microcatheter (Medtronic) reached the foot of the Vein, we deployed Barricade coils (Balt Extrusion) through it





  • Image setup illustrating the needle and the microcatheter location

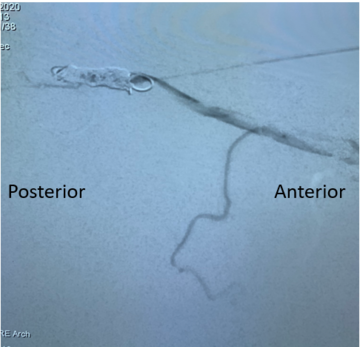

  • DSA, lateral view, needle contrast injection: after coils deployment, contrast distributed anterogradely into the vein



Needle contrast injection



  • 2 cc of Onyx-34 were gently injected through the Marathon microcatheter from the coils, to the anterior venous side





  • Onyx cast: complete obliteration of the foot of the vein and the draining vein

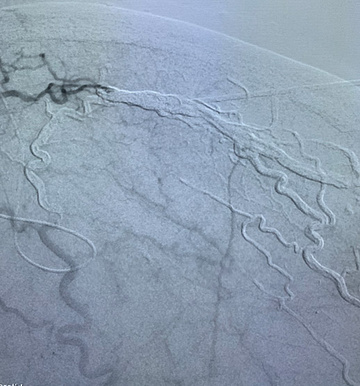

  • DSA, lateral view showing complete occlusion of the fistula



Complete occlusion



  • Dyna CT reconstruction showing the midline location of the Coils/Onyx cast, the needle (white arrow), and the burr hole (blue arrow) over the vein.





RESULTS

  • After the needle removal, a gentle manual compression was applied during 5 minutes, and the skin incision was closed with staples.
  • DSA ruled out local complications, confirming the complete occlusion of the DAVF.
  • Patient was extubated 2 hours later, without complications.
  • Patient was discharged 48 hours later, without headaches and no neurological deficits.



Results
