Dural arteriovenous fistula mimicking CCF

Last update on November 28, 2022

Find out how Dr. Karki Prasanna treated a 41-year-old female patient with a dural arteriovenous fistula (DAVF) mimicking CCF.

Case presentation
  • 51-year-old female patient
  • RTA on 22/09/2022 with right frontal contusion and fracture of the right temporal bone
  • Slight redness of the right eye for 6 weeks
  • Pulsatile tinnitus on the right side and auricular fullness
  • Elevated right intraocular pressure
  • Digital subtraction angiography (DSA) showed a dural arteriovenous fistula (DAVF) of the right occipital condyle with feeding arteries mainly from the jugular branch of the neuromeningeal division of the ascending pharyngeal artery

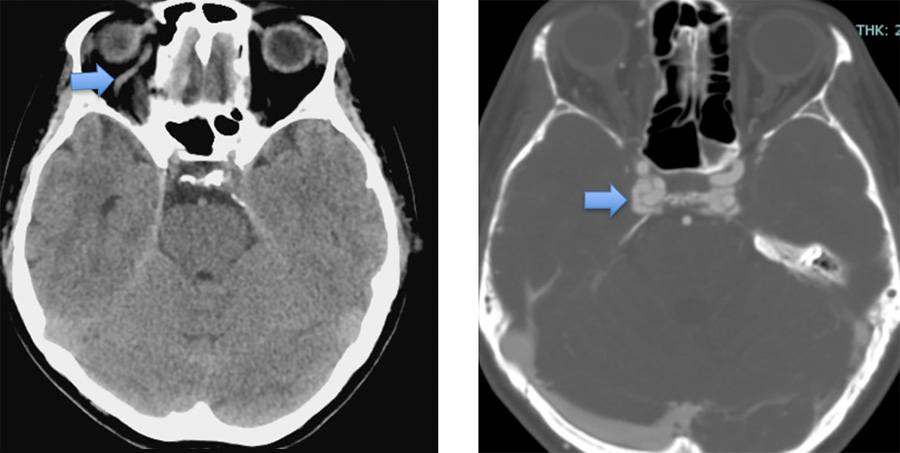

CT findings

Osteodural dural arteriovenous fistula mimicking CCF

Dilated right SOV  /  Cavernous bulging

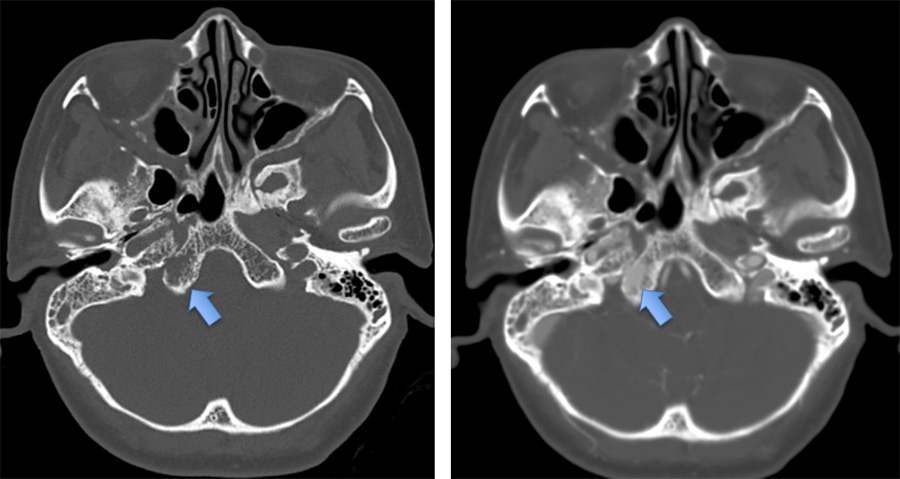

Bone window CT and CTA

Osteodural dural arteriovenous fistula mimicking CCF


Intraosseous vascular lesion on the bone window and corresponding area in CTA

Diagnostic approach

  • Under GA
  • 5F vascular sheath right femoral artery
  • For Diagnostics - 5F vertebral catheter with 0.035” wire

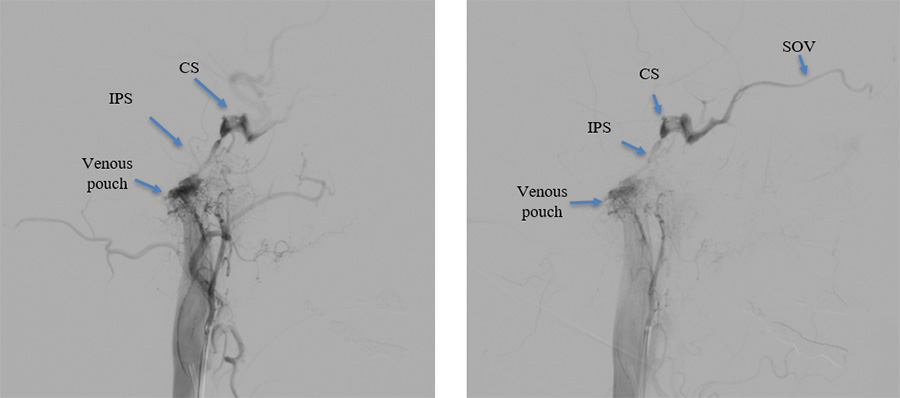

Digital subtraction angiography (DSA)

Osteodural dural arteriovenous fistula mimicking CCF

Digital subtraction angiography (DSA) showed a dural arteriovenous fistula (DAVF) of the right occipital condyle with feeding arteries originating mainly from the neuromeningeal division of the ascending pharyngeal artery.

3D RA

You do not have permission to view this object.
Treatment approach
  • 5F right femoral vein sheath
  • 5F soft-tip with Headway 21 microcatheter (Microvention) & Runthrough microwire (Terumo) in coaxial fashion.
  • Superselection to the venous pouch.
  • Coils - eV3 Concerto fiber detachable coils
    – Helix 12 mm x 30 cm- distal IPS
    – Helix 8 mm x 30 cm, 7 mm x 30 cm, 5 mm x 20 cm- venous pouch

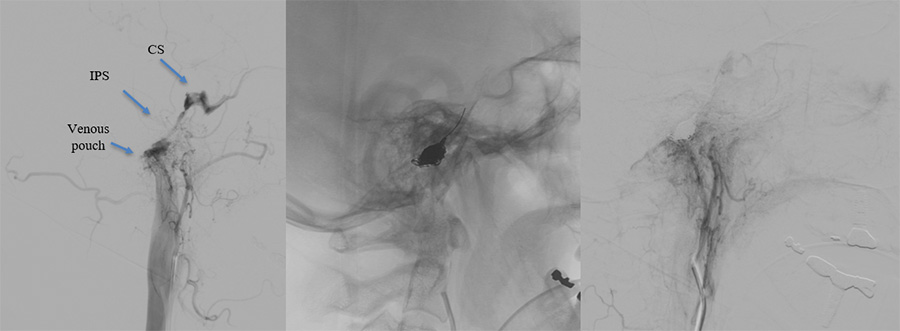

Pre- and post- treatment angiogram - lateral view

Osteodural dural arteriovenous fistula mimicking CCF

Superselection - lateral view /  post-coil embolization - lateral view  /  Complete obliteration of fistula - lateral view

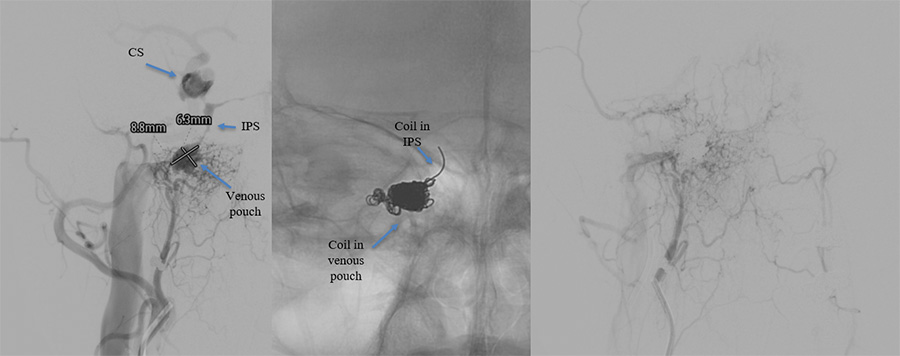

Pre- and post- treatment angiogram - AP view

Osteodural dural arteriovenous fistula mimicking CCF

Superselection - AP view  /   Post-coil embolization - AP view  /  Complete obliteration of fistula - AP view

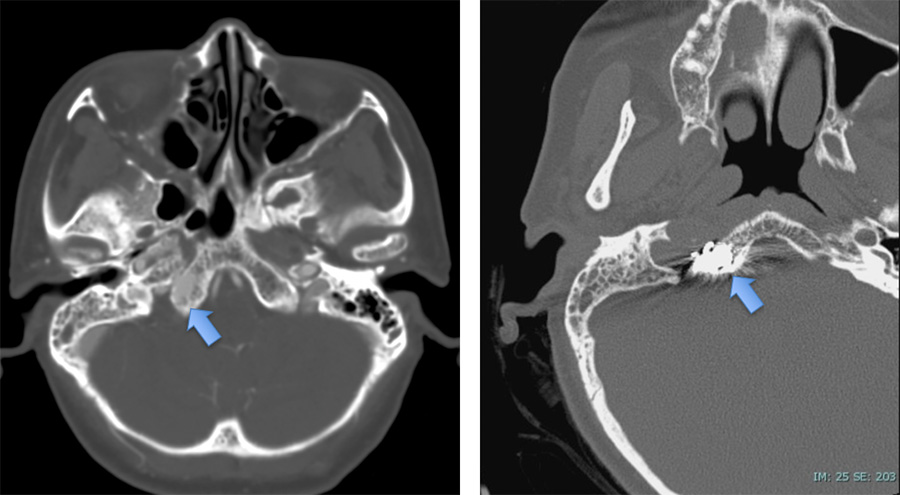

Pre- and Post- treatment - coil mass position

Osteodural dural arteriovenous fistula mimicking CCF
Conclusion
  • Arteriovenous shunts mimicking CCF are rare and can be confusing.
  • The clinical presentation mainly depends on the venous outflow.
  • Occlusion of the most proximal venous pouch is an effective treatment.
  • Transvenous coil embolization is curative and effective when venous excess is available.
