Monorail snare technique for retrieval of stretched coil

Last update on November 28, 2022

Find out how Dr Nancy Chiu Shih Cheng treated a 47-year-old female patient with an aneurysm of the interpeduncular fossa and an arteriovenous malformation (AVM) in the cerebellar vermis.

Case presentation

Patient

  • 47 y/o female patient, acute right limb weakness
  • SAH, IVH, aneurysm of the interpeduncular fossa and AVM in the cerebellar vermis

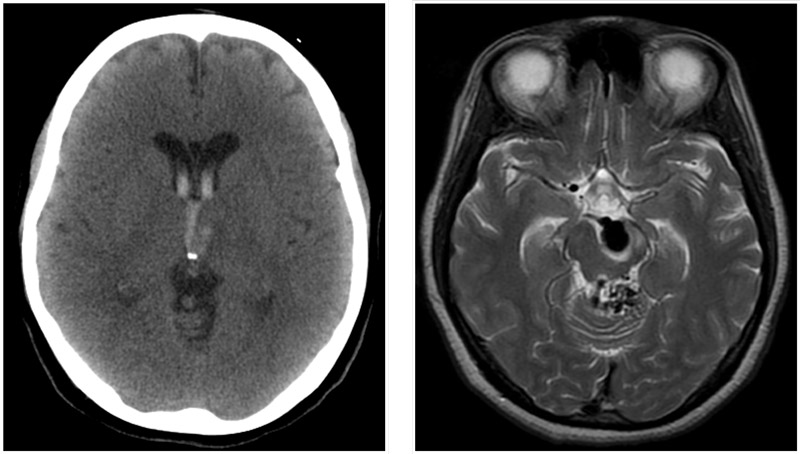

Interpeduncular fossa Aneurysm AVM at cerebellar vermis

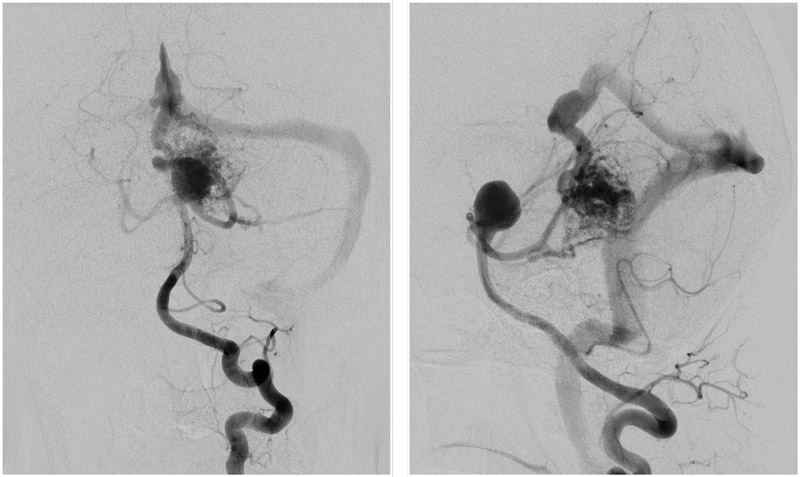

Cerebellar vermis AVM

Left SCA aneurysm / Cerebellar vermis AVM

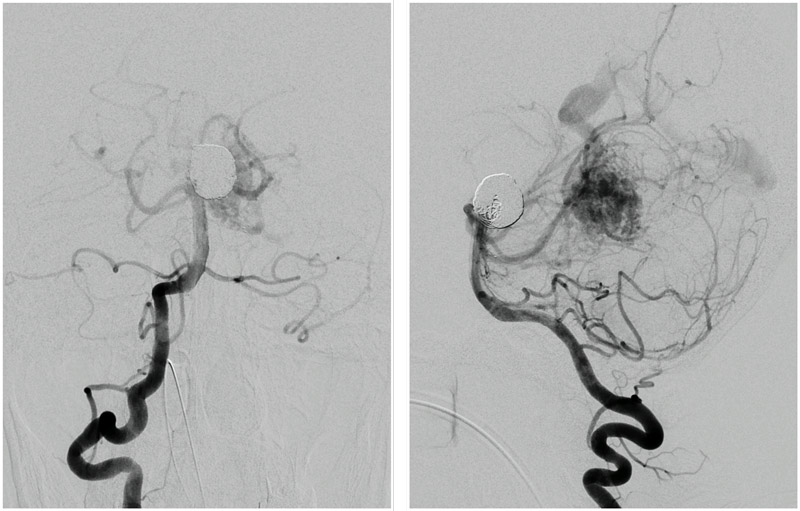

Stent-assisted coil embolization

Stent-assisted coil embolization



Gamma-Knife radiosurgery for AVM

Gamma-Knife radiosurgery for AVM

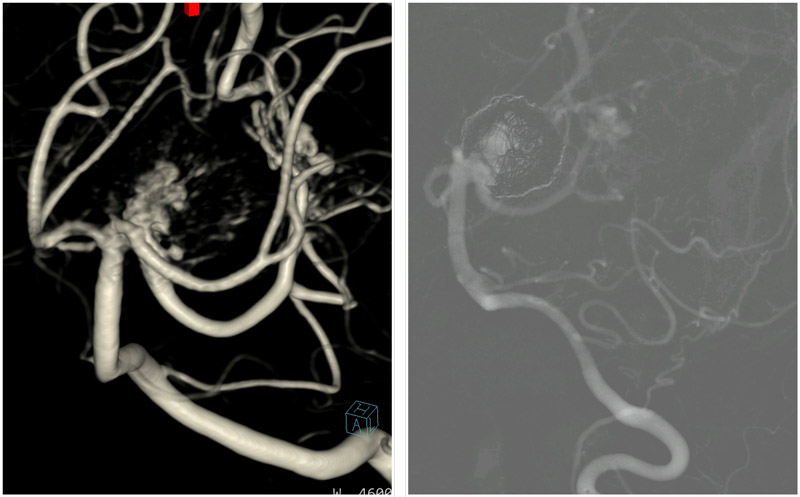

2 years follow-up

2-year follow-up



Under GA coil embolization

  • Envoy DA guiding catheter
  • Headway 17 microcatheter
  • Transend EX soft tip
  • Target coil

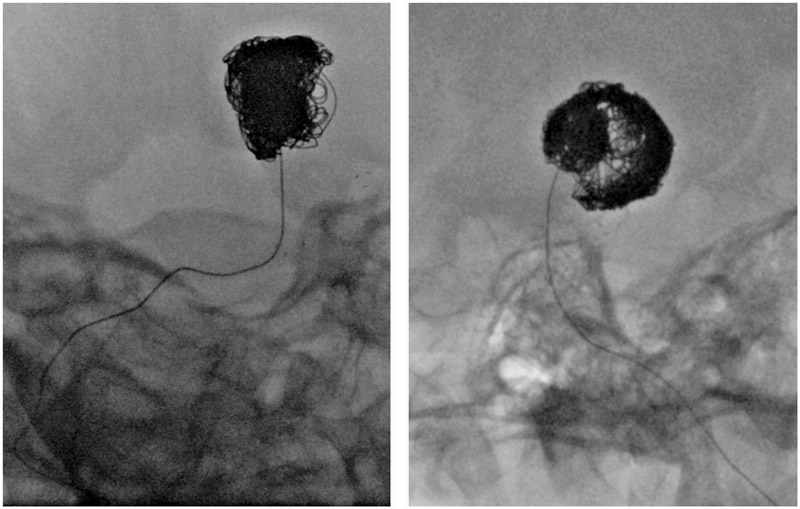

Irremovable coils

Irremovable coils

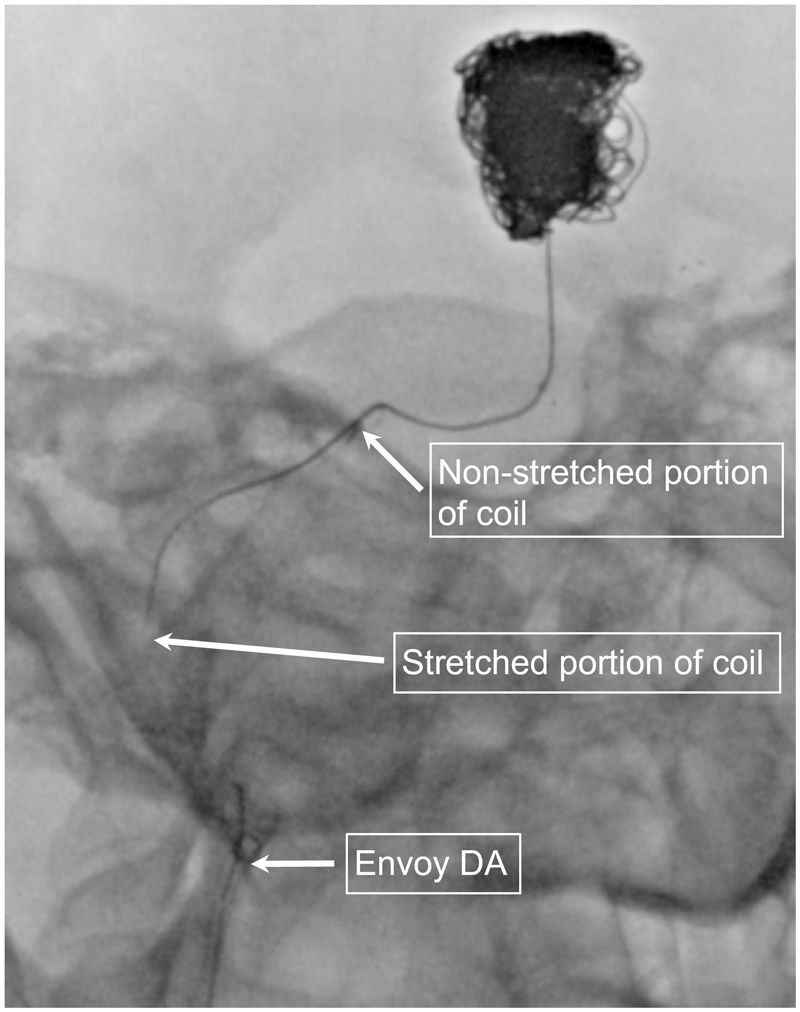

Stretched coil

Stretched coil

Microsnare

Amplatz Goose

Neck snares and microsnares

  • Prowler Plus 0.021”
  • Rebar 18  0.021”
  • XT-27  0.027”
  • Marksman  0.027”
Microsnare

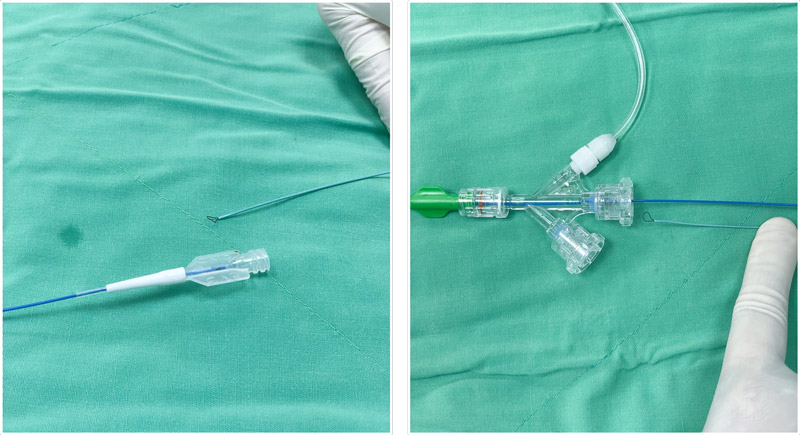

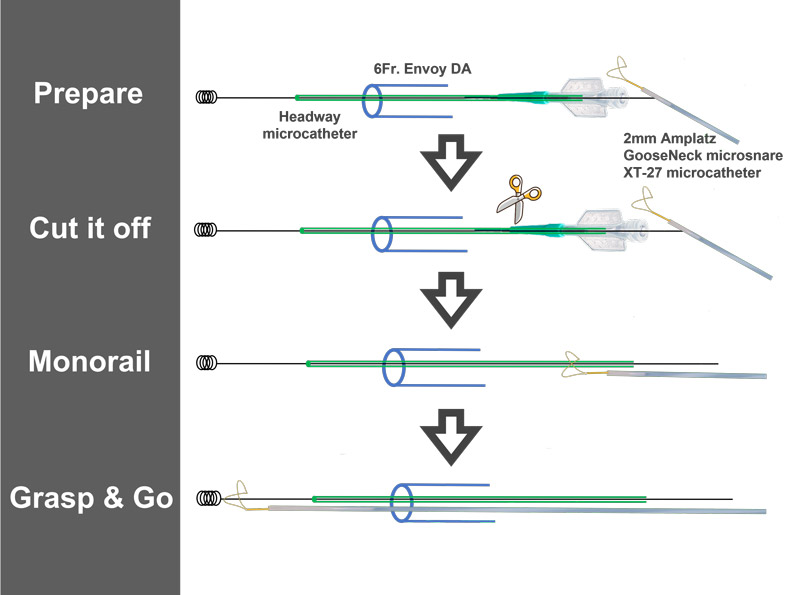

Microsnare “Monorail technique”

Microsnare “monorail technique”

without flash system / with flash system

Without flash system

You do not have permission to view this object.

With flash system

You do not have permission to view this object.

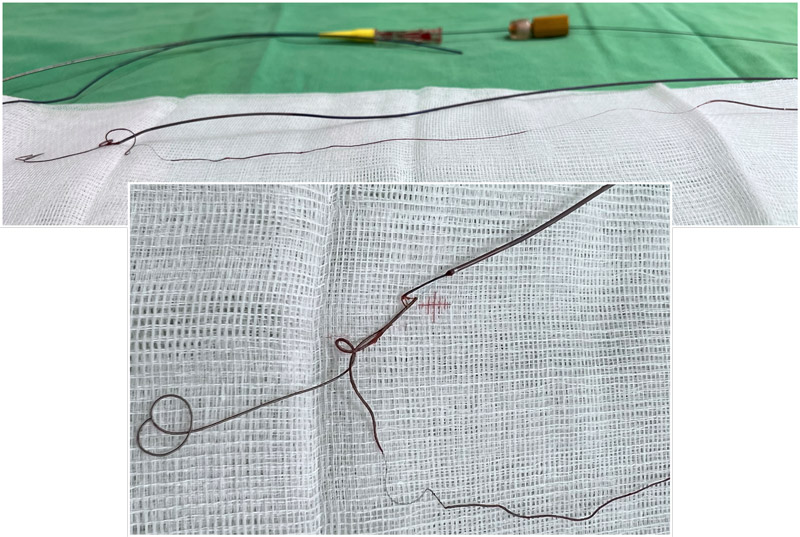

Monorail snare technique for retrieval of stretched Coil
You do not have permission to view this object.



Monorail snare technique for retrieval of stretched Coil
You do not have permission to view this object.

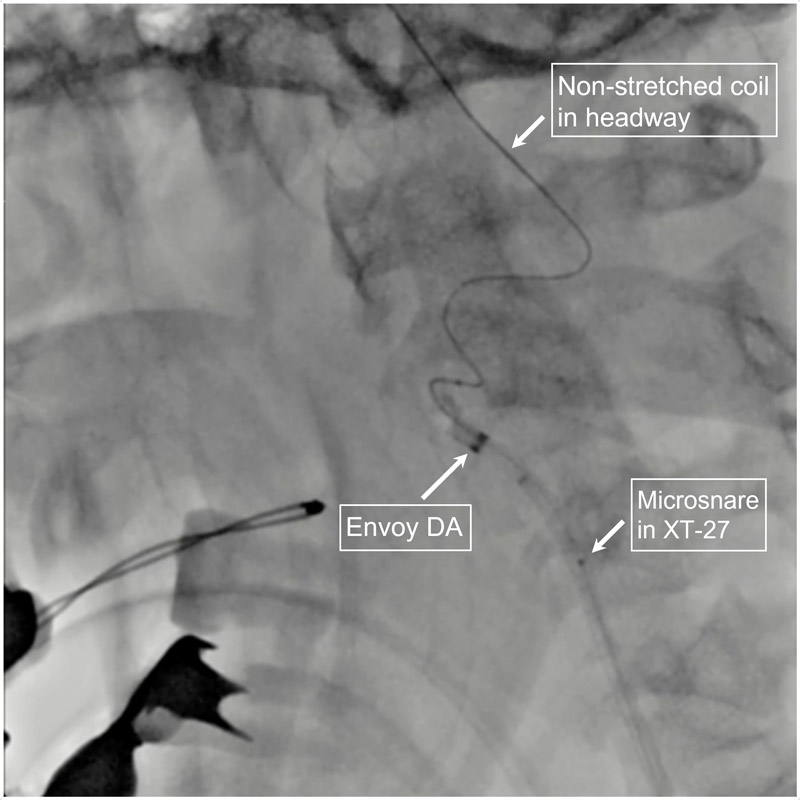

Monorail snare technique for retrieval of stretched Coil
Monorail snare technique for retrieval of stretched Coil

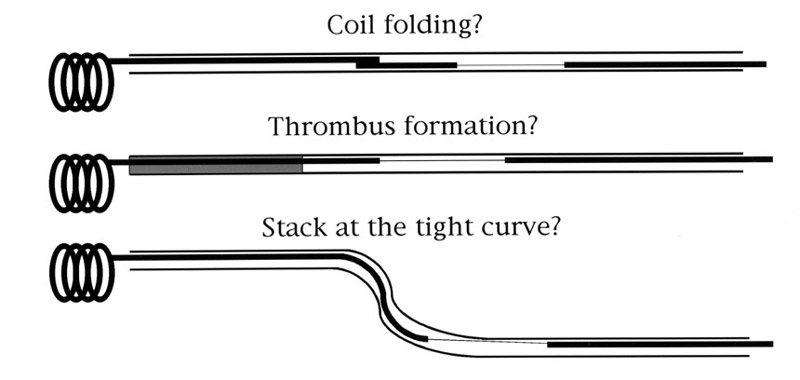

Causes of coil trouble

Diminishing “one to one motion” is the earliest alarm

Take home messages
  • Coil stretching could result in difficult embolization, thromboembolic event or parent vessel occlusion
  • Microsnare with monorail technique can be a safeguarding lasso modality for undesirably stretched or prematurely detached coil that still remained in the delivery microcatheter
  • Capture the unstretched portion of the coil close to the aneurysm
