Ruptured serpentine ACA aneurysm & parent artery occlusion

Last update on November 28, 2022

Find out how Dr R Anand treated a 31-year-old male patient with an SAH in the anterior interhemispheric region.

Case presentation

Patient presentation

  • 31-year-old male patient, manual worker
  • suffering from headaches for a few weeks
  • sudden loss of vision in the right eye for a week
  • MRI revealed an SAH in the anterior interhemispheric region



Diagnostic MRI

Diagnostic MRI

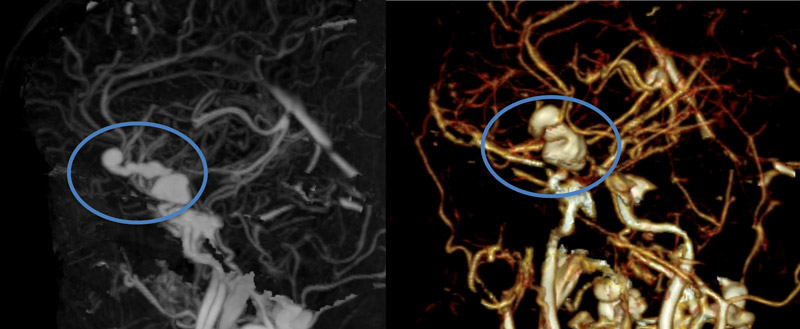

CT angio

CT angio

Next day, early morning

  • Seizures
  • Poor sensorium, GCS 8/15
  • GCS improved (11/15) after giving anti epileptics
  • Left hemiplegia noted
  • Kept intubated



Repeat CT

Repeat CT

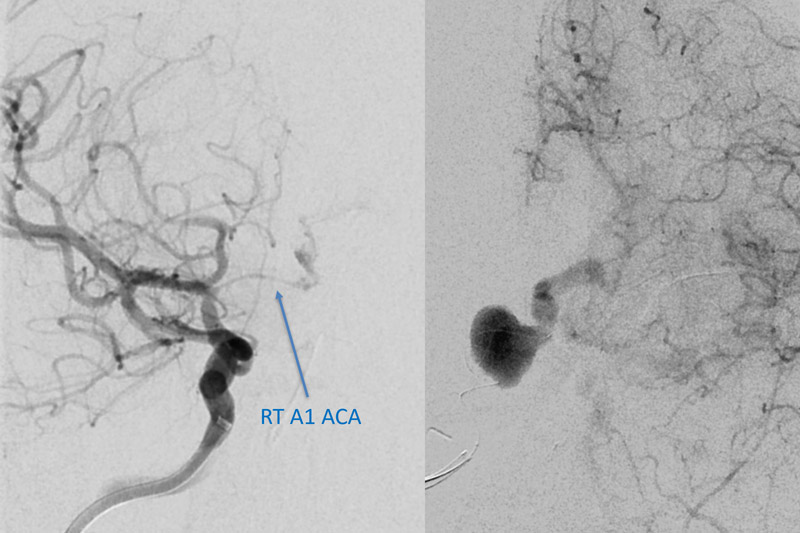

DSA

DSA

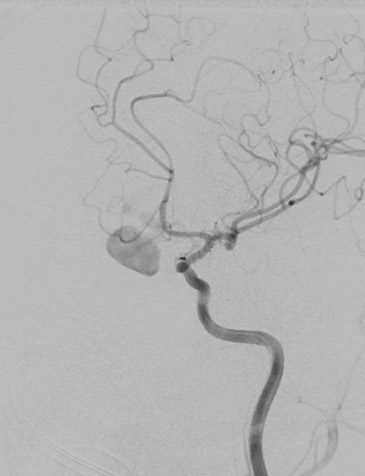

angio

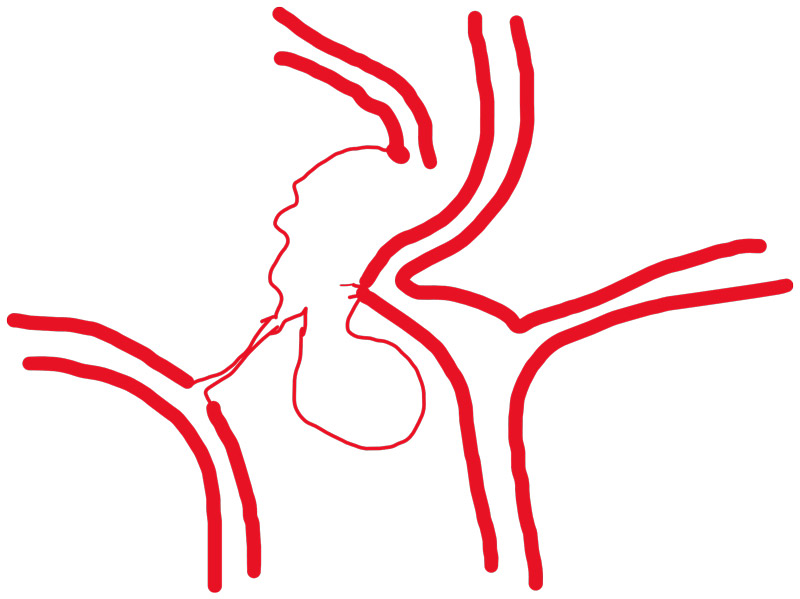

schema
angio
  • Extremely poor immigrant patient
  • His place of origin is 5 days away by ambulance
  • Cannot afford air ambulance
  • Government institutes, 7 hours drive
  • Lack of intensive care unite beds in government institutes
Plan

Parent artery occlusion with coils

  • Enter from left ICA, through Acom, go distally, and the coil behind, from A2-A3 junction,
  • Adequate coil packing to prevent filling across Acom and retrograde from distal ACA
  • Finally, once the bag is coiled, enter the hypoplastic right A1 ACA from right ICA and occlude it

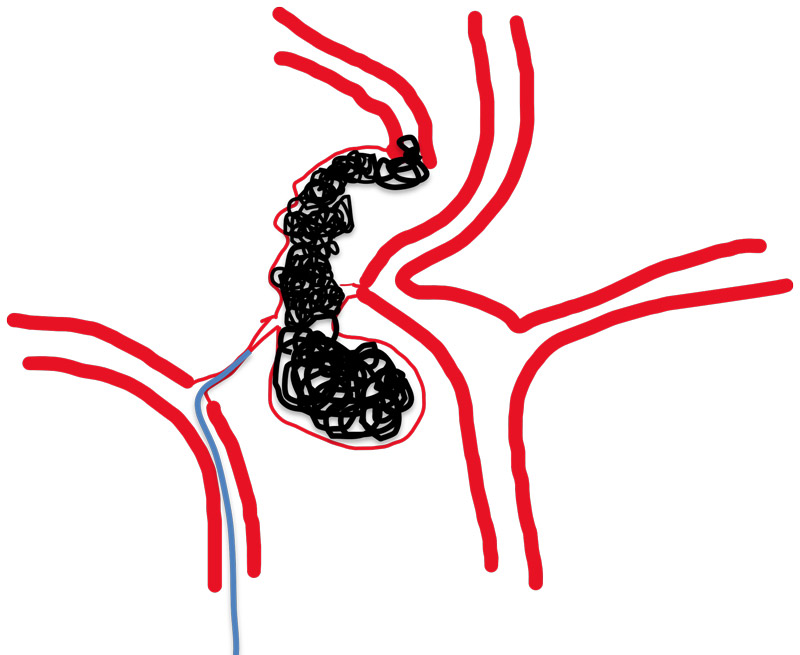

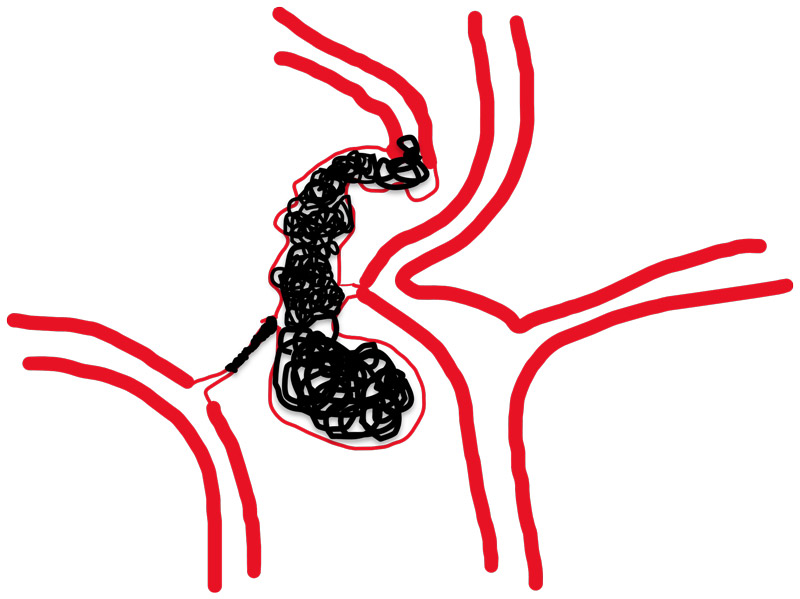

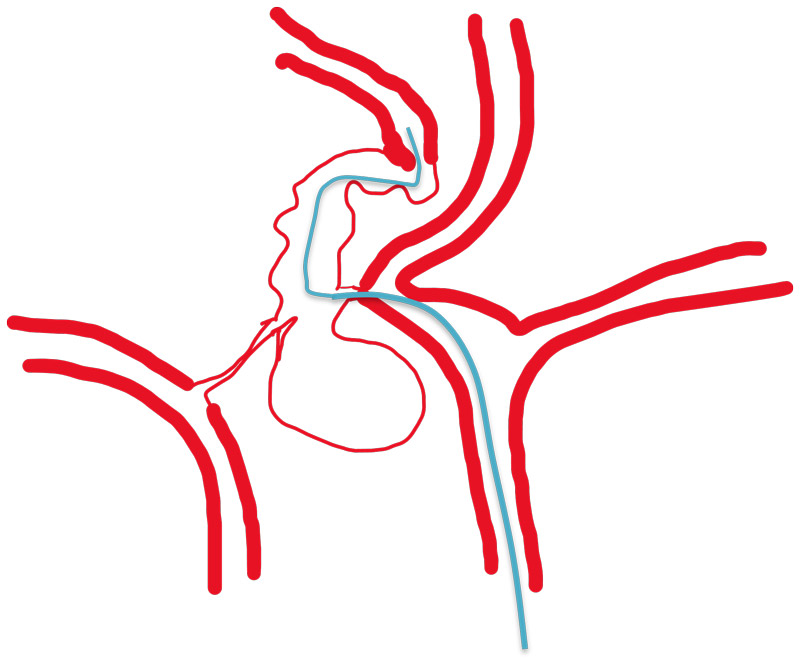

Plan PAO
Plan PAO
Plan PAO
angio

Issue

  • Difficulty entering the Acom from the left side
  • Even after pumping nimodipine
  • Entry of the wire remained impossible
  • After several attempts, a balloon was inflated in A2 ACA left side to direct wire into Acom, but it failed too



Change of plan

  • Coming from right hypoplastic A1 ACA (3 mg nimodpine in right A1 ACA, no change in caliber)
  • Control angio from left side (as expected, when microcath entered the right ACA, aneurysm filling from right side stopped)

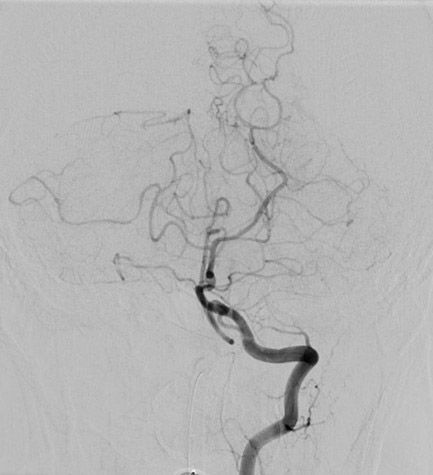

angio

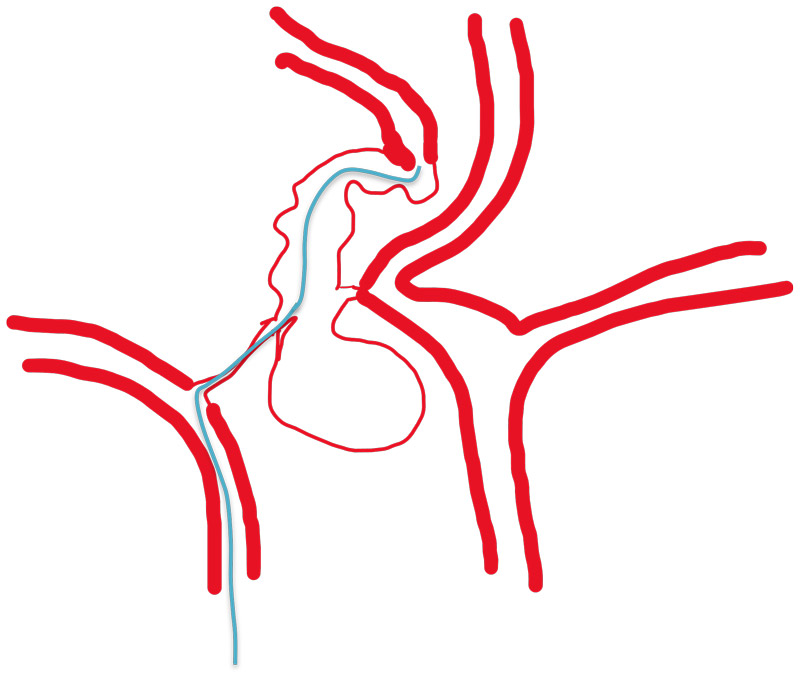

come from right hypoplastic A1 ACA

It is impossible to navigate further and enter the A2-A3 junction



  • Started to coil from the distal end of the aneurysm backwards
  • Control angios from left side to see Acom filling
  • Control angio from ipsilateral ICA to see if there is any filling posterior cerebral collaterals via Pcom)

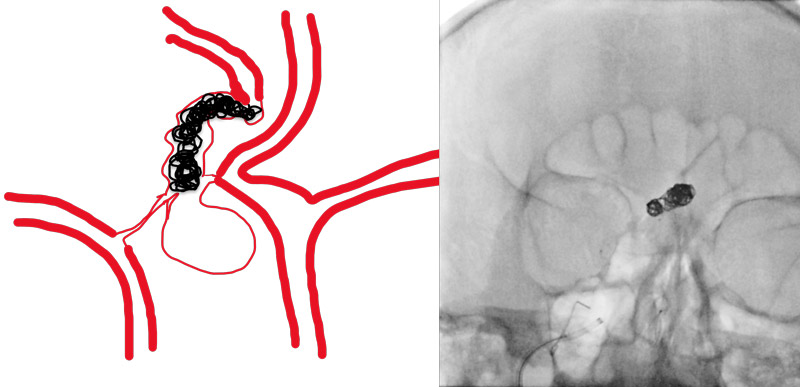

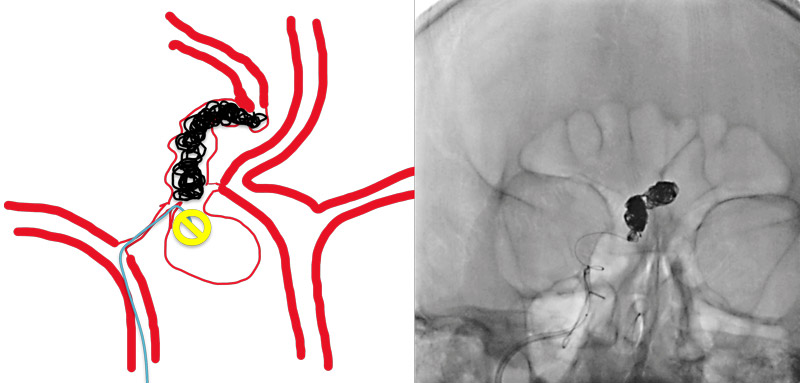

coiling and angio
coiling and angio



  • Entry into the bag pointing downwards was not successful
  • Check angio showed stasis in the bag
  • There was no filling from Acom



angio showed stasis in the sac

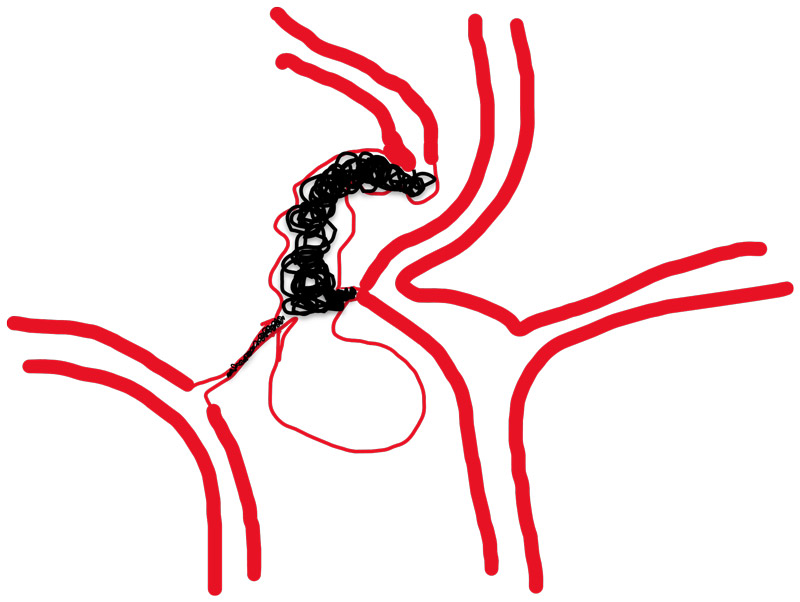

Rt A1 was coiled

Right A1 was coiled

Post procedure
  • Patient remained intubated for 24 hrs
  • Extubated
  • Left lower limb power 0/5
  • Continued steroids and anti-edema measures
  • Hemodynamic augmentation (nimodipine, fluids and IA BP monitoring)



Around day 5

  • Developed drowsiness
  • For financial reasons, had to be transferred to a public teaching hospital after re-intubation, after discussion with a consultant neurosurgeon

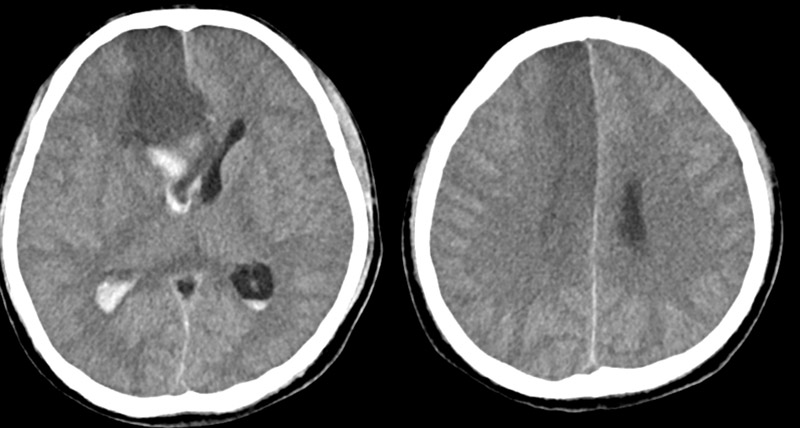

Developed drowsiness



  • Craniectomy or EVD not done, nor spasm assessment, for reasons outside the hospital
  • Died after 3 days in intensive care in an outside hospital
