Recanalization of an ACM-CTO after 2 years of occlusion

Last update on November 28, 2022

Find out how Dr Zhang Xiaoxi performs MCA-CTO recanalization after two years of occlusion on a 46 year old patient.

Case presentation
  • A 46-year-old male patient
  • Presentation: sudden aphasia and weakness of the left limb
  • Medical history: on 13 September 2020, the patient suffered sudden aphasia and left limb weakness for 10 minutes, without any significant inducing factor. The symptoms subsequently resolved and no similar symptoms occurred. CTA showed an MCA stenosis at the local hospital. But the patient ignored the physician’s advice.
  • Diabetes was diagnosed for 5 years.

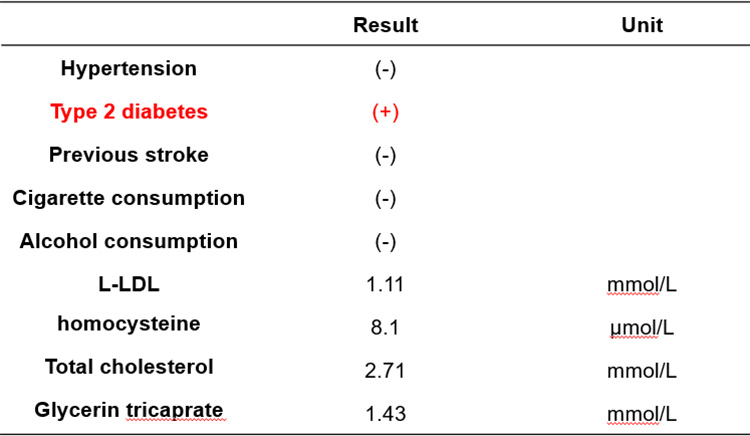

Risk factors

Recanalization of MCA-CTO after 2 years occlusion

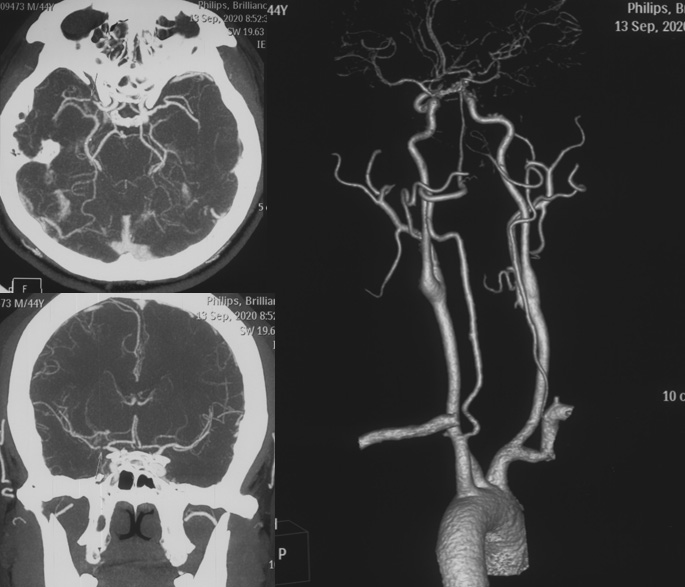

CT angiography, 2020-9-13, local hospital

Recanalization of MCA-CTO after 2 years occlusion

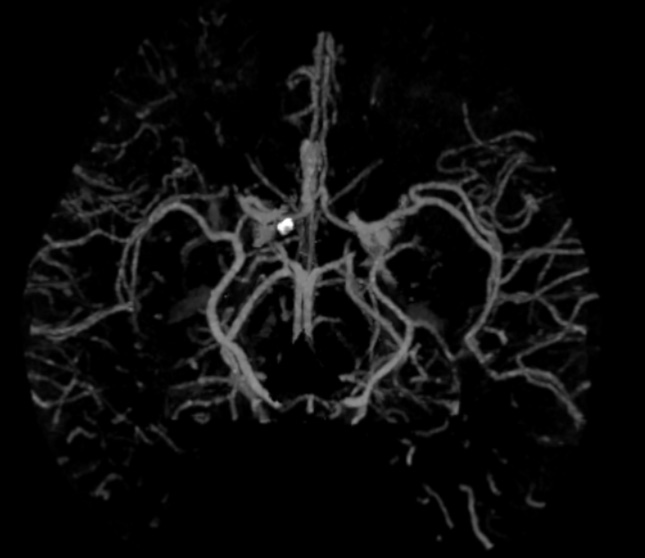

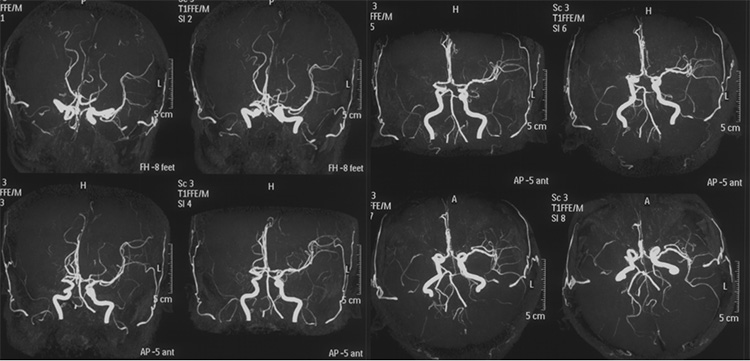

Follow-up, 2021-10-12

Recanalization of MCA-CTO after 2 years occlusion

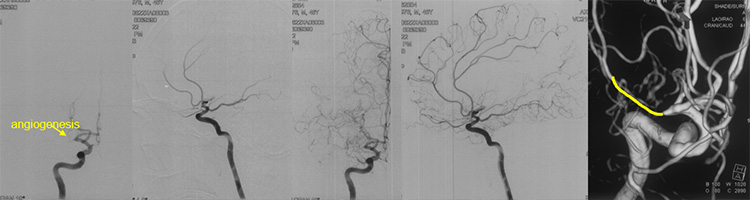

R-MCA occlusion

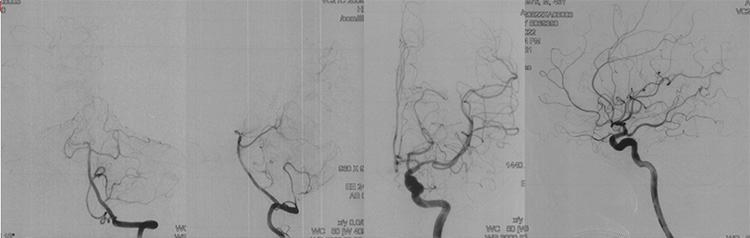

DSA, 2022-07

You do not have permission to view this object.
You do not have permission to view this object.
You do not have permission to view this object.
You do not have permission to view this object.
You do not have permission to view this object.

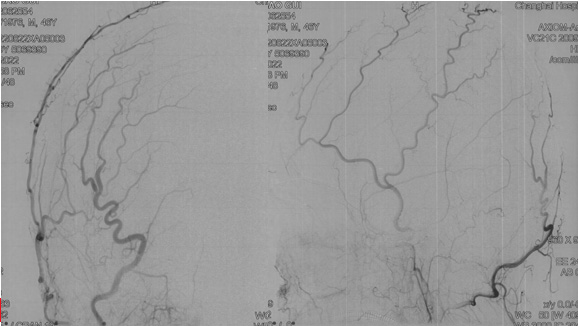

R-MCA occlusion, with satisfactory vessel bed distal to the occlusion

Recanalization of MCA-CTO after 2 years occlusion



You do not have permission to view this object.

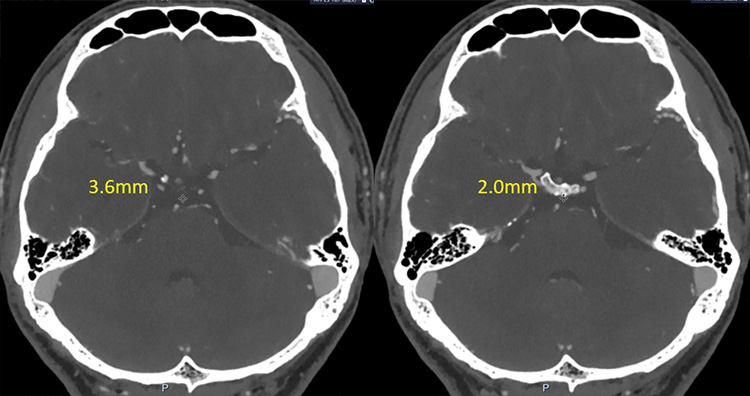

R-MCA occlusion, with satisfactory vessel bed of distal to occlusion

The shortest length of occlusion was 2.0 mm

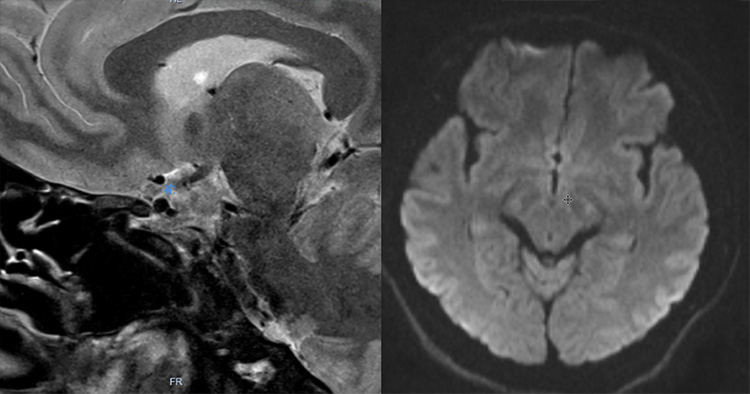

High-resolution MRI, 2022-08-17

Recanalization of MCA-CTO after 2 years occlusion

No enhanced vessel wall signal

You do not have permission to view this object.
Endovascular treatment



Recanalization of MCA-CTO after 2 years occlusion
Recanalization of MCA-CTO after 2 years occlusion



Recanalization of MCA-CTO after 2 years occlusion



Recanalization of MCA-CTO after 2 years occlusion
Recanalization of MCA-CTO after 2 years occlusion

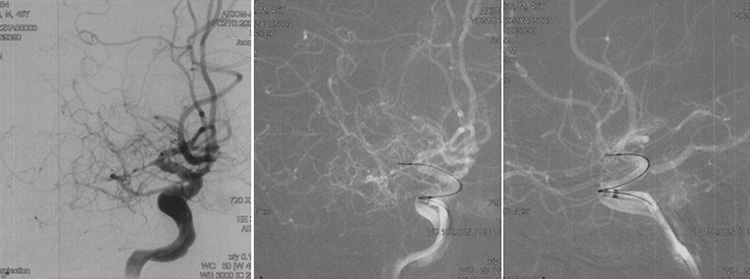

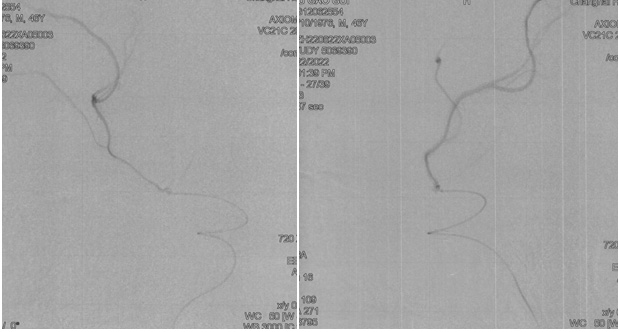

The true lumen was easily found

Recanalization of MCA-CTO after 2 years occlusion
Recanalization of MCA-CTO after 2 years occlusion

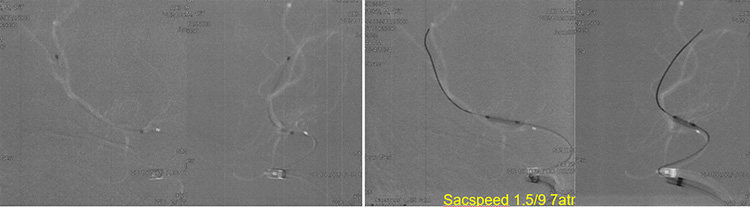

Balloon dilation was performed

Recanalization of MCA-CTO after 2 years occlusion

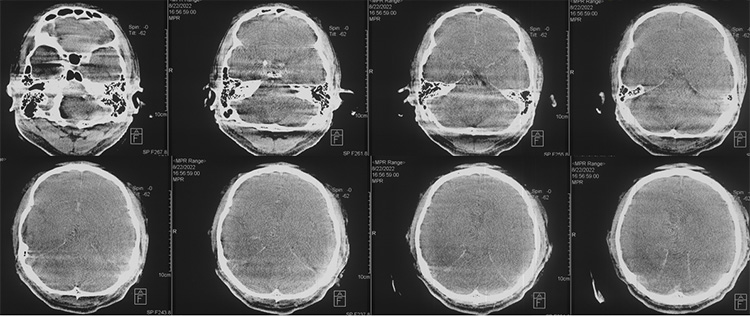

CT showed no hemorrhagic transformation

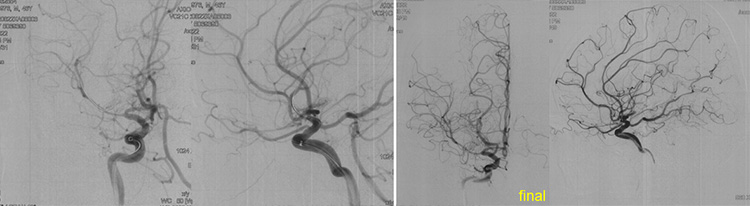

Recanalization of MCA-CTO after 2 years occlusion

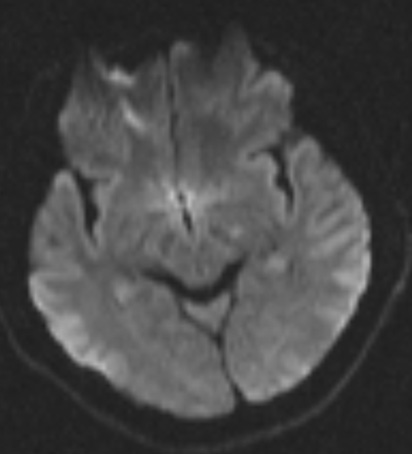

NIHSS = 0, no focal infarction observed

Conclusion
  • Careful selection of the chronic total occlusion (CTO) using high-resolution CTA and MRI facilitates the endovascular treatment procedure.
  • Even when occluded for more than a year, MCA could also be recanalized without complication.
  • A short occlusion length, a satisfactory vessel bed distal to the occlusion site and the absence of vessel wall enhancement are the keys to recanalization.
  • High-resolution MRI showed a stable occlusion with no evidence of inflammation, bleeding or calcification.
