Prolapsing flow diverter stent in a giant aneurysm

Last update on November 28, 2022

Find out how Dr Deshmukh Narayan treated a 30-year-old female patient with a prolapsing flow diverter stent in a giant aneurysm.

Case presentation

Clinical background

  • 30-year-old female patient
  • left retro-orbital pain
  • diplopia - horizontal, binocular
  • examination- left 6th nerve palsy, 3rd, 4th ,5th cranial nerves normal, fundus - normal
  • MRA - giant left paraclinoid aneurysm

Management

  • angiography and FD stent
  • equipment:
    • triple access - 6F sheath (ballast)
    • 6F guiding catheter (fargomax)
    • 021 microcatheter (phenome)
    • 014 microwire (traxcess)
    • flow diverter (pipeline with shield technology 4 x 30 mm)

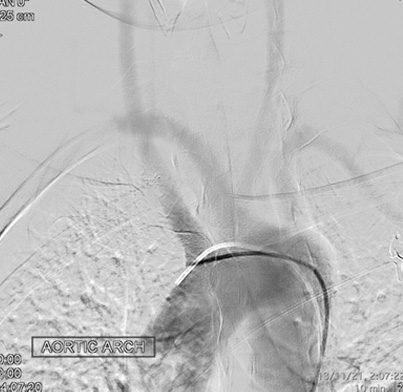

Aortic arch

prolapsing flow diverter stent in a giant aneurysm

- anmolous arch
- right to left arteries - right CCA, left CCA, right subclavian, left subclavian
- right VA from right CCA

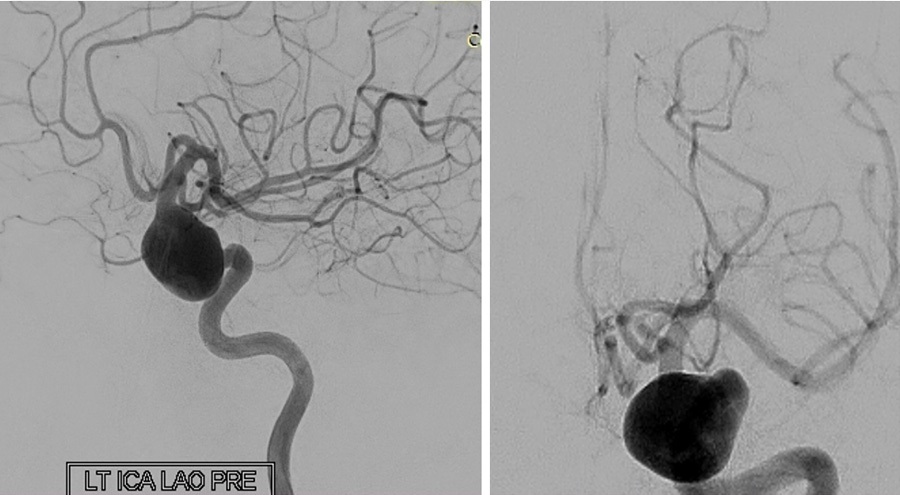

LT ICA LAO PRE

prolapsing flow diverter stent in a giant aneurysm

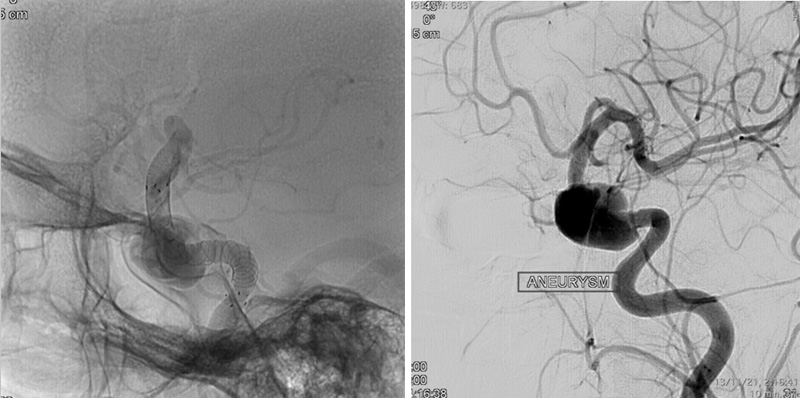

giant aneurysm, paraclinoid segment

25 mm x 15 mm with 15 mm neck bleb



RT CCA

prolapsing flow diverter stent in a giant aneurysm

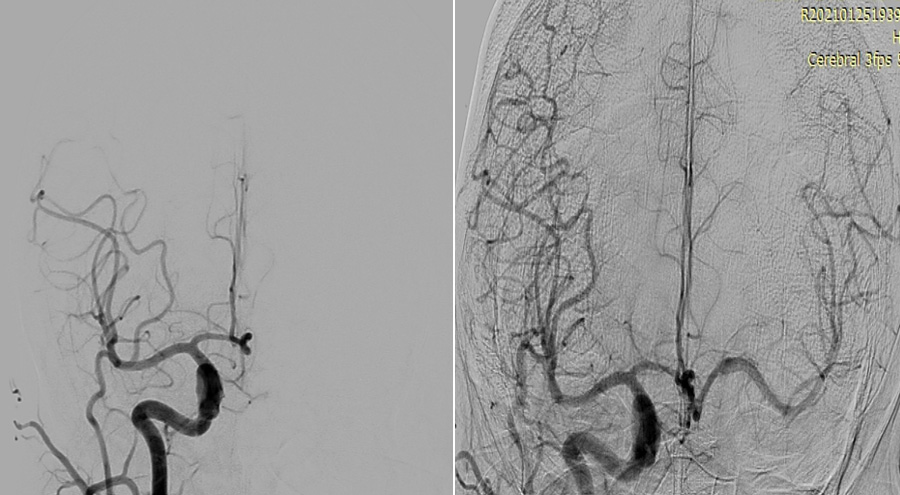

Pre-procedure - towne                                         Cross compression, good cross flow

prolapsing flow diverter stent in a giant aneurysm

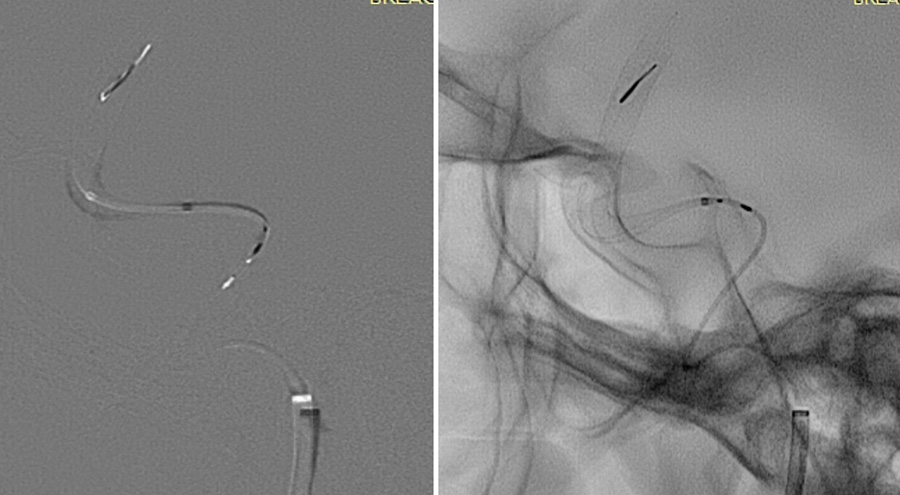

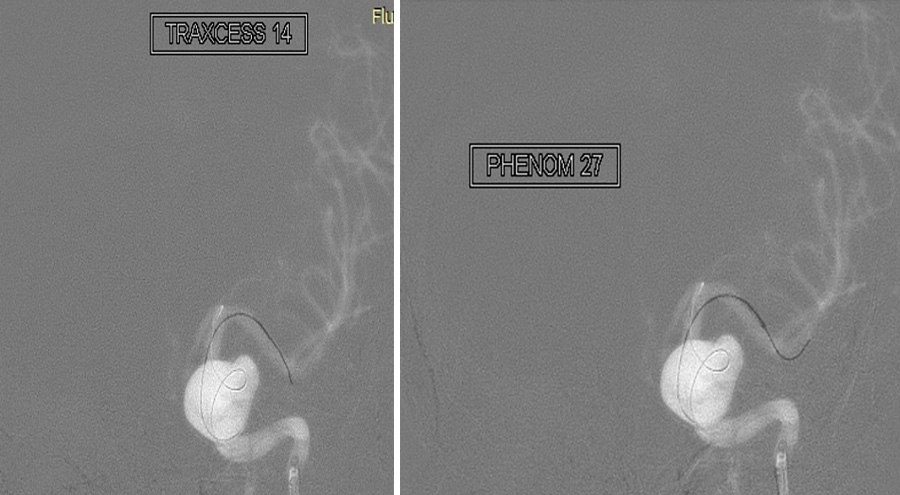

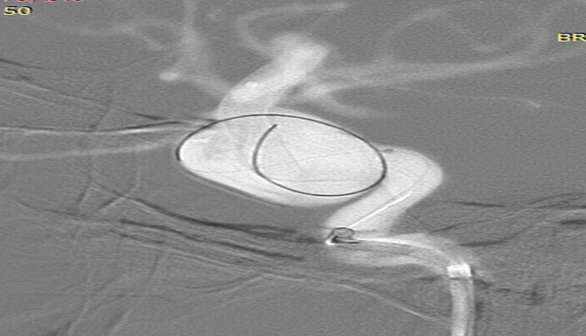

Microwire and microcatheter through the aneurysm

prolapsing flow diverter stent in a giant aneurysm

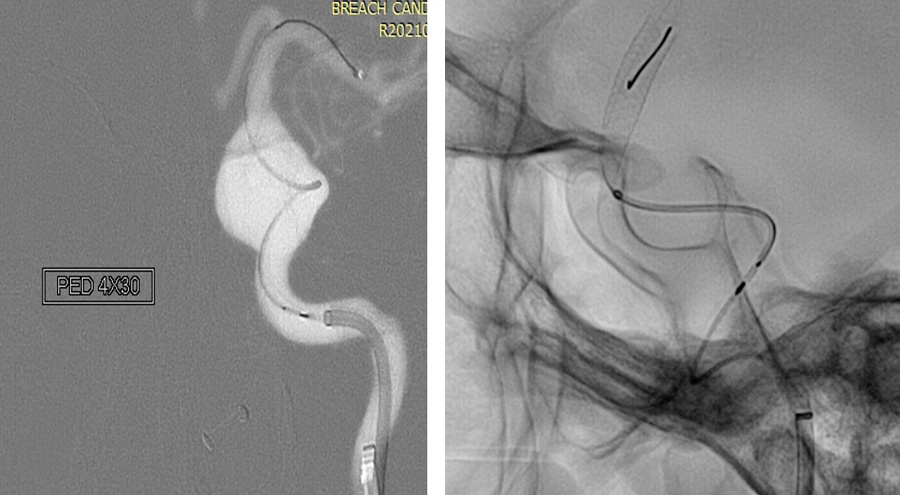

Pipeline with shielding technology 4 x 30 mm stent flow diverter partially deployed

prolapsing flow diverter stent in a giant aneurysm

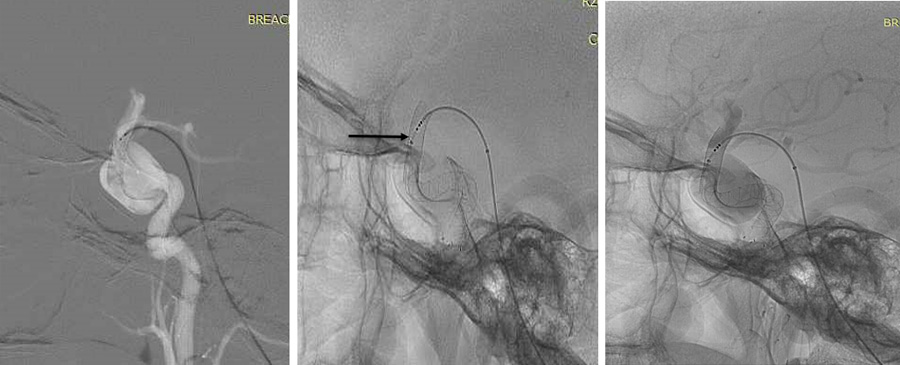

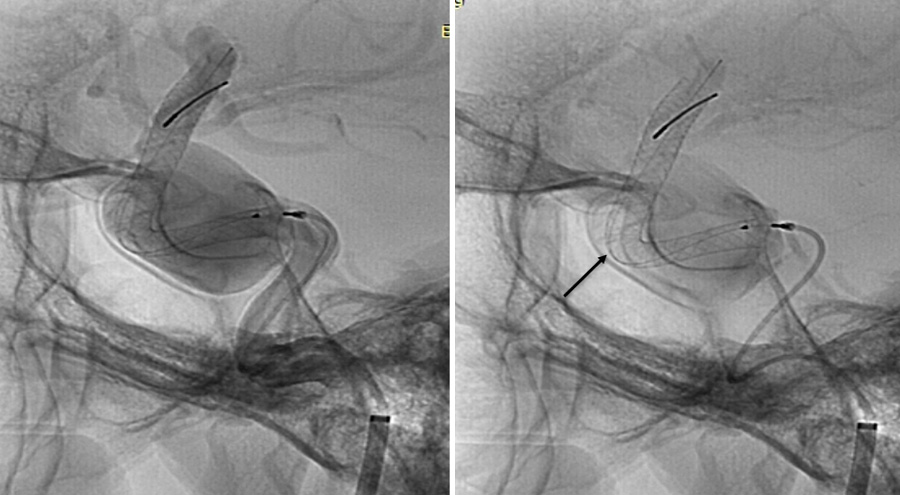

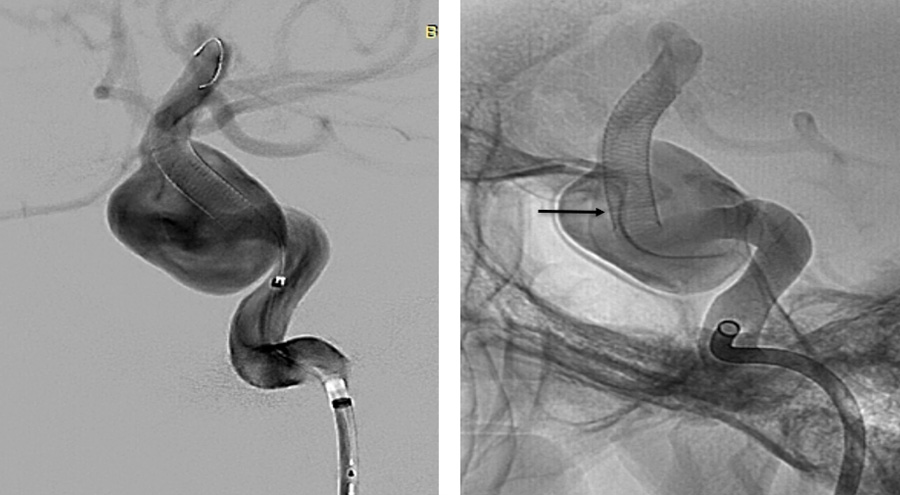

FD stent bulging in aneurysm

prolapsing flow diverter stent in a giant aneurysm

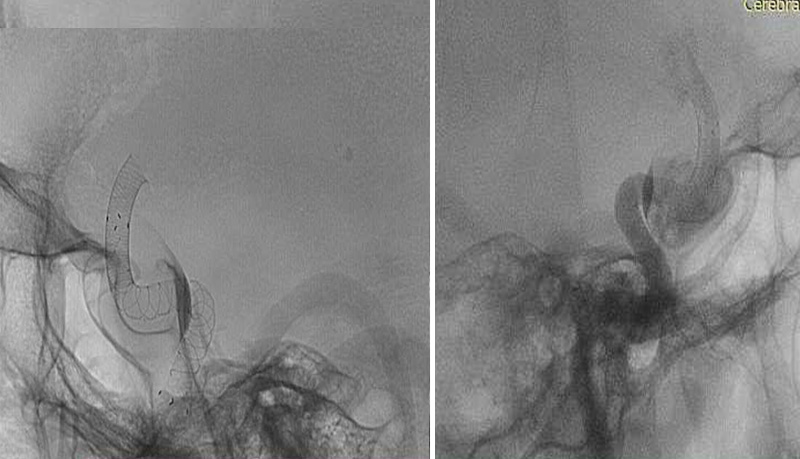

FD stent prolapsed in aneurysm while retrieving wire

prolapsing flow diverter stent in a giant aneurysm

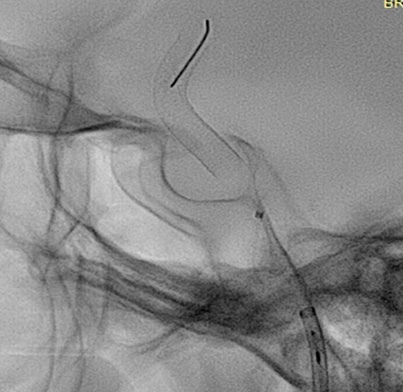

Foreshortened FD and straightening

prolapsing flow diverter stent in a giant aneurysm

Post foreshortening

prolapsing flow diverter stent in a giant aneurysm

Difficulty in passing the microwire through FD stent

Approach via Pcomm, left VA

prolapsing flow diverter stent in a giant aneurysm

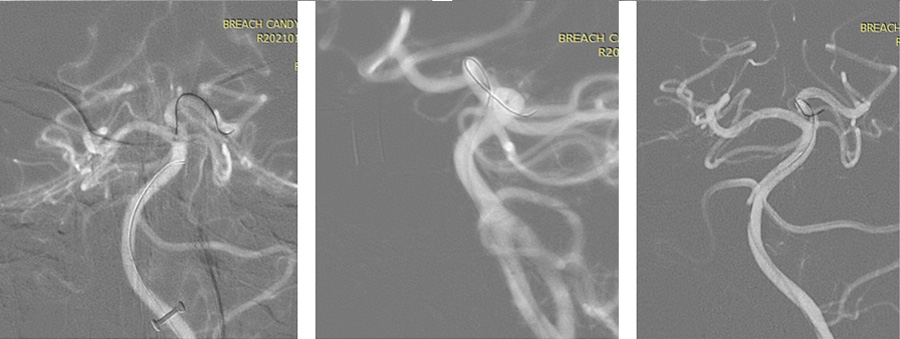

Distal end of FD at Pcomm origin / Pcomm microwire navigation

prolapsing flow diverter stent in a giant aneurysm





Difficulty in entering ICA

Equipment:

  • 6F guiding catheter (fargomax)
  • 027 microcatheter (headway)
  • 014 microwire (traxcess)



prolapsing flow diverter stent in a giant aneurysm
prolapsing flow diverter stent in a giant aneurysm

Advancement of the microcatheter, microwire through the FD stent

prolapsing flow diverter stent in a giant aneurysm

Advancing the microcatheter through the FD

prolapsing flow diverter stent in a giant aneurysm

Telescoping new FD stent
Fred FD - 4.5 x 45 mm

prolapsing flow diverter stent in a giant aneurysm

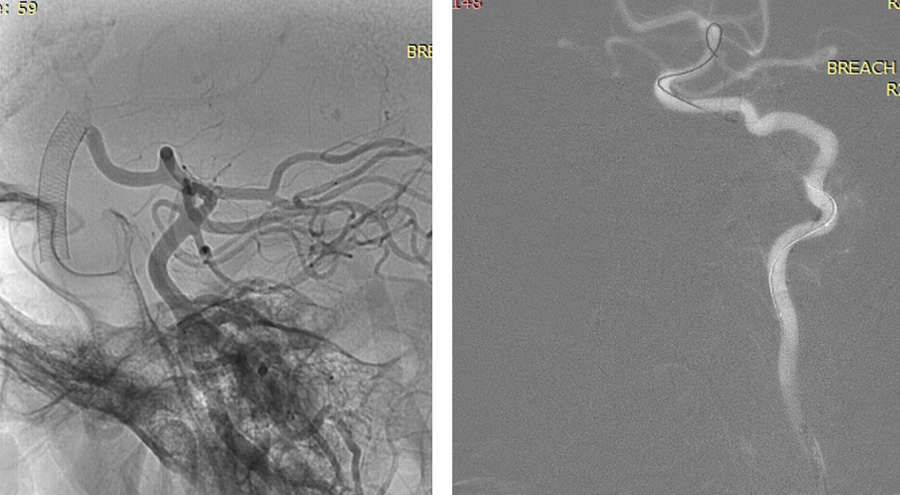

FD stents from the supraclinoid ICA (at the origin of Pcomm) to the straight segment of the petrous ICA

prolapsing flow diverter stent in a giant aneurysm

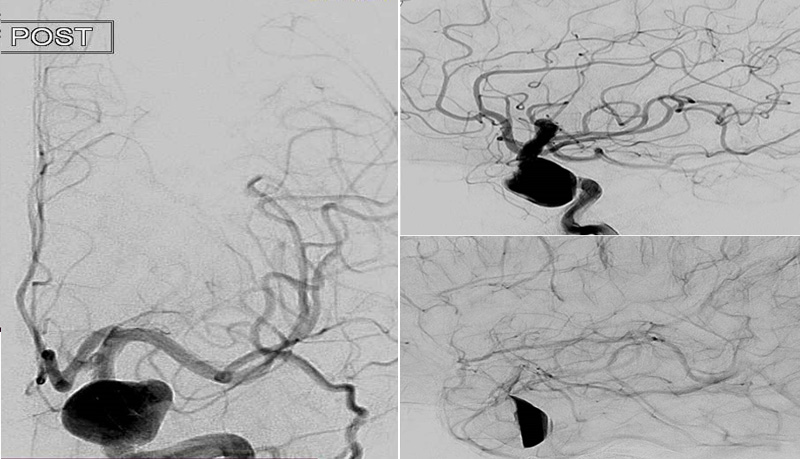

Post-procedure - left CCA - stasis in the aneurysm

prolapsing flow diverter stent in a giant aneurysm

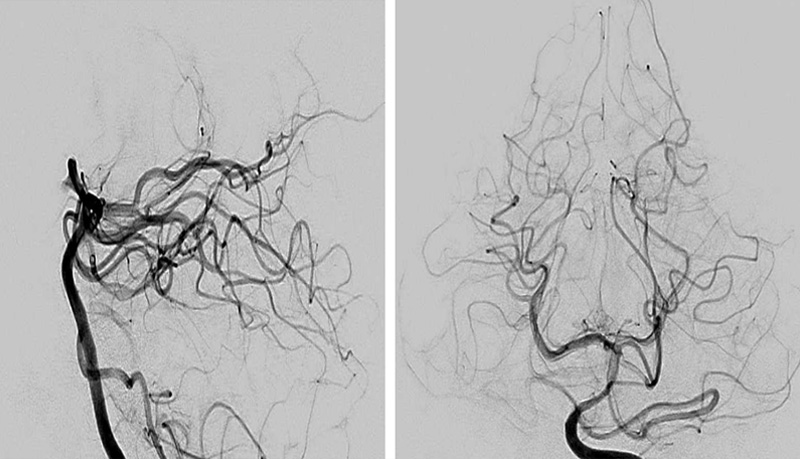

VA left lateral and towne

Follow-up
  • no deficit post-procedure
  • uneventful hospital stay
  • discharge - aspirin 75 mg daily, Ticagrelor 90 mg daily
  • follow-up 3 months later- diplopia resolved, no headaches
  • follow-up 11 months later - DSA
  • clinically asymptomatic
prolapsing flow diverter stent in a giant aneurysm

Left lateral CCA - reduced size aneurysm, partially filled, FD stents in place

prolapsing flow diverter stent in a giant aneurysm

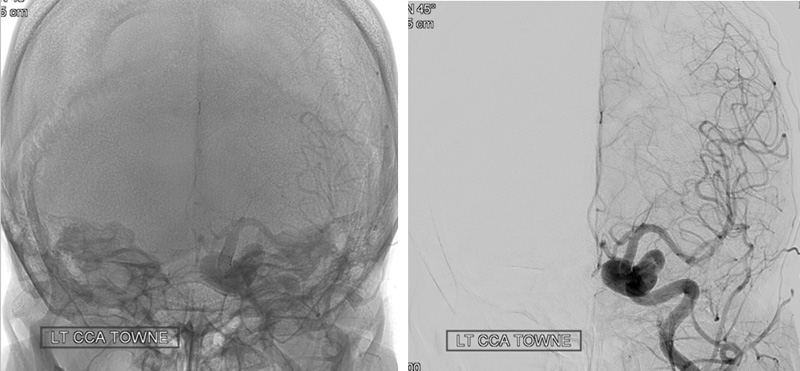

Left CCA towne





hypertrophic endothelization
