New Pipeline™ Vantage with Shield technology treatment with RIST™ radial system

Last update on October 7, 2021

Find out how Riitta Rautio (Turku University Hospital, Finland) treated a 36-year-old female patient suffering from Supraclinoid aneurysms on both carotid internal arteries.

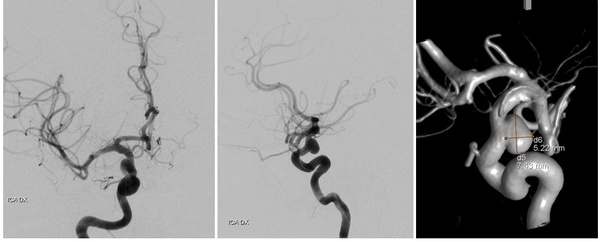

CASE PRESENTATION

  • 36-year-old female patient.
  • MRI was performed due to dizziness.
  • Supraclinoid aneurysms on both carotid internal arteries were discovered. The one on the right was bigger.
  • Previous MRI in 2014 with no aneurysm findings.



Case Presentation



TREATMENT STRATEGY

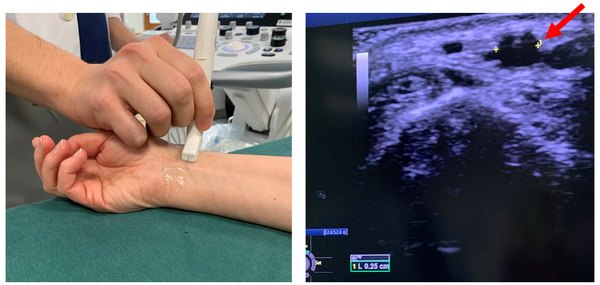

  • Radial artery size checked with ultrasound
TreatmentApproach



  • Peri-arterial tissue was infiltrated with 1-2 ml 1% Lidocaine.



Guidewire

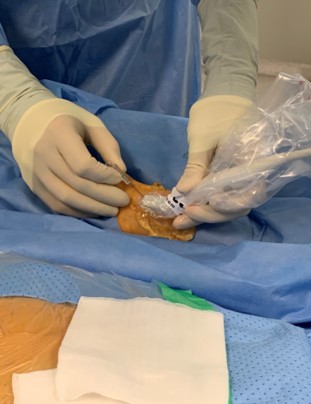

  • Guidewire advance was well visualized in ultrasound
  • 20 G needle / 0.025 hydrophilic guidewire / 7F Glidesheath isheath (Terumo)
  • ”Antispasm” cocktail after insertion of the sheath: Verapamil (2.5 mg) and Heparin (2500 IU)



You do not have permission to view this object.



TECHNIQUE WITH RIST™

  • Medtronic RIST™ 5 Fr SIM2 130cm select catheter is telescoped inside a Medtronic RIST™ 079 100cm guide catheter with a Terumo 0.035 wire.
  • The select catheter is hooked at the CCA origin and 079 RIST™ guide is advanced directly into the petrous ICA.
  • Navien 058 distal access catheter was advanced over a 027 Phenom microcatheter with a Synchro (Stryker) guidewire.





You do not have permission to view this object.





  • Easy access to the right common carotid is with the select catheter.

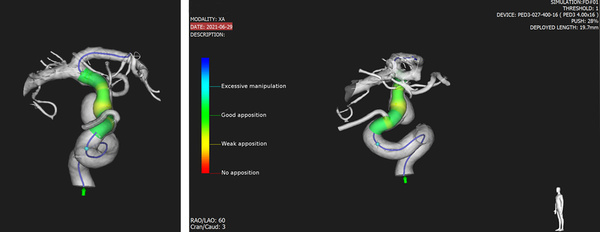

  • Sim&Size simulation was performed using the acquired 3D data.
  • Pipeline™ Vantage 4x16 mm was chosen.
  • The patient had started Prasugrel 5 mg and ASA 100 mg prior to the procedure.
  • B-MPADP was 30.



Sim&Size simulation

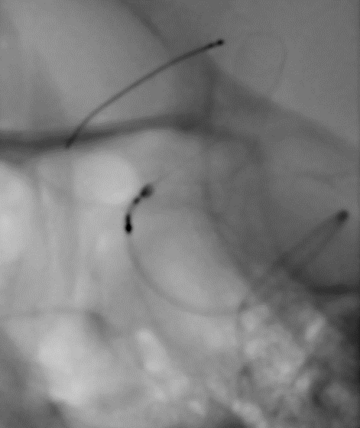

  • Roadmap saved image during the opening of the device. Vantage is well visualized.
  • The opening was performed mostly by pushing the device out of the microcatheter.



Roadmap



  • Video shows the easy and reliable opening of the proximal part of the Pipeline™ Vantage Shield.



You do not have permission to view this object.



  • After opening the device, the Phenom 027 microcatheter is advanced over the pusher wire through the device to achieve full wall apposition.



You do not have permission to view this object.

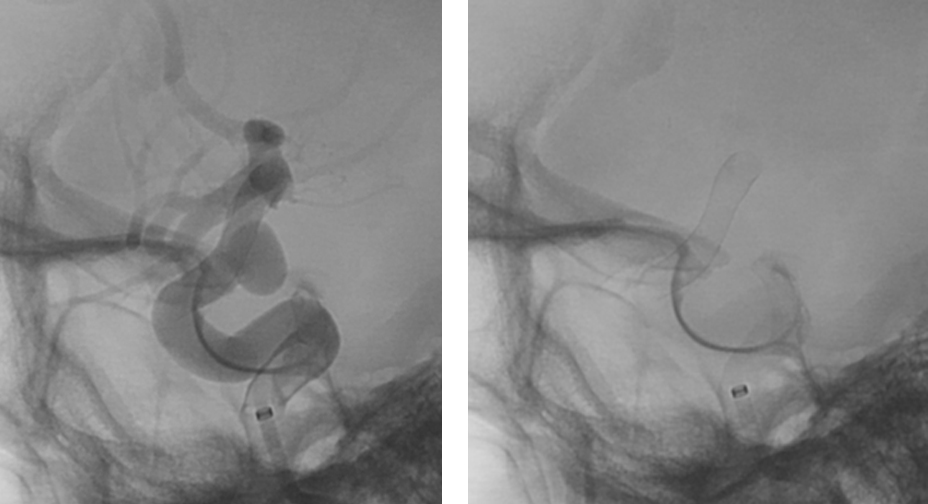

  • The final run shows the nice opening of the device and contrast stagnation in the aneurysm sac.



Final run

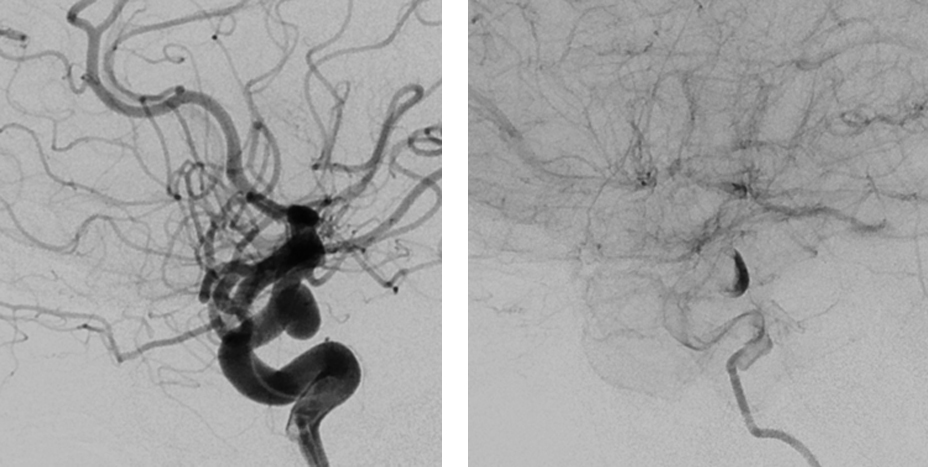

RESULTS

  • The patient continues with Prasugrel 5 mg and ASA 100 mg.
  • FU DSA after 3 months.
  • The patient was discharged the following day.



Results



 This case is sponsored by Medtronic.
