Natural course of extensive intimal hyperplasia after aneurysm-treatment with a flowdiverter

Last update on May 23, 2022

Find out how Dr. Tobias Boeckh-Behrens and Dr. Nadja Krug (Klinikum rechts der Isar/  Technical University Munich) treated a 38-year-old female patient suffering left-sided supraophthalmic, dysplastic-sacciform aneurysm!

Case

THE CASE

Patient

  • 38-year-old female patient
  • Vertigo
  • incidental finding in MRI
    • Left-sided supraophthalmic
    • Dysplastic-sacciform aneurysm



Supraophthalmic aneurysm

image1-Krug-Intimal-Hyperplasia-mri-tof
image2-Krug-Intimal-Hyperplasia-left-ica
image3-Krug-Intimal-Hyperplasia-parent-vessel-diameter

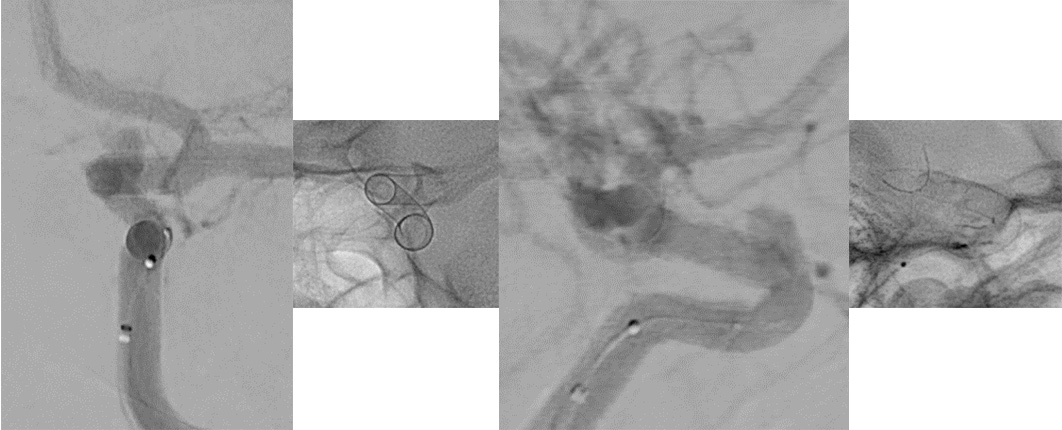

Treatment: Derivo 2 (Acandis) 4mm x 15mm

pre-interventional anticoagulation:

100mg ASA and 75mg Clopidogrel for 10 days

image4-Krug-Intimal-Hyperplasia-treatement-derivo



Postinterventional DSA



image5-Krug-Intimal-Hyperplasia-postinterventional-dsa

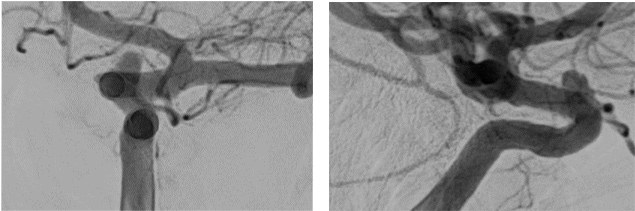

image6-Krug-Intimal-Hyperplasia-post-interventional
image7-Krug-Intimal-Hyperplasia-post-interventional-7m-fu-no-symptoms



Interventional treatment (PTA, Stent)?



image8-Krug-Intimal-Hyperplasia-interventional-treatment-pta-stent
  • Sufficient collateralization over right ICA and expected intimal reaction after another PTA-treatment
    => No intervention but short-term follow-up
    => Continue DAPT



Follow up

  • Patient refused DSA-controls.
  • pCASL (pseudo-continuous Arterial Spin Labeling) + TRANCE (Triggered Angiography Non-Contrast Enhanced)+ Doppler ultrasound



TRANCE

Supply of right and stenosed left ICA

image9-Krug-Intimal-Hyperplasia-supply-of-right-and-stenosed-left-ica
image10-Krug-Intimal-Hyperplasia-supply-of-right-and-stenosed-left-ica



pCASL and Doppler ultrasound

MRI prior to hospital discharge as baseline.

intermittent scotoma on the left eye, pulse synchronous bruit, headache resolved completely.

During follow-up-period:

  • No neurological deficits
  • No cerebral infarction
  • No embolism

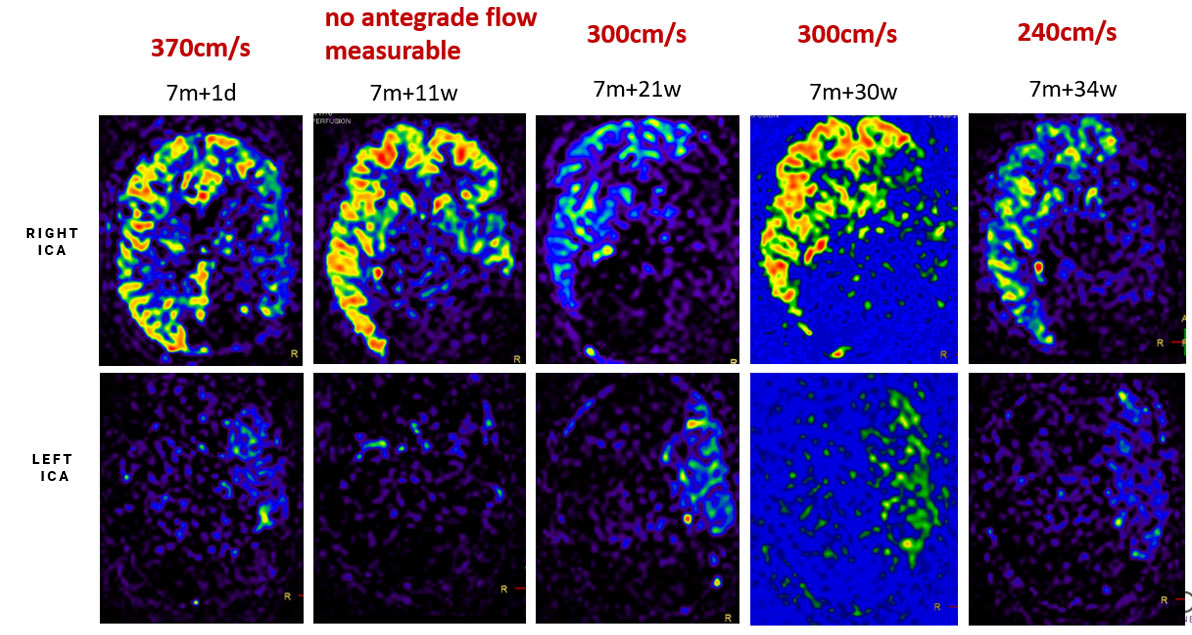

Dopler ultrasound: Flow-velocity of proximal left M1-segment

Stopping Clopidogrel after 15 months due to monthly anemia while menstruation.



image11-Krug-Intimal-Hyperplasia-doppler-ultrasound-flow-velocity-of-proximal-left-m1-segment

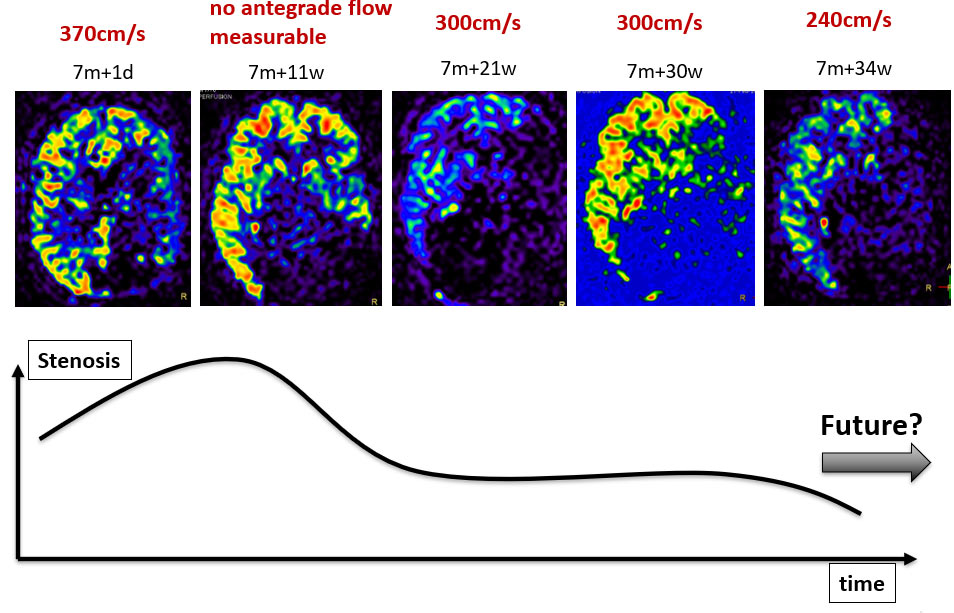

Hemodynamic changes

image12-Krug-Intimal-Hyperplasia-hemodynamic-changes

Conclusion

Intimal hyperplasia as potential complication after FD-treatment :

  • Extensive hemodynamic changes in short-term follow-up
  • Adaption of anticoagulation-regimen

FU-Imaging :

  • pCASL, TRANCE, Doppler ultrasound are sufficient non-invasive methods for follow-up in certain circumstances
