Lesson learned from Linnc Asia 2019 and put to use 3 years later - Drilling the IPS

Last update on November 28, 2022

Watch the case of a 60-year-old diabetic female patient who presented with redness in her left eye...

Case presentation
  • a 60-year-old diabetic female patient who presented with redness in her left eye

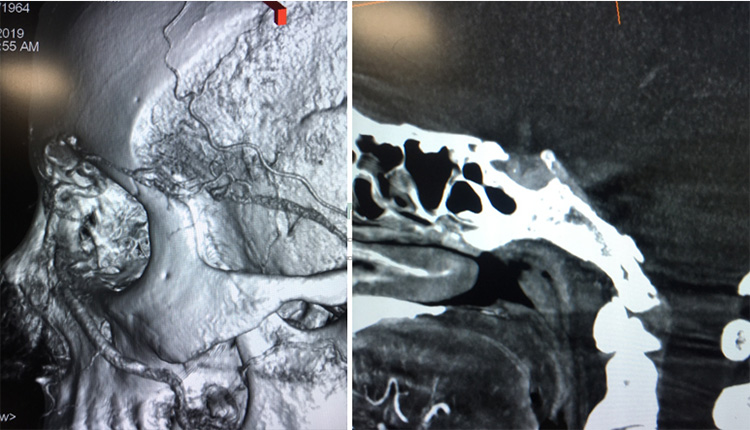

  • Ophthalmological evaluation and cross-sectional imaging of a suspected left-sided carotico-cavernous fistula
Take home from linnc asia 2019 Drilling of IPS

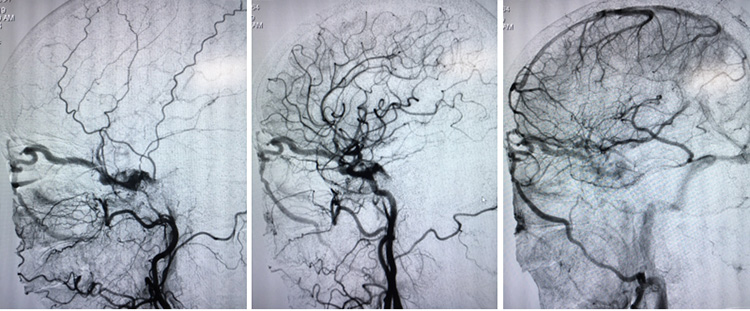

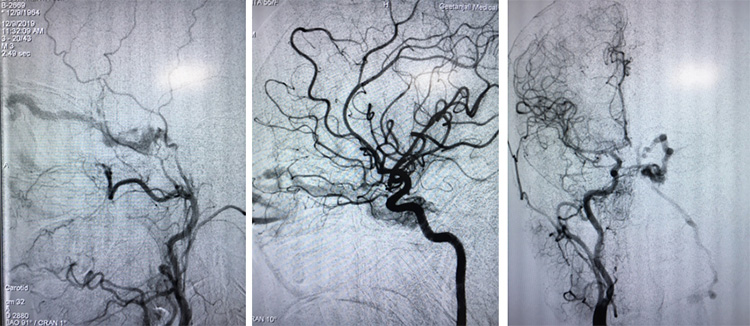

Left ECA and ICA angiography

  • Dural AV fistula of the left cavernous sinus with venous outflow through the facial vein
  • Occlusion of the inferior petrosal sinus
Take home from linnc asia 2019 Drilling of IPS

Right ECA and ICA angiography

  • Dural AV fistula of the left cavernous sinus with venous outflow through the facial vein
Take home from linnc asia 2019 Drilling of IPS

Drainage through the facial vein due to occlusion of the IPS.

Take home from linnc asia 2019 Drilling of IPS
Treatment options

PLAN –A

  • Attempt to access the cavernous sinus through the facial vein resulted in dissection of the vein
Take home from linnc asia 2019 Drilling of IPS

Plan-B

  • IPS drilling to reach the cavernous sinus

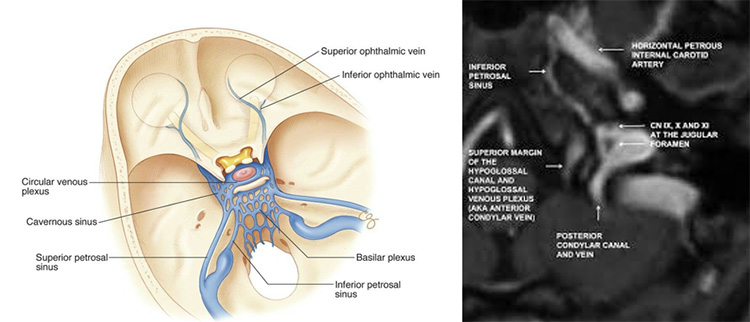

Anatomy of inferior petrosal sinus

  • pars nervosa: anteromedial and smaller
  • pars vascularis: posterolateral and larger
Take home from linnc asia 2019 Drilling of IPS



Anatomy continued

  • The IPS is located in the pars nervosa
  • We can either take a view of the jugular foramen to guide us (transoral view with or without the head turned to 10 degrees opposite)
  • or we can use a cone beam CT to help us precisely locate the pars nervosa

Material

  • 6f short sheath in left ijv
  • 5f mpa shaped diagnostic catheter
  • 035 hydrophilic guide wire with straight tip
  • 017 microcatheter
  • 012 microwire
  • Detachable coils 10 or 18 system
  • +/- liquid embolic agent

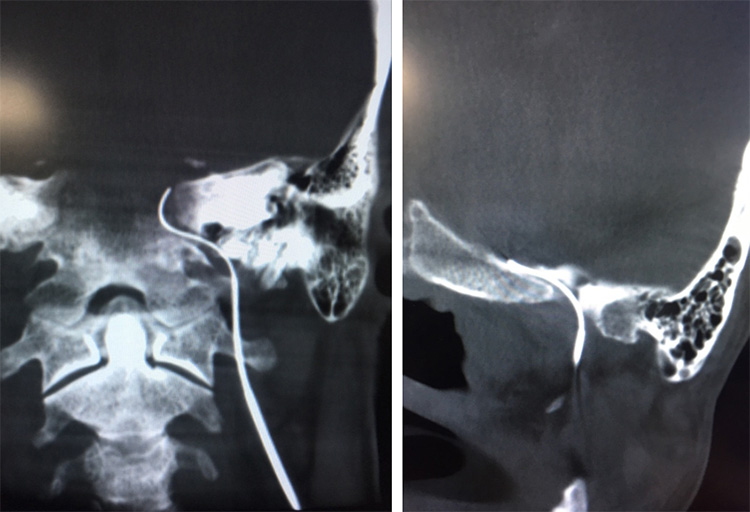

Cone beam CT

  • Confirms the location of the wire in the pars nervosa
Take home from linnc asia 2019 Drilling of IPS

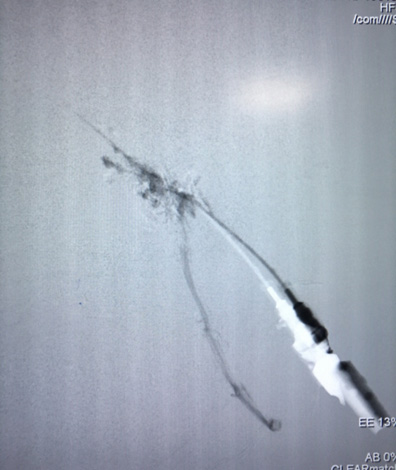

  • After stabilisation of the 5f mpa diagnostic catheter in the pars nervosa, gentle drilling of the IPS with a straight-tipped 035 hydrophilic wire
  • The 035 wire is removed under a blank roadmap
  • Microwire and microcatheter navigated under a negative roadmap

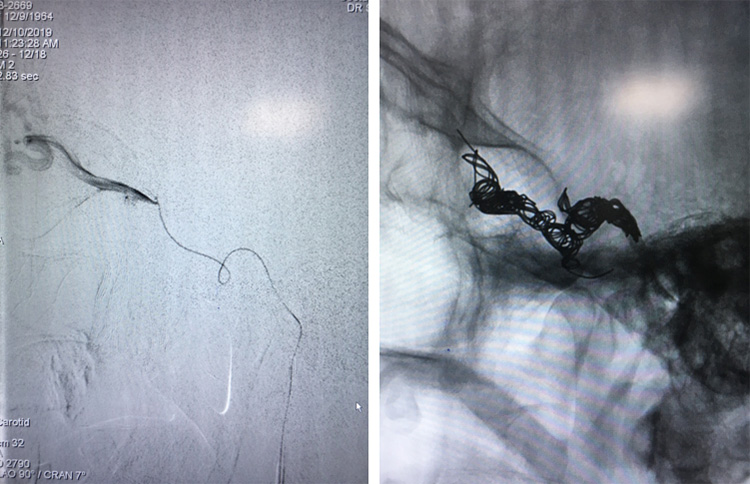

Coiling of the foot of the SOV and the cavernous sinus

Take home from linnc asia 2019 Drilling of IPS



  • Left CCA injection shows obliteration of CCF
  • Right CCA injection shows obliteration of CCF
Conclusion

After 3 days

  • Resolution of redness of the eye
  • Facial swelling and bruising at the facial vein access
Take home from linnc asia 2019 Drilling of IPS

15 days follow-up

  • No more redness of the eye
  • Resolution of subcutaneous hemorrhage
Take home from linnc asia 2019 Drilling of IPS



  • Recanalisation of the inferior petrous sinus is a useful technique for reaching the cavernous sinus in indirect CCF
  • Knowledge of anatomy is vital for plannning and execution
  • This case demonstrates that a technique learned in a real case conference can be replicated
