Distal Anchoring Technique

Last update on March 13, 2023

Find out how Dr Wala Awad, Dr Samir Kashyap and Dr Rabih G. Tawk treated a 79-year-old female with incidental finding of a R ACA aneurysm on workup for dizziness

 Disclosures

  • No relevant disclosures

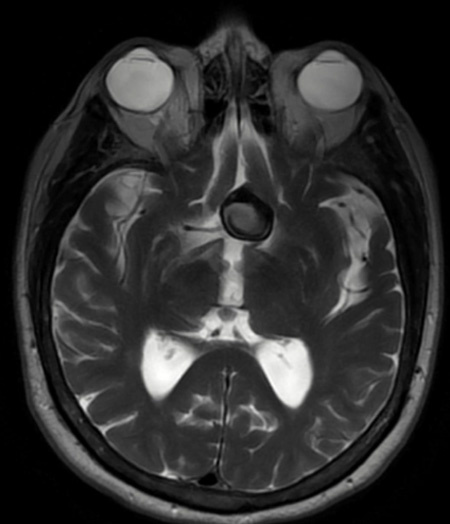

Case presentation
  • A 79-year-old female presented to clinic with incidental finding of a R ACA aneurysm on workup for dizziness.
  • PMH: HTN
  • Social Hx: Previous smoker < 1PPD x 4y
  • No family hx of intracranial aneurysms
  • Exam: Neuro intact

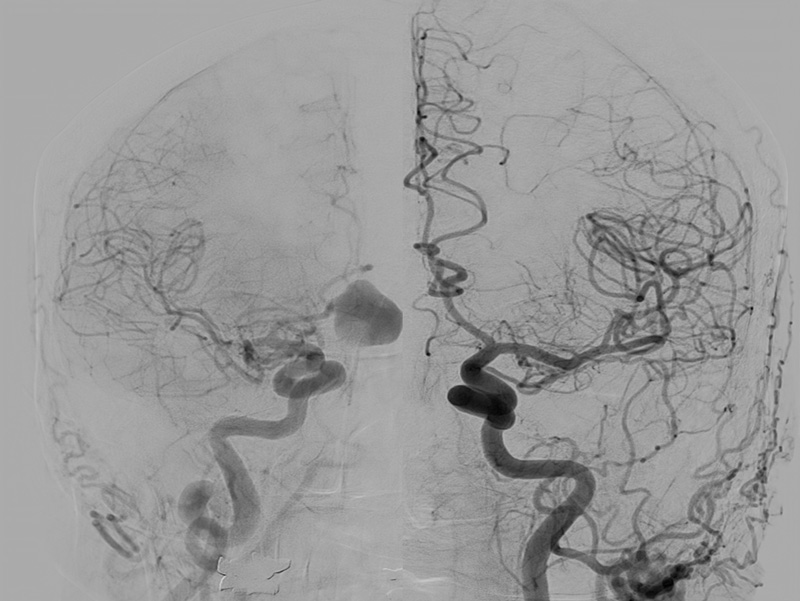

Baseline Angiogram

You do not have permission to view this object.
You do not have permission to view this object.

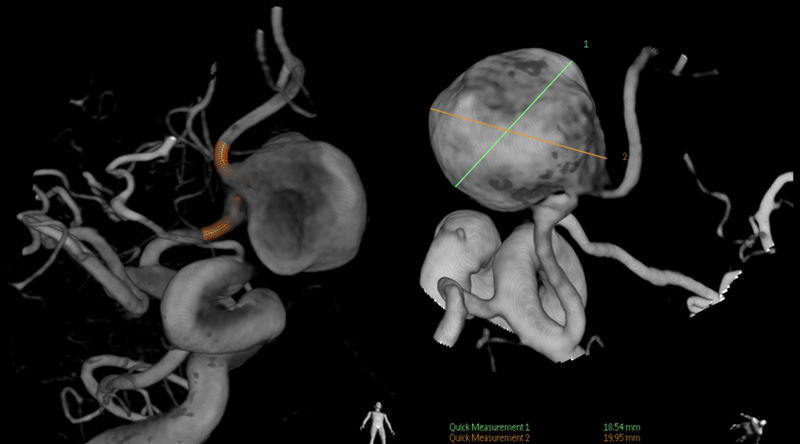

Baseline Angiogram (3D)

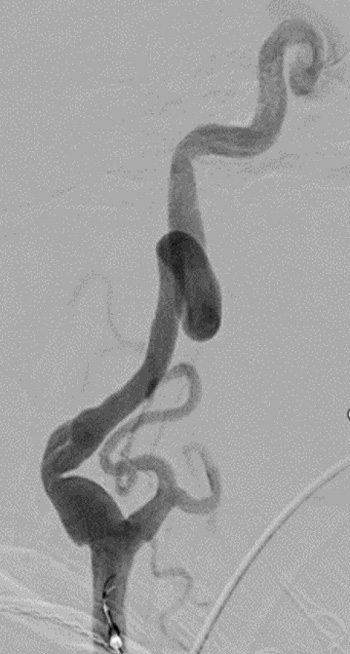

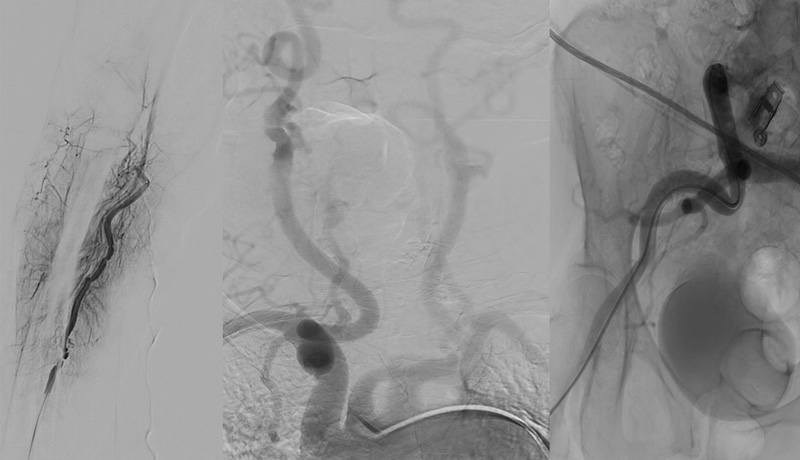

Proximal Access



You do not have permission to view this object.
Treatment Plan
  • Flow diverter stent
    • 3 x 20 mm
  • Support
    • 072, 044 support catheters
    • 027 delivery microcatheter
    • 014 microwire

Technical Challenge

  • Around the world technique to gain distal access
  • Microcatheter loop would not reduce
You do not have permission to view this object.
You do not have permission to view this object.



Distal Anchoring Technique

  • 3 x 20 mm stent retriever deployed
    • Distal Anchor
  • Microcatheter loop reduced
You do not have permission to view this object.
You do not have permission to view this object.
You do not have permission to view this object.

Complication

  • Spasm – IA verapamil
  • Distal outflow occlusion – IA + IV Aggrastat

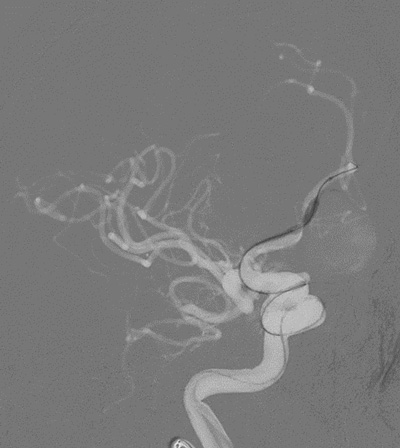

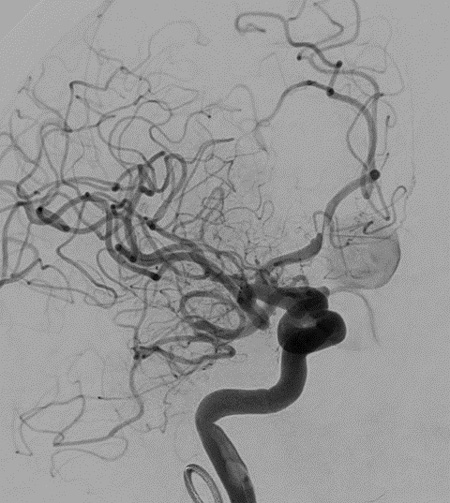

Eclipse

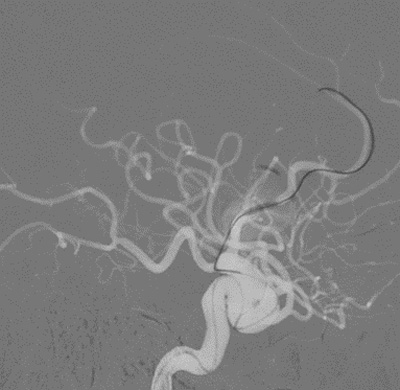

Gateway



Devices used

  • Guide: 7F long sheath
  • Support: 072, 044 intermediate support catheters
  • 027 microcatheter
  • 3 x 20 stent-retriever
  • Flow diverting stent 3 x 20 mm
  • Balloons
    • 6 x 20 mm
    • 1.5 x 9 mm

Final Angiogram

You do not have permission to view this object.
