Transorbital embolization of bilateral caroticocavernous fistula via an unilateral inferior ophthalmic vein approach

Last update on May 21, 2023

Discover the case of an 81-year-old male patient with a complex presentation of bilateral carotid cavernous fistula (CCF), exhibiting acute symptoms including left ptosis, diplopia, bilateral chemosis and cranial nerve palsies. Conventional embolization routes were not feasible due to occlusions and stenosis in various venous pathways. Thus, a hybrid surgical and endovascular approach was employed, utilizing a direct access technique via the right inferior ophthalmic vein (IOV).

Case presentation

Patient presentation

  • M/81
  • Acute onset (10 day history):
    • left ptosis
    • diplopia
  • Physical examination:
    • bilateral chemosis
    • right CN VI palsy
    • left CN III (with pupil involvement) and CN VI palsy
  • Clinical diagnosis:
    • Caroticocavernous fistula (CCF)



Right & Left ECA - AP angiograms



Right ICA - Lateral angiogram



Embolization targets

  • Bilateral cavernous sinuses
  • Intercavernous sinus
  • Bilateral SOV and IOV
  • Cortical veins with reflux



Approach

  • Conventional routes:
    • Occluded bilateral inferior petrosal sinuses
    • Significant stenosis in lower part of right facial vein
    • Occluded bilateral superior ophthalmic veins (SOV)
    • Significant stenosis at entry site of vein of Trolard into superior sagittal sinus
  • Available routes:
    • Direct access of right inferior ophthalmic vein (IOV)
    • Direct access of right vein of Trolard



approach
Intervention

Intervention

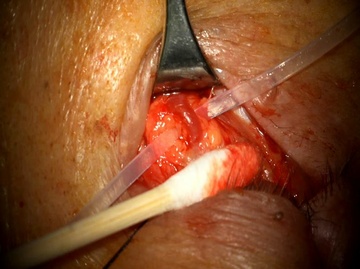

Right IOV surgical exposure for access



right-iov

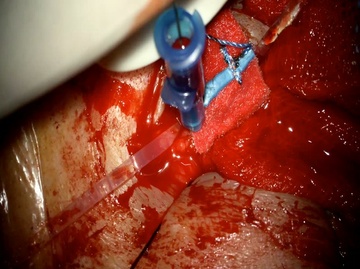

Right IOV access with 22G IV cannula



right-iov02



Right IOV - venogram



Right IOV - access

  • Only a 2cm segment of right IOV after which there is an acute 90 degree turn to a bridging vein to right SOV
  • Shortest length of available vascular sheaths is 4cm
  • Direct access with a 1.7Fr microcatheter over a 0.014” microguidewire



right-iov-access

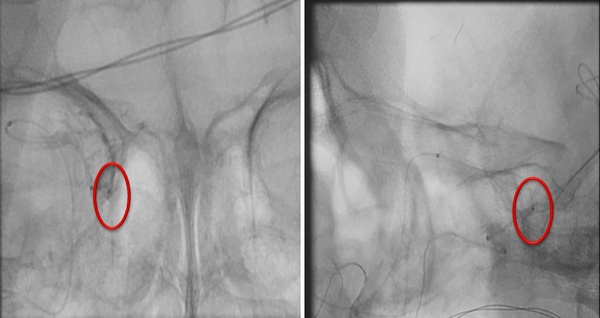

Right cavernous sinus

  • Direct catheterization



rcs-catheterization

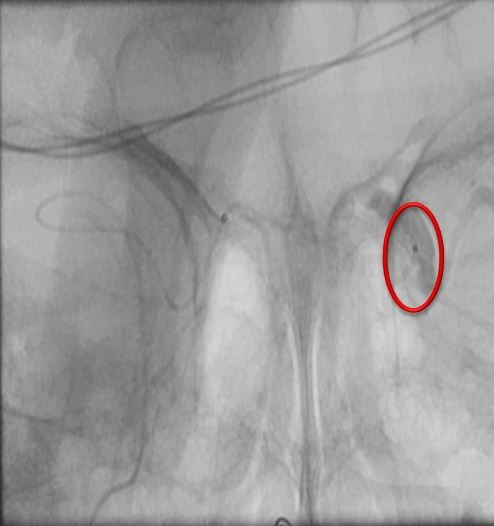

Left cavernous sinus

  • Catheterization and venogram



lcs-venogram



Coil embolization

  • Coil embolization of left SOV, left IOV, left cavernous sinus, intercavernous sinus
  • Minimal purchase margin of microcatheter available during coiling of right cavernous sinus
  • Switched to liquid embolization



coil-embolization



Post-embolization angiograms

  • Right ECA – AP and Lateral





Post-embolization angiograms

  • Right ICA – Lateral





Clinical course

  • Clinical follow-up at 2 weeks, 3 months, 6 months and 18 months post-embolization:
    • Resolved bilateral chemosis
    • Resolved left ptosis
    • Resolved diplopia
    • Resolved bilateral cranial nerve palsies
    • No visual impairment
Conclusions
  • Bilateral CCF with cortical venous reflux, with occlusion or significant stenosis along conventional venous embolization routes
  • Hybrid surgical and endovascular approach with access via right inferior ophthalmic vein
  • Short segment of the accessed right IOV requiring direct microcatheter access without vascular sheath
  • Combination of coil and liquid embolization due to limited microcatheter purchase margin during ipsilateral side embolization
