Temporal AVM embolization via double access

Last update on May 23, 2023

Discover the case of a 67-year-old female patient with a history of breast cancer who presented with syncope. During an MRI to investigate for metastases, flow voids were observed in the right temporal pole, along with encephalomalacia. Due to the non-eloquent location and diffuse nature of the AVM, the medical team opted for embolization using two different routes.

Case presentation

Patient presentation

  • 67 Y/O woman
  • PMH: Breast CA
  • Syncope
  • MRI to investigate for metastases
  • Flow voids in the right temporal pole with encephalomalacia

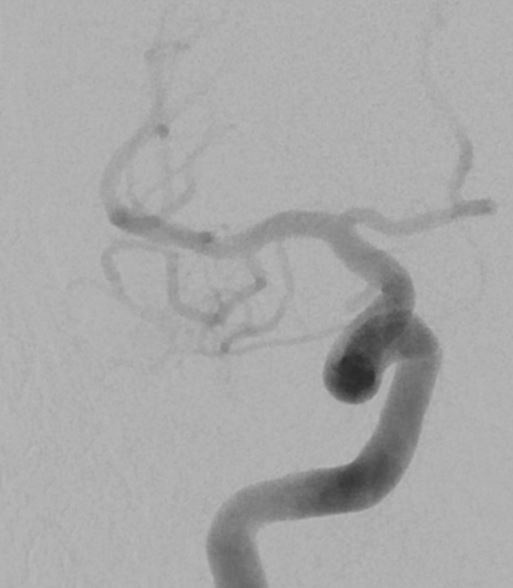

Arterial feeders



arterial-feeders



  • Mainly from temporopolar branch and anterior temporal artery



arterial-feeders02

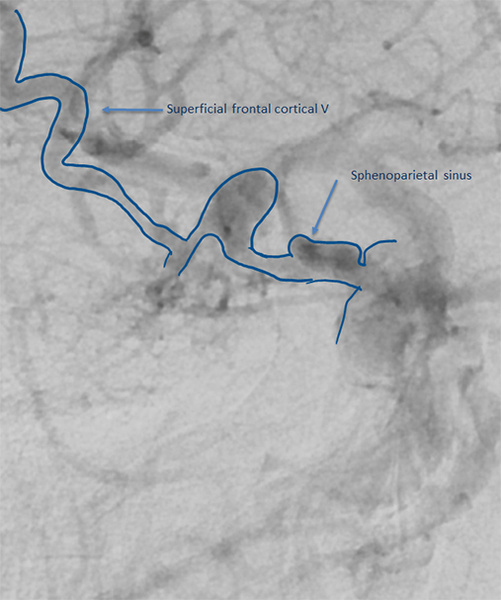

Venous drainage





venous-drainage



  • Laterally: superficial frontal cortical vein then SSS
  • Medially: medial aspect of the sphenoparietal sinus then cavernous sinus



venous-drainage02

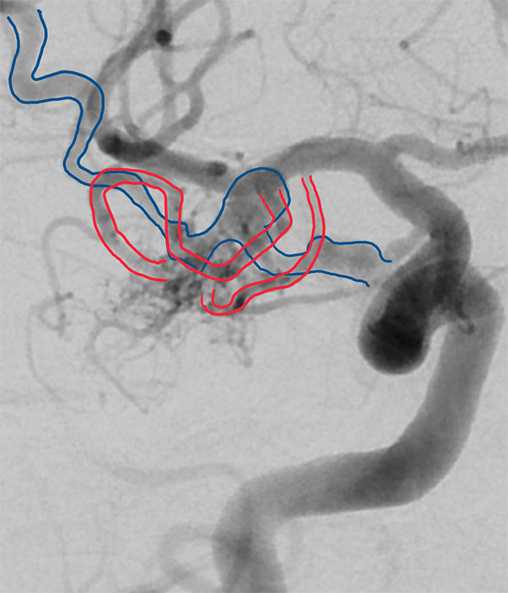

AVM

  • Rt Temporal pole AVM
  • Spetzler-Martin 2
  • Large venous aneurysm



AVM



Treatment options

  • Observation:
    • Dangerous features
    • ARUBA TRIAL
    • TOBAS registry
  • Surgical resection
    • Close proximity to MCA
    • Diffuse nature of the AVM
  • Radiation
    • Dangerous features
    • Diffuse AVM
  • Embolization:
    • Non-eloquent location
    • Double approach with intent to cure



Intervention

Microcatheters simultaneous injection





microcatheter-injection

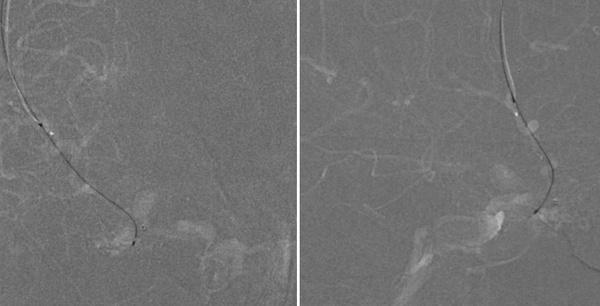

Venous access

  • Right IJ: avoid catheter stretching in heart
  • 4 Fr vert catheter
  • Apollo (3 cm) allow reflux



venous-access



venous-access02

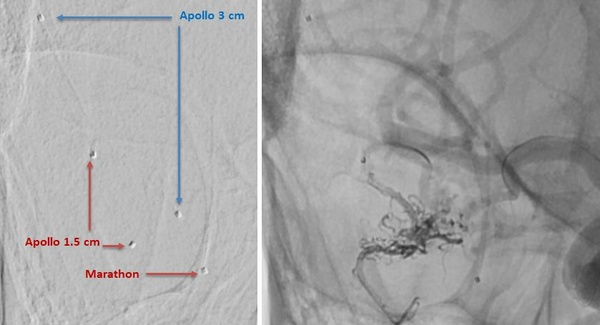

Arterial access

  • Distal: Apollo 1.5 cm
  • Proximal: Marathon
  • Aid with control during embolization



arterial-access



arterial-access02



arterial-access03

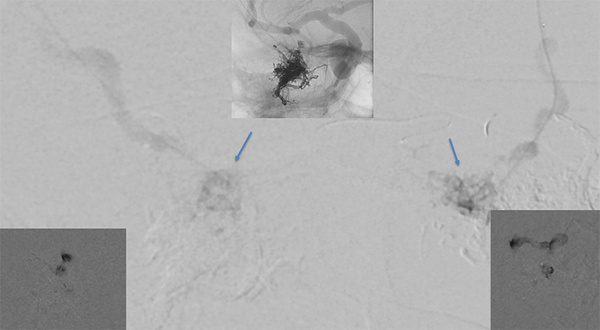

Venous injection after arterial embolization showing AVM remnant





venous-injection
Conclusion

1-year follow-up

1y-follow
