AComA Crossover Treatment of a Complex ICA Tip Aneurysm Using pEGASUS HPC stent

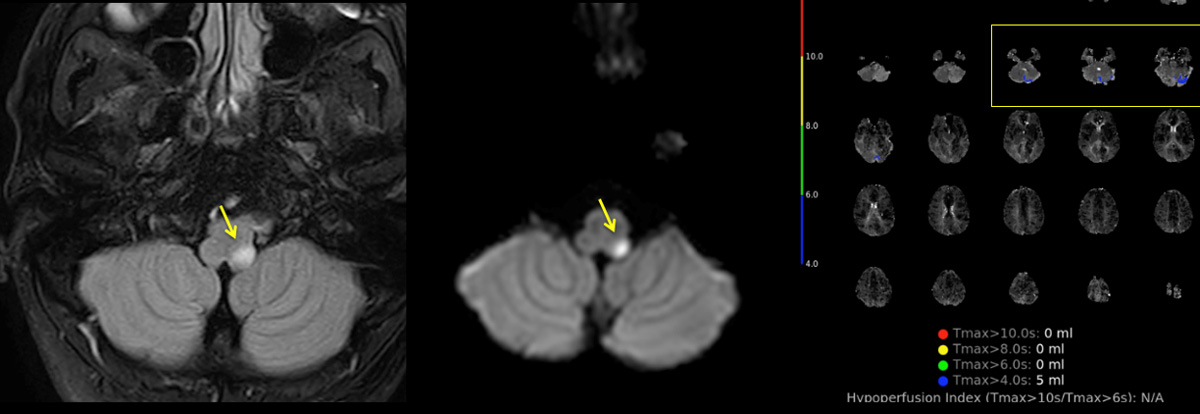

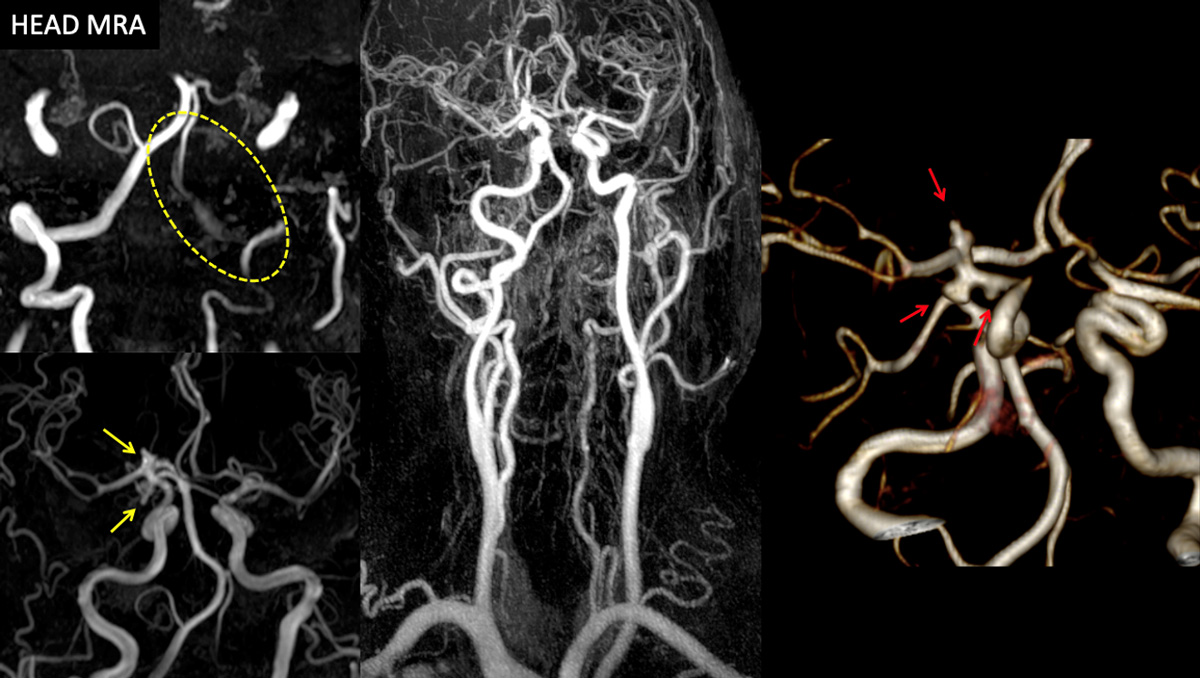

A 32-year-old man presented with intense headache, vertigo, and diplopia; imaging showed a left pre-PICA V3–V4 vertebral artery dissection with severe stenosis causing posterior fossa ischemia.

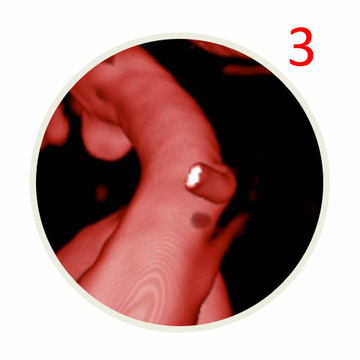

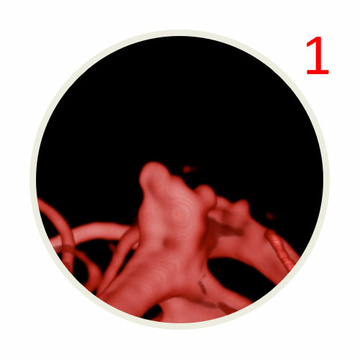

Moreover, there are three right-sided aneurysms at the ICA tip, PComA, and AChA.

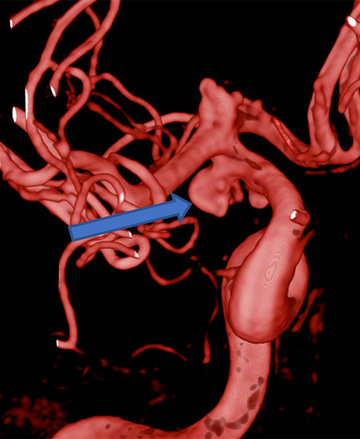

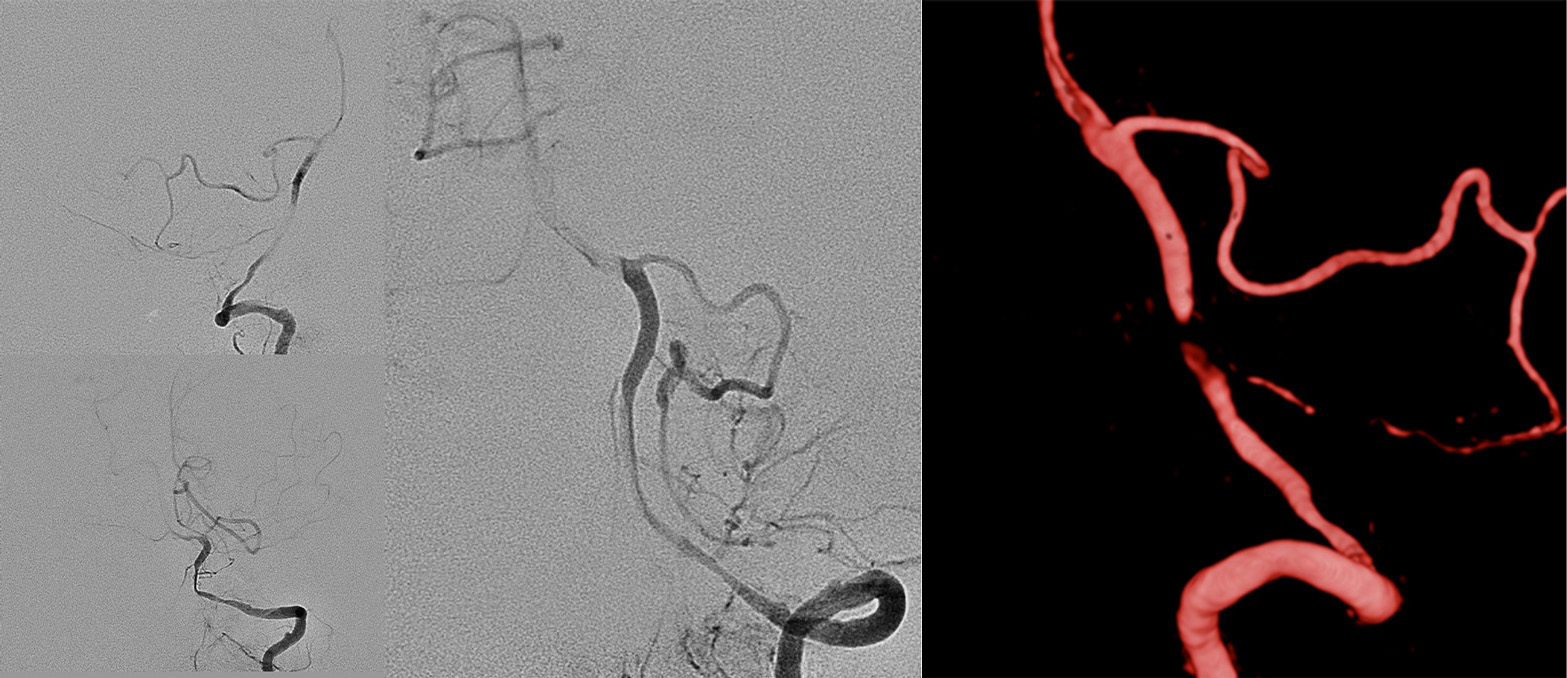

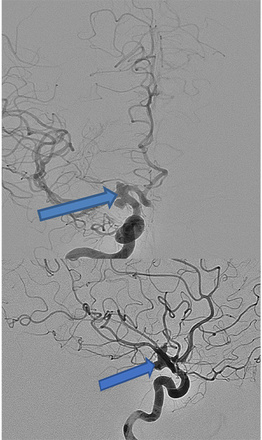

PRE TREAT DSA

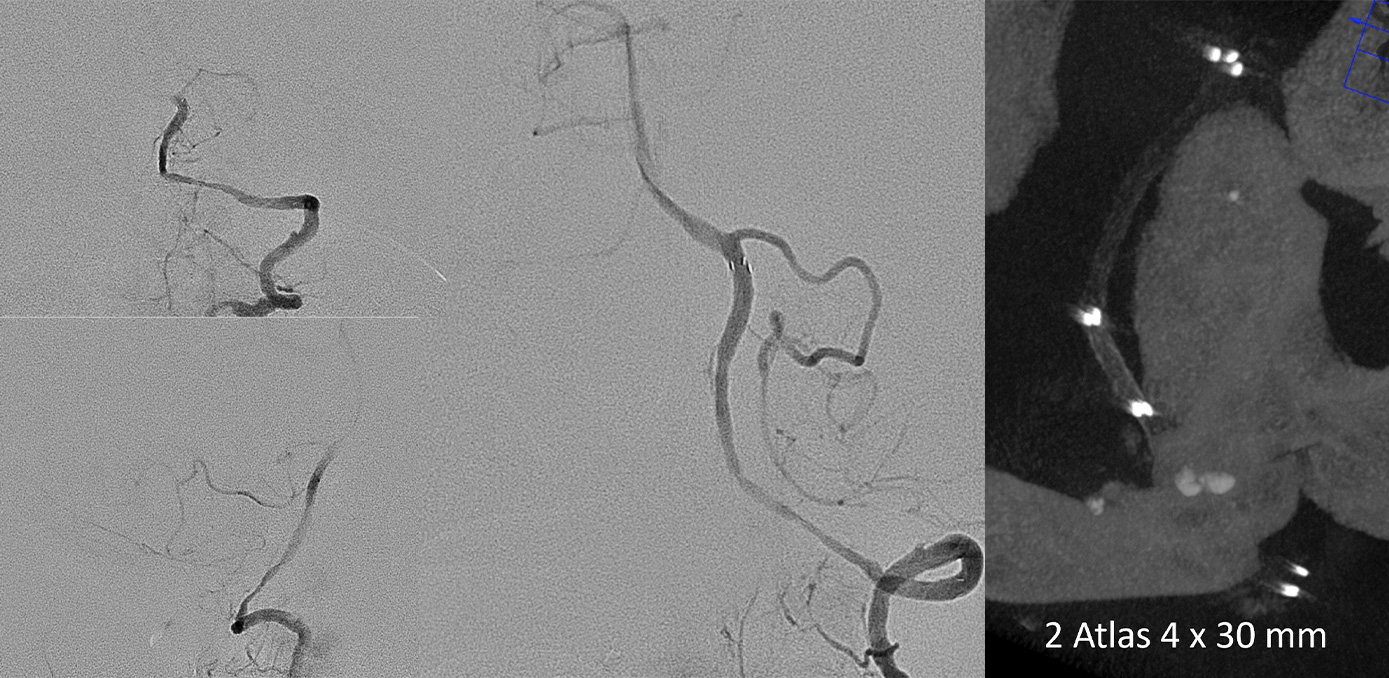

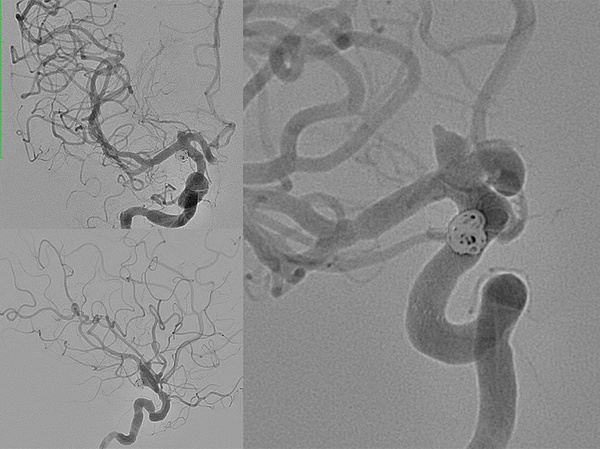

POST-TREAT DSA

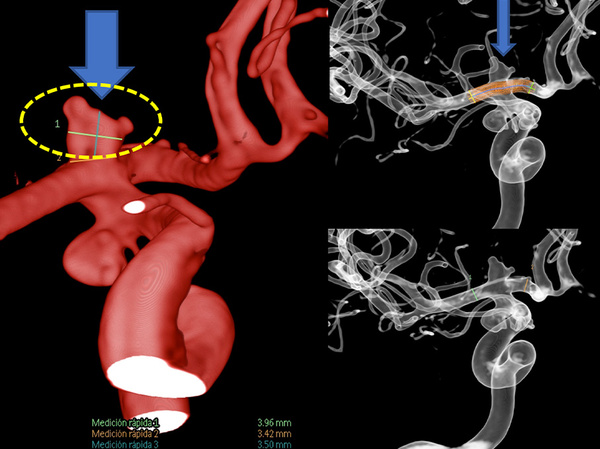

PRE TREAT DSA

Poll #1

Poll#2

The decision was made to treat with coils AChA and cover two aneurysms (PComA, AChA) with P64 4x21 mm.

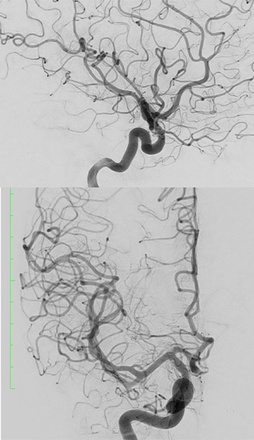

POST-TREAT DSA

Poll #3

Powered by Quiz Maker

Why standard treatment was difficult

1. Unfavorable ipsilateral angle for stent delivery
2. Multiple aneurysms already treated in the same vascular territory

Management



• Double femoral access
• Left ICA → AComA → pEGASUS HPC delivery
• Right ICA → coil microcatheter
• Simultaneous dual microcatheter strategy.
• This approach allowed reconstruction across the target segment and controlled aneurysm occlusion with preservation of the parent vessel.

Excelsior SL-10 trans AComA



pEGASUS HPC 3.5 mm x 20 mm

Excelsior SL-10 via R-ICA

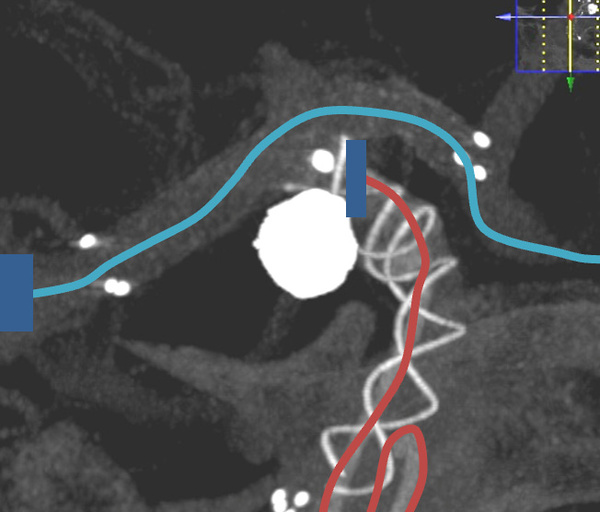

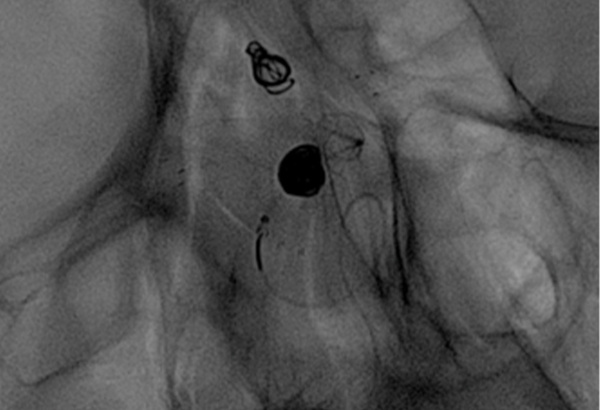

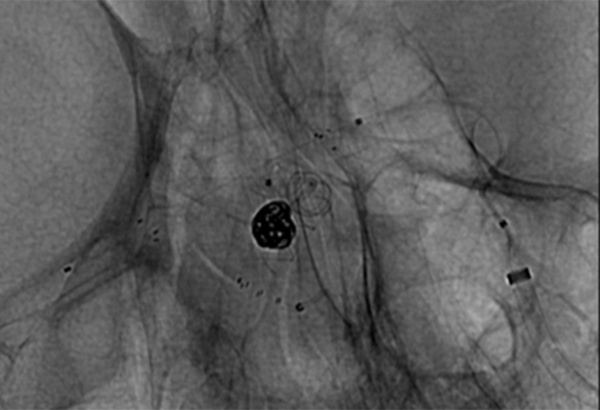

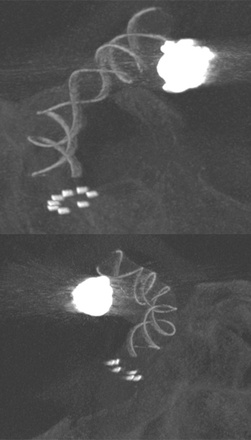

Double femoral access (Triaxial System). Cross over from L-ICA (AcomA) - w/ Excelsior 10 for Pegasus 3.5x20 and Exclesior 10 for coiling from R-ICA

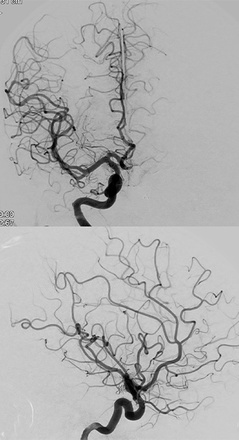

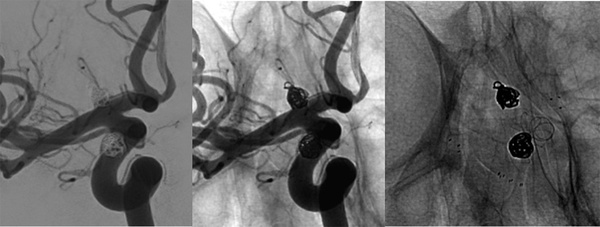

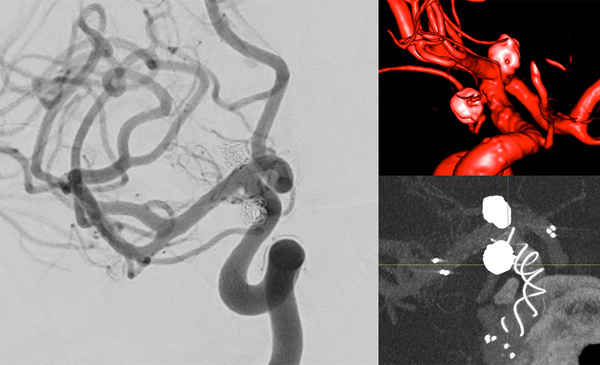

6 MONTHS FU DSA

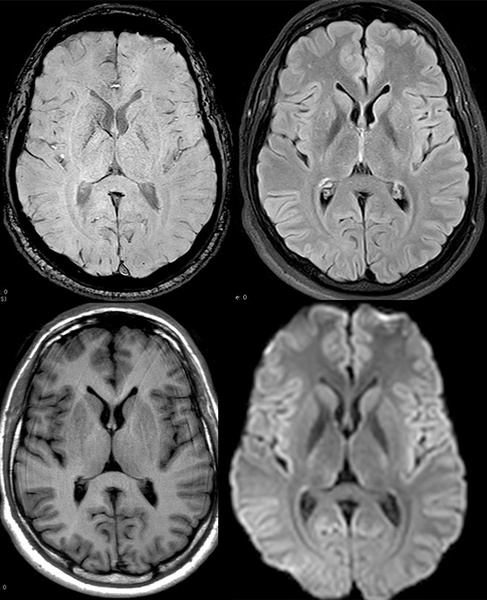

6 MONTHS FU MRI

• Patent parent vessel
• No in-stent stenosis
• Stable aneurysm occlusion
• No new ischemic lesions

Conclusion

Cross-circulation through the AComA can provide an elegant reconstructive option for complex ICA bifurcation aneurysms when direct ipsilateral access is suboptimal.

In this case, pEGASUS HPC enabled stable stent-assisted coiling with durable angiographic results at 6 months.”
