Use of MR imaging of the vessel wall for carotid stent treatment planning

Last update on November 28, 2022

Use of MR imaging of the vessel wall for carotid stent treatment planning.

Case presentation

Clinical background

  • 55-year-old male patient
  • Medical history:
    • NPC treated with radio TX 20 years ago
    • Hypertension
    • Hyperlipidemia
  • Right eye amaurosis fugax (resolved)
  • Left hand paresthesia (resolved)

Investigations

  •  Ophthalmology - occlusion of the RE branch artery
  •  MRI - No infarction. Occlusion of the left ICA
  •  CT Angiogram
    • Left ICA occluded at origin
    • Multifocal stenosis of the right CCA. Severe stenotic segment in the distal CCA

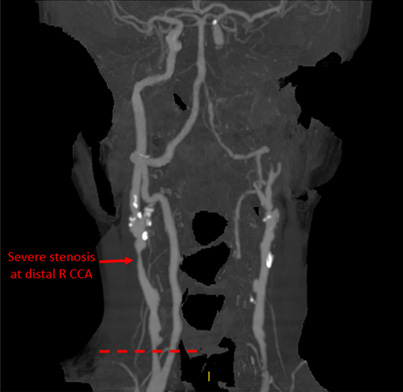

CT angiogram

CTA shows:

  • Severe stenosis at the distal right CCA
  • Moderate multifocal stenosis at the proximal right CCA
  • Occluded left ICA
CAS Vessel Wall DWW MRI Vessel Wall

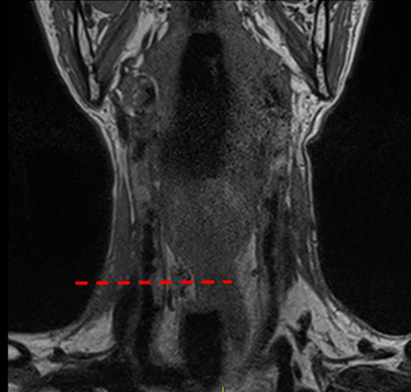

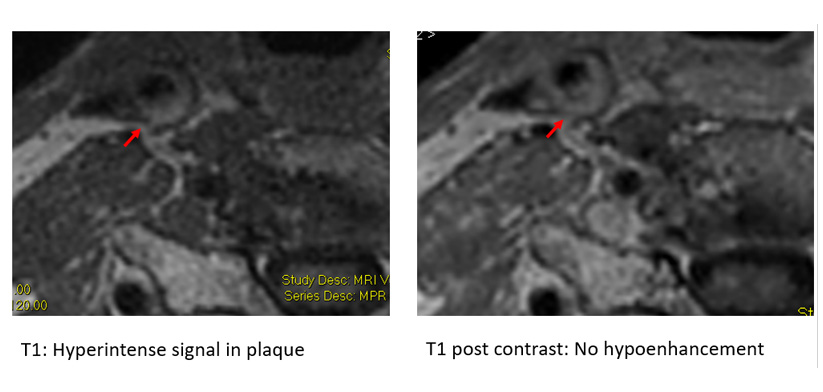

MRI of the vessel wall

CAS Vessel Wall DWW MRI Vessel Wall

CAS Vessel Wall DWW MRI Vessel Wall

Treatment decision
  •  MRI of the vessel wall shows high-risk plaque features (intraplaque haemorrhage) in the proximal right coronary artery.
  •  Discussion with neurologist and patient. Decision to stent BOTH areas: severe stenosis at distal R CCA and moderate stenosis with high risk plaque at proximal R CCA.
  •  Without VW MRI, we may choose to treat only the area of severe stenosis (distal CCA).
  • The use of MRI to identify high-risk plaques gives the NIR and referring clinician increased confidence to treat lesions without severe stenosis but with high-risk plaques.

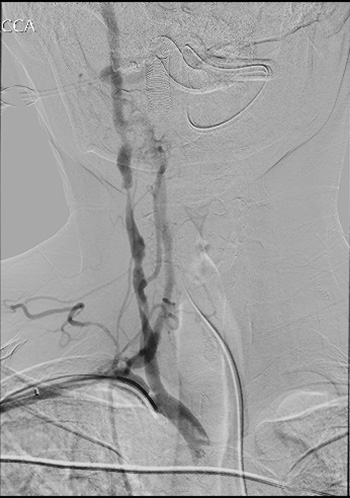

Pre-stent angio

CAS Vessel Wall DWW MRI Vessel Wall

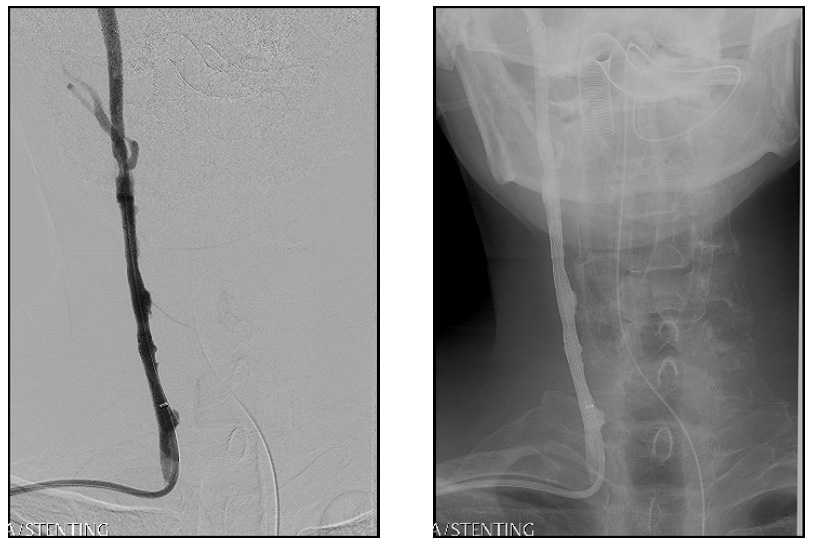

Post-stent angio

CAS Vessel Wall DWW MRI Vessel Wall
Implementation of the procedure
  •  Access – R distal radial artery
  •  Sheath – Ballast 088  (alternative Penumbra Neuron Max 088, Fubuki 6F)
  •  Distal protection device - Emboshield Nav 6 (alternative Filterwire Ez, Spider Fx)
  •  Stent – X. Act 7-9 mm x 40 mm and Carotid Wallstent 7 x 50 mm (alternative Precise Pro RX, Protégé Rx)

Follow-up

  •  Follow-up at 8 months after carotid stenting.
  •  Stent remains patented.
  •  No further symptoms.
