Transcervical approach for carotid artery stenting without reversal flow

Last update on November 28, 2022

Find out how Dr Thang Do Duc treated a 54-year-old woman with right hemiparesis.

Case presentation

Patient:

  • A 54-year-old woman
  • Main complaint: right hemiparesis
  • Uncontrolled hypertension for 5 years
  • Minor ischemic stroke with right hemiparesis 1 month ago
  • No history of diabetes, heart disease, stroke, transient ischemic attack, thromboembolic or other vascular diseases

Physical examination:

  • Blood pressure: 120/80 mmHg
  • Heart rate: 90 bpm
  • Respiratory rate: 20 times/min
  • Blood sugar: 111.7 mg/dl.
  • Other test values are normal

3 Tesla brain magnetic resonance imaging (MRI) revealed hyperintense lesions on the left hemisphere affected by severe stenosis of the ipsilateral internal carotid artery (Figure 1).

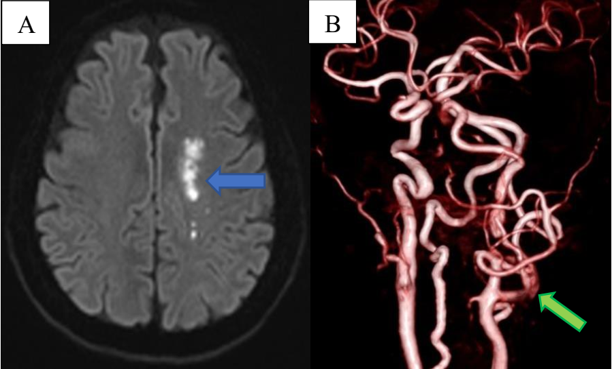

First cerebral MRI

Figure 1: first cerebral MRI - A) hyperintense lesions on the left hemisphere (blue arrow); B) Severe stenosis of the ipsilateral internal carotid artery (green arrow).

Treatment plan:

  • Suitable for digital subtraction angiography (DSA).
  • Tortuous type III aortic arch and left common carotid artery

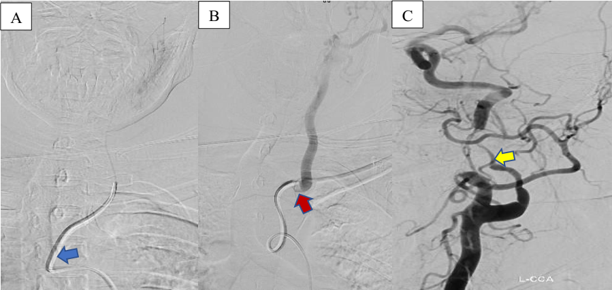

Figure 2: First endovascular therapy

Figure 2: first endovascular therapy - A) tortuous type III aortic arch approached by 5F IMPRESS® Simmons 2 Catheter (Merit Medical) (blue arrow); B) tortuous common carotid artery (red arrow); C) perpendicular origin with severe internal carotid artery stenosis (yellow arrow);

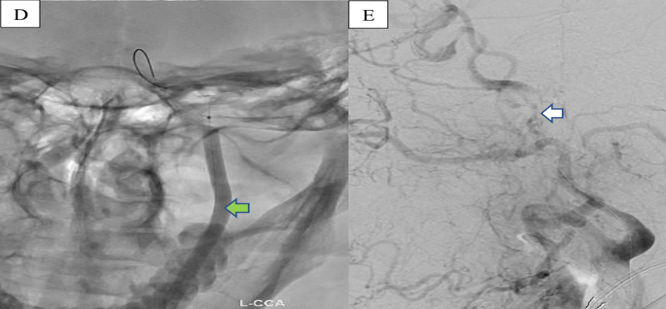

Figure 3: Angioplasty and Restenosis

D) angioplasty (green arrow); E) restenosis of the internal carotid artery (white arrow).

  • Carotid artery stenting failure
  • From hemiparesis to hemiplegia
  • MRI showed that the left hemisphere had more hyperintense lesions than on the first MRI, and a near occlusion of the left internal carotid artery
1 month later

Treatment plan

Second cerebral MRI

Figure 3: second cerebral MRI - A) more hyperintense lesions on the left hemisphere than on the first MRI (blue arrow); B) near occlusion of the ipsilateral internal carotid artery (yellow arrow).

Change to transcervical access to perform stenting.

Sheath 8F introduced into common carotid artery

Figure 4: A) exposure of common carotid artery (blue arrow); B) 8F sheath introduced into common carotid artery (yellow arrow).

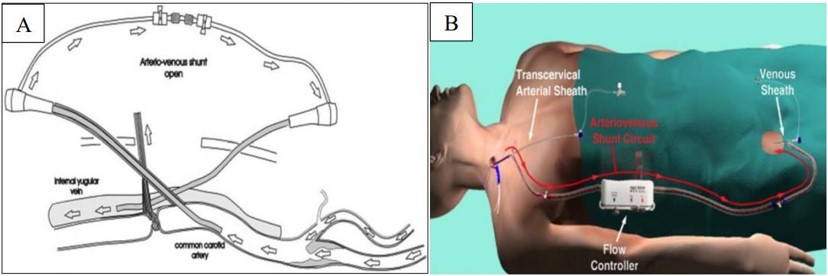

Diagram of transcervical carotid flow reversal technique

Diagram of transcervical carotid flow reversal technique: A) flow reversal from the common carotid artery to the internal jugular vein [6]; B) flow reversal from the common carotid artery to the femoral vein [7].

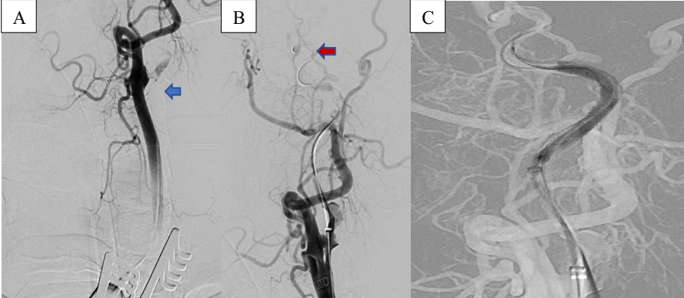

Microwire advanced into petrous segment of internal carotid artery

A) Near occlusion of the internal carotid artery (blue arrow); B) Microwire advanced into petrous segment of internal carotid artery (red arrow); C) First angioplasty;

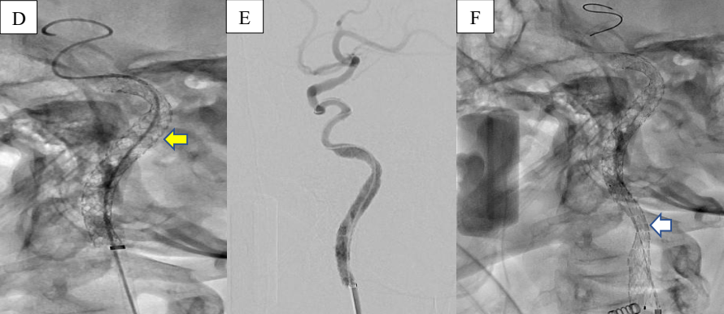

Angiography after the first stent

D) Unsheathing the first stent (yellow arrow); E) Angiography after the first stent; F) Deployment of the second stent (white arrow)

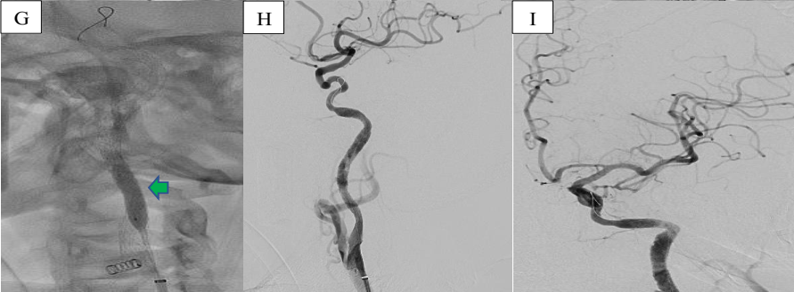

Angioplasty after in-stent restenosis

G) Angioplasty after in-stent restenosis (green arrow); H, I) Left anterior circulation after carotid stenting in the lateral and anteroposterior planes, respectively.

Results
  • Recanalization was successful with TICI 3.
  • There were no procedure-related complications after revascularisation.
  • mRS 1 at 3 months after discharge.

Discussion:

  • Transfemoral carotid artery stenting is the popular treatment for high-risk patients with severe carotid stenosis.
  • Transcervical access may also be an alternative option, with:
    • either arterial tortuosity
    • or a reduction in the periprocedural thromboembolic risk.
