Curative Embolization of Cerebral AVMs - Glue is Still Relevant

Last update on May 23, 2023

Discover the cases of three patients with cerebral arteriovenous malformations (AVMs) in different locations who underwent curative embolization using glue (NBCA) as the exclusive or main embolic agent.

Case presentation

Curative Embolization of Cerebral AVMs by Glue

We present three example cases of cerebral AVMs in different locations in which glue (NBCA) was the exclusive (2 cases) or main ( 1 case) embolic agent used. We were able to achieve complete obliteration of AVMs in all the 3 cases.

Intervention

Case 1

Patient presentation

  • Girl, 17-year-old. presented with acute onset headache f/b LOC in Dec, 2021

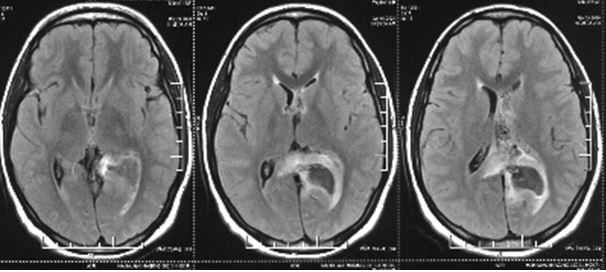

  • CT/MRI-left posterior pericallosal bleed with IVH

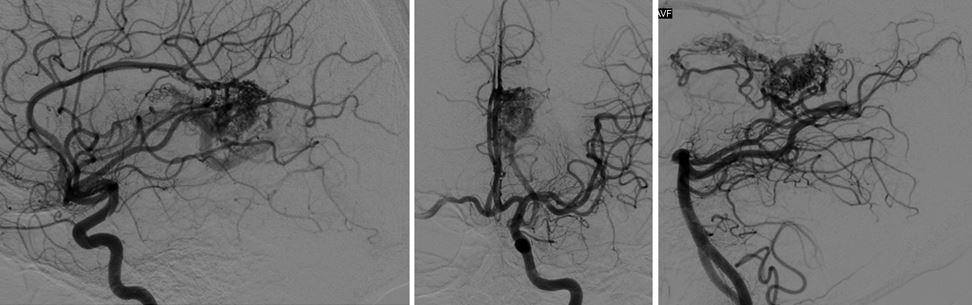

  • DSA → posterior pericallosal & choroidal AVM



pericallosal-bleed



choroidal-AVM



Embolization Session -1 July 2022

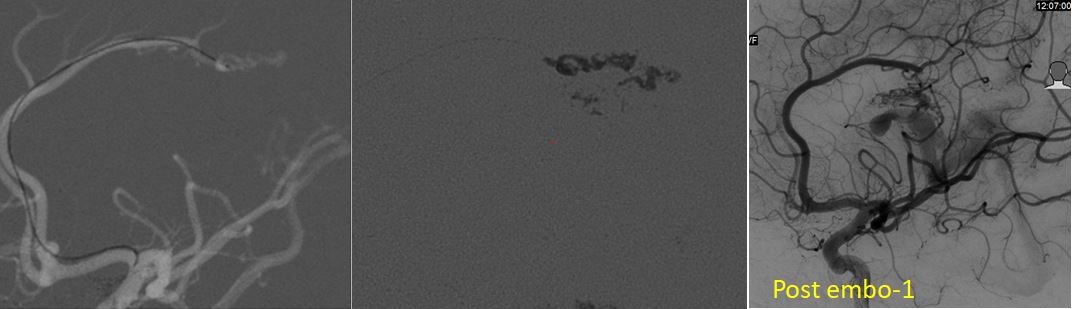

  • Pedicle-1: Left Pericallosal



pedicle01

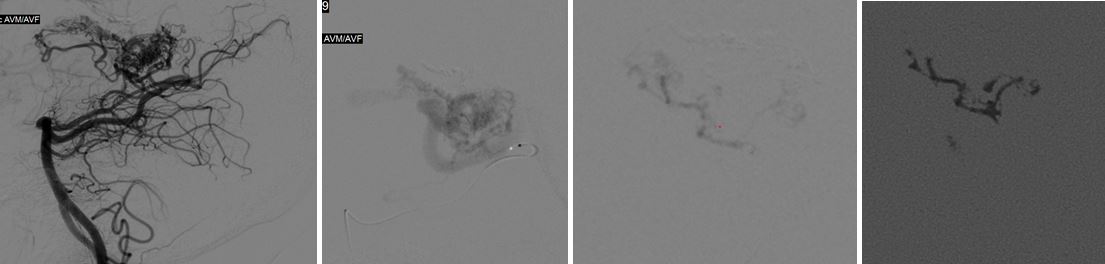

  • Pedicle-2: peri splenial br.



pedicle02

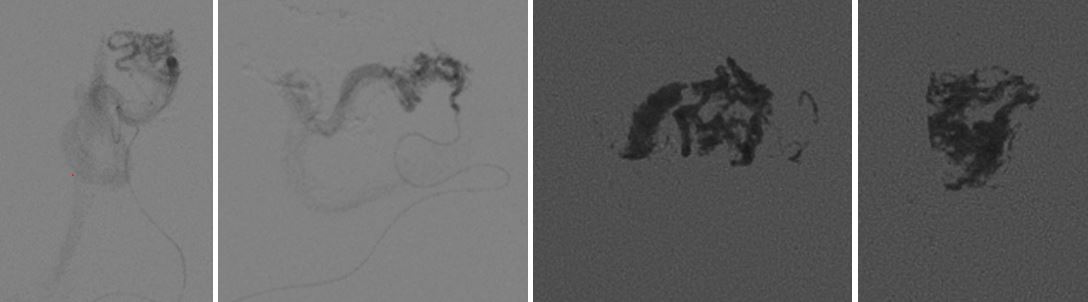

  • Pedicle-3: Post. choroidal br.



pedicle03

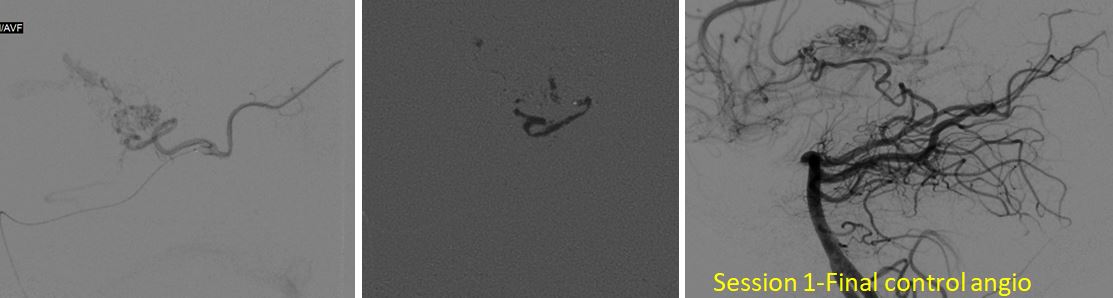

  • Pedicle-4: Post. choroidal br.



pedicle04



Embolization Session -2: March 2023

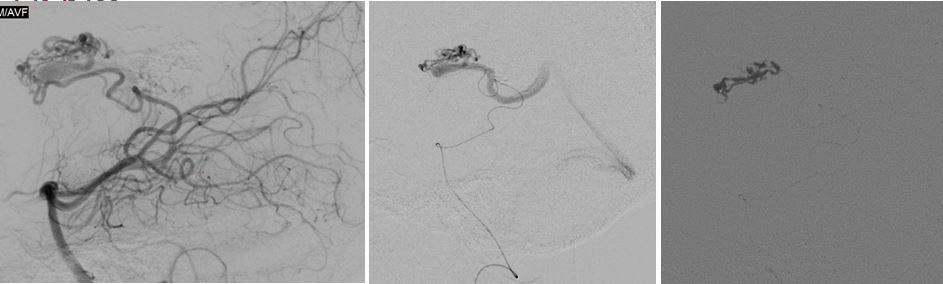

  • Pedicle-1:Post choroidal-Microcatheter navigation



embolization-session2

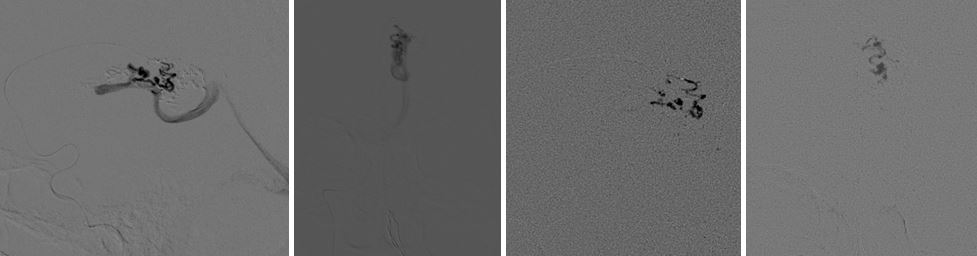

  • Pedicle-2: Pericallosal



pedicle2-pericallosal



Final control angio



Case 2

Patient presentation

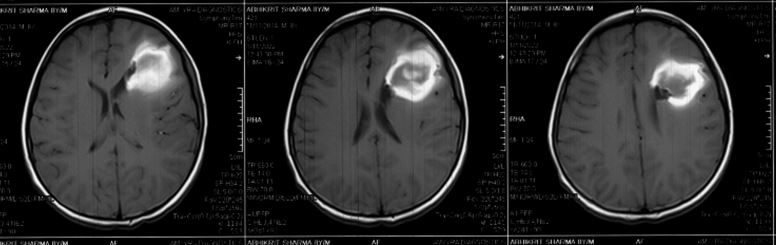

  • A 9 yrs boy with sudden severe headache



case2



case2-02

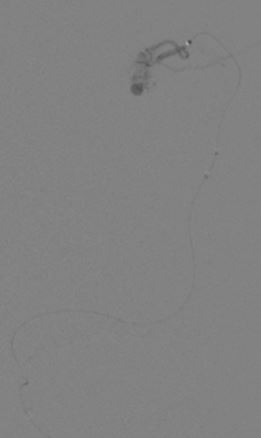

Superselective navigation, glue injection & control angio

superselective-navigation



Post embo CT





post-embo-CT



Follow-up MRI @1mo





follow-up-MRI



Case 3

Patient presentation

  • A 32/M; h/o seizures since 2 years
  • Headache f/b tonic posturing f/b LOC.
  • No deficits

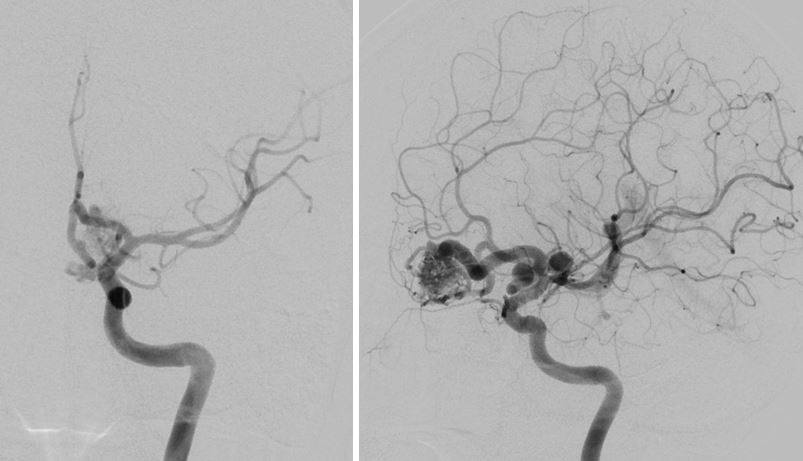

case3



Embolization

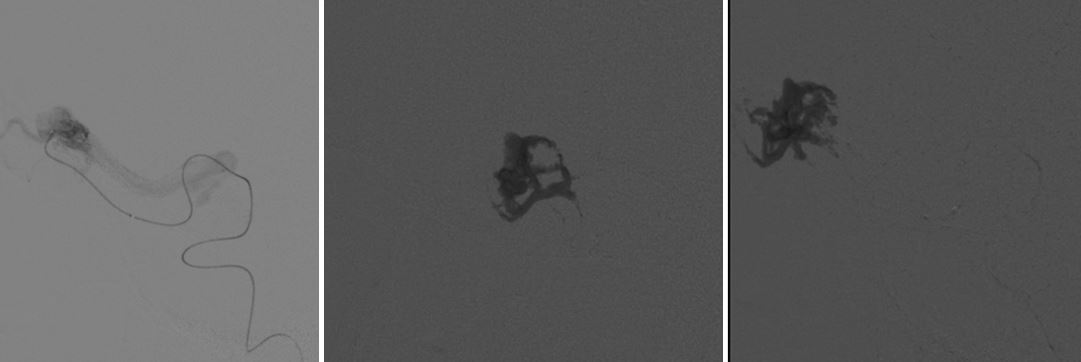

  • Pedicle-1: Onyx



embo-pedicle-onyx

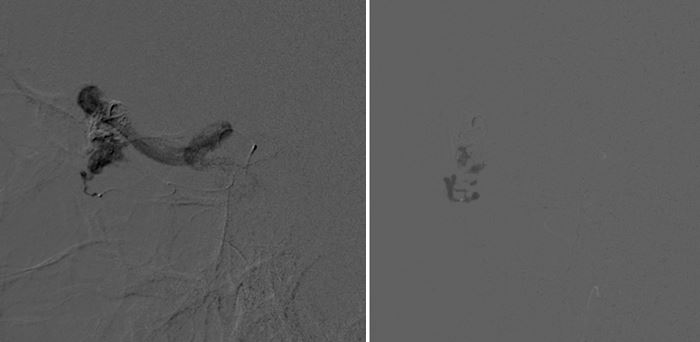

  • Pedicle-2: Glue



pedicle2-glue

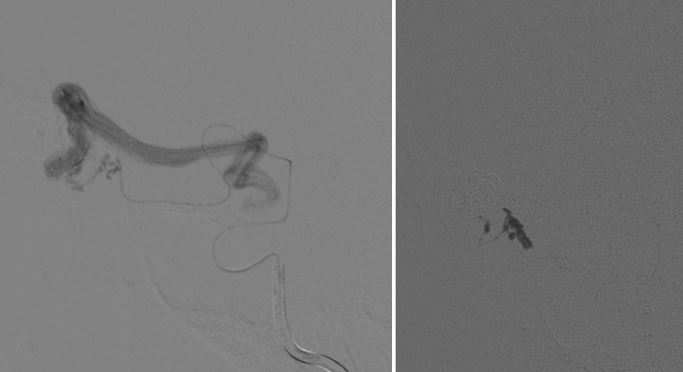

  • Pedicle-3: Glue



pedicle3-glue

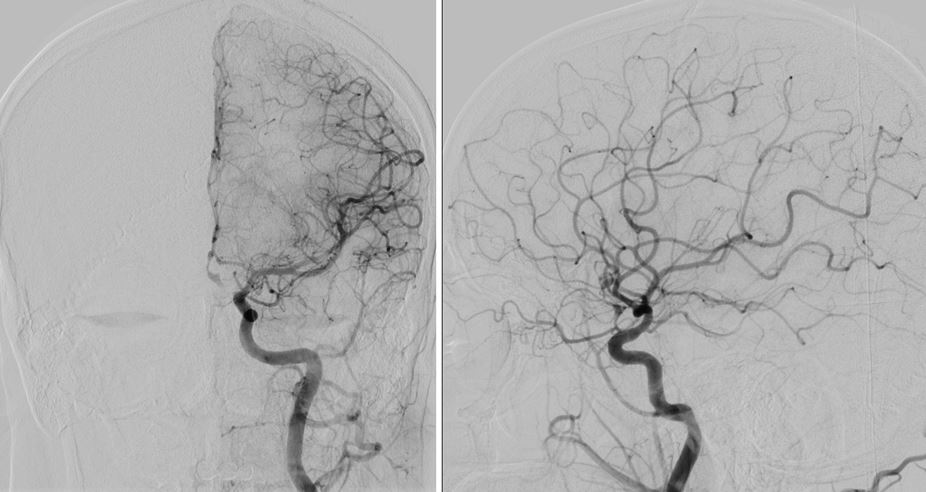

Final Control Angiogram





final-control-angio
Conclusion
  • Non-adhesive liquid embolic agents have, no doubt, enabled us to achieve curative embolization in a wide range of cerebral AVMs.
  • Yet NBCA (glue) still has its role as illustrated by our cases.
  • Glue can be the primary agent in a certain group of AVMs- e.g choroidal
