WEB at the Terminus: precise, simple, effective

Last update on May 28, 2025



A 52-year-old woman with an incidentally discovered ICA terminus aneurysm was treated using an intrasaccular approach, chosen for its precision and simplicity in a challenging wide-neck bifurcation anatomy. See how the case unfolded…

Case presentation
  • A 52-year-old woman presented with headaches following a minor fall.
  • A brain CT with contrast revealed an incidental, unruptured aneurysm at the right internal carotid artery (ICA) terminus. She had no family history of intracranial aneurysms or hemorrhage.

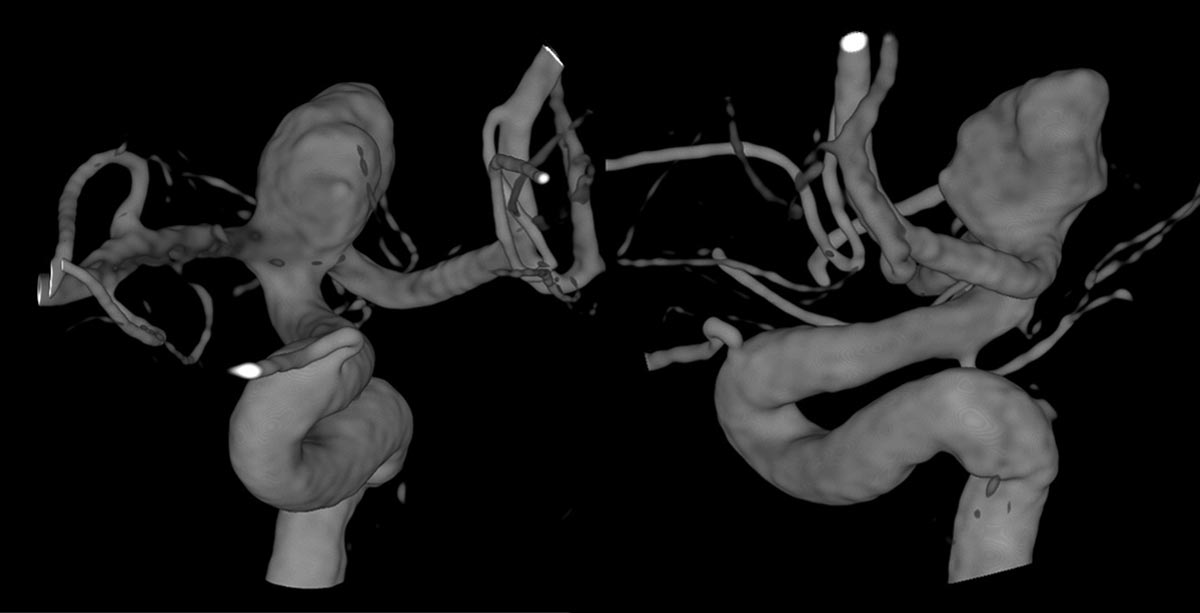

The DSA shows a saccular aneurysm with a regular shape at the ICA terminus, measuring 7 mm in maximal width, 6 mm neck width, and 9 mm depth.





Strategy

Powered by Quiz Maker



After multidisciplinary discussion, an endovascular approach with an intrasaccular device was selected:

  • WEB 10 x 5 mm

The decision was based on the aneurysm’s wide neck and bifurcation anatomy, where an intrasaccular solution offered effective occlusion without the need for reconstructive techniques or dual antiplatelet therapy.



Treatment

  • The procedure was performed under general anesthesia via a right femoral artery access, through a NeuronMax 0.088" 80 cm sheath.
  • A FargoMax 115 intermediate catheter was placed in the right ICA.
  • A VIA 33 microcatheter was advanced into the aneurysm sac over a Synchro Soft 0.014" microwire.

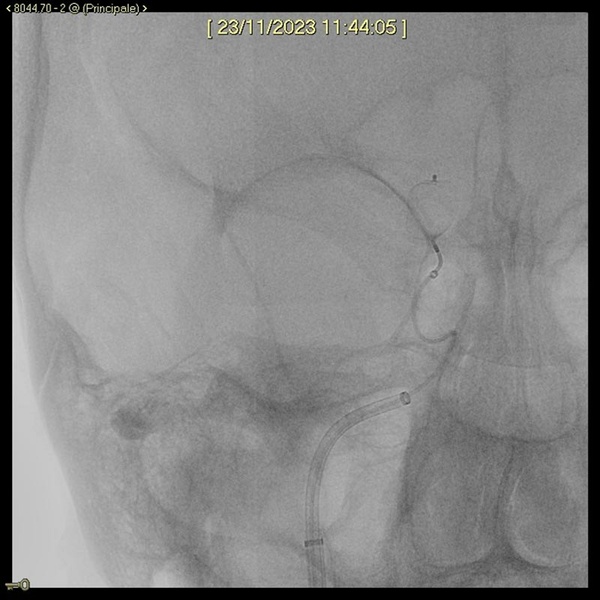

A 10 x 5mm WEB SL device was deployed within the aneurysm.





Before detachment, the WEB already showed significant contrast stagnation within the sac — a clear sign of early flow disruption.

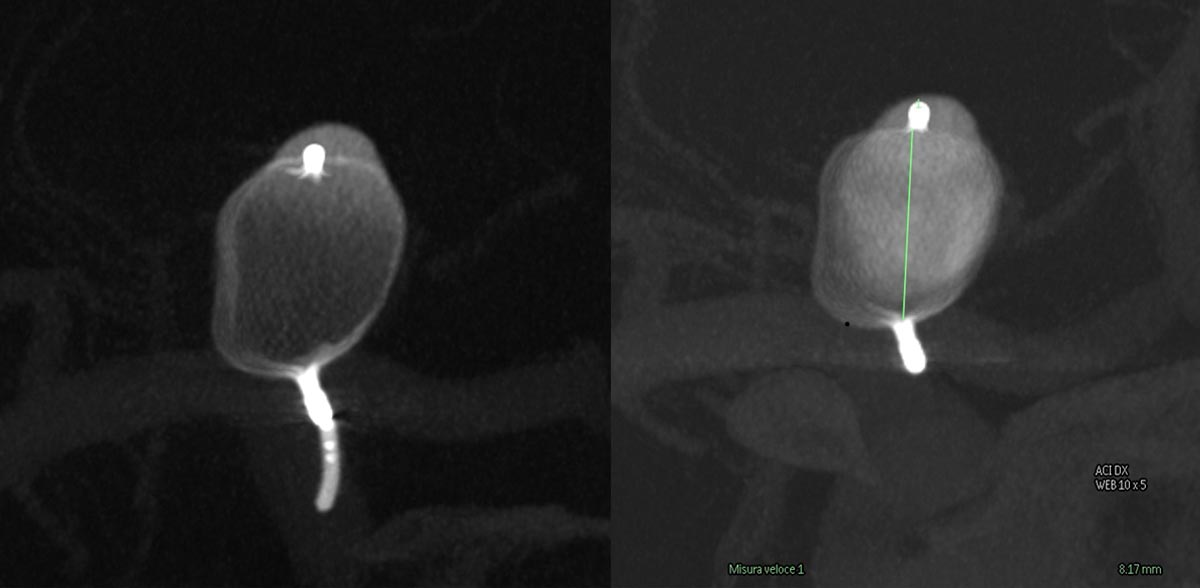

3D-Rotational angiography with diluted contrast (20%) before and after detachment confirmed correct device placement and stability, without parent vessel compromise.

Before detachment

After detachment

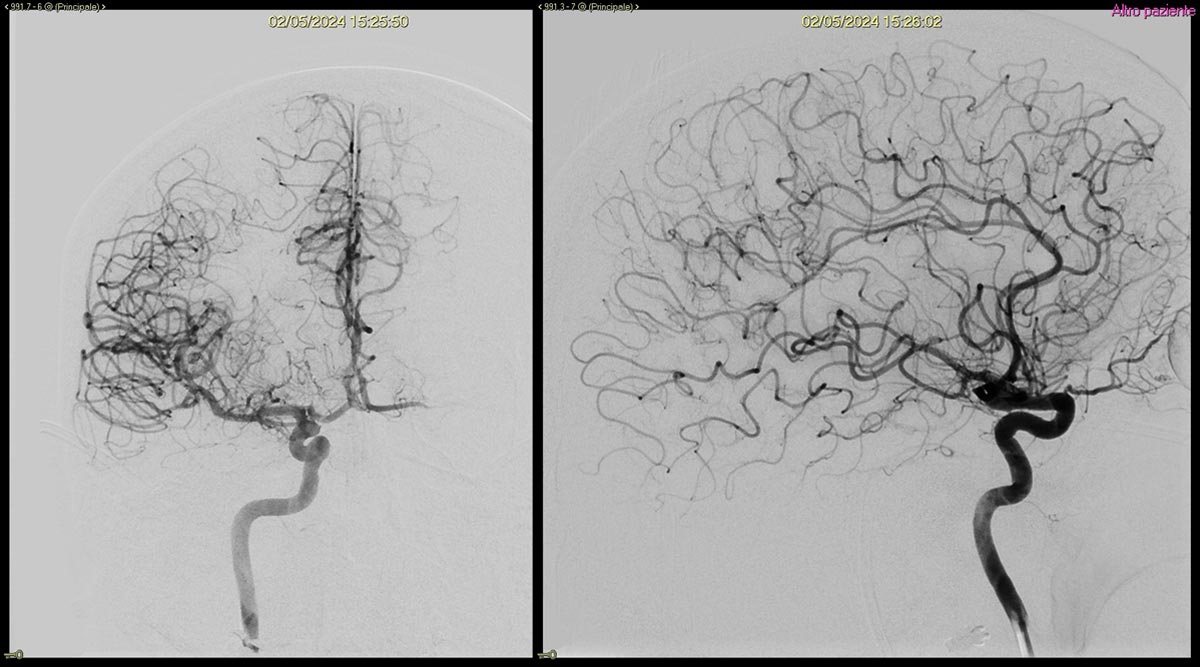

Final angiograms confirmed optimal WEB positioning, contrast stasis with parent vessel patency.





Follow-up – 6 months DSA





Conclusion

  • This case demonstrates that WEB embolization is a safe and effective option for the treatment of wide-neck ICA terminus aneurysms: the device enabled precise placement, immediate contrast stasis, and vessel preservation, without the need for adjunctive techniques or prolonged antiplatelet therapy.
  • Larger aneurysms with regular morphology and a favorable neck entry angle may represent good candidates for WEBs, especially when oversizing and optimal neck coverage can be achieved.
  • Careful anatomical selection and precise deployment remain key to successful treatment outcomes.

Information and/or case images provided may not represent the approved indication for use for each country/market. Please refer to the Instruction for Use (IFU) in the specific market/country that you are looking into. Intended for Healthcare Professionals in EMEA Only. Legal Manufacturer: MicroVention, Inc. / EU Authorized Representative: MicroVention Europe S.A.R.L. WW
