The Road not taken – a rare case of tandem stroke

Last update on May 21, 2023

Discover the case of a 31-year-old female patient presenting with right hemiplegia and aphasia, unraveling the complexity of a rare tandem stroke involving the left common carotid artery and left M1 middle cerebral artery occlusions.

Case presentation

Patient presentation

  • 31-year-old female patient,
  • Right hemiplegia and aphasia for 5 hours
  • NIHSS 16
  • no comorbidities

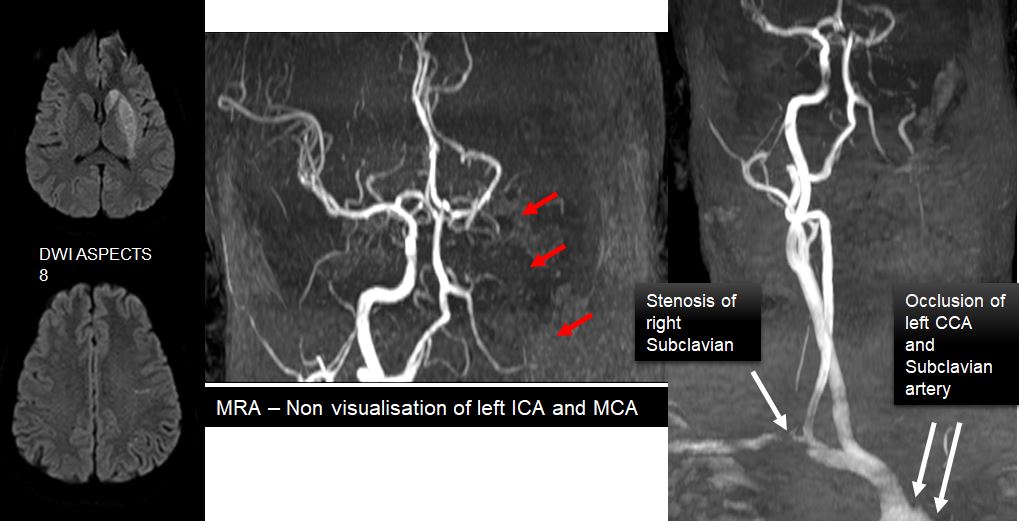

mra-occlusion



CTA was planned for better characterization



CT angiogram

  • Diagnosis: Left CCA and Left M1 MCA Tandem occlusion, Takayasu Arteritis



cta-occlusion



Decision

  • DSA, assess the circulation & decide on procedure



right-cca-angio

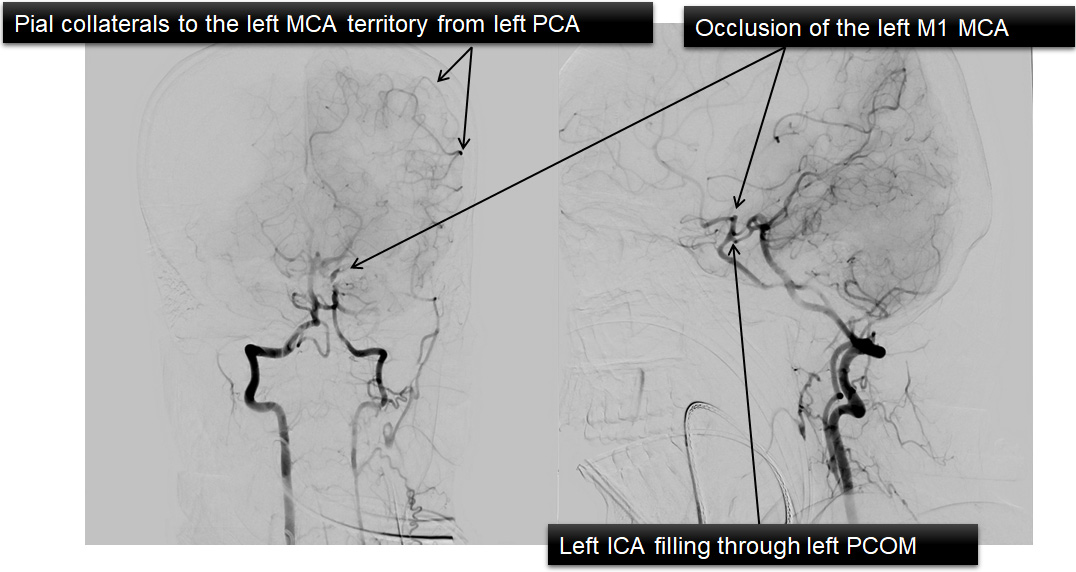

Right vertebral angiogram



right-vertebral-angio

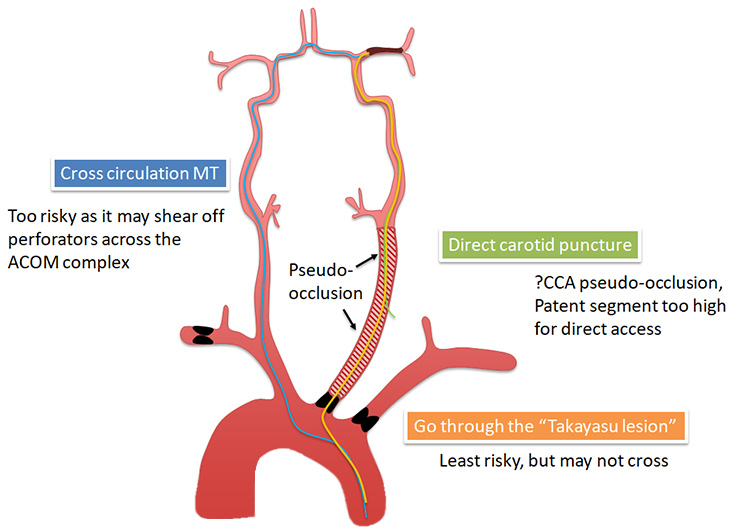

How do we access and treat the left M1 MCA clot?



access-left-mca-slot
Intervention

Intervention

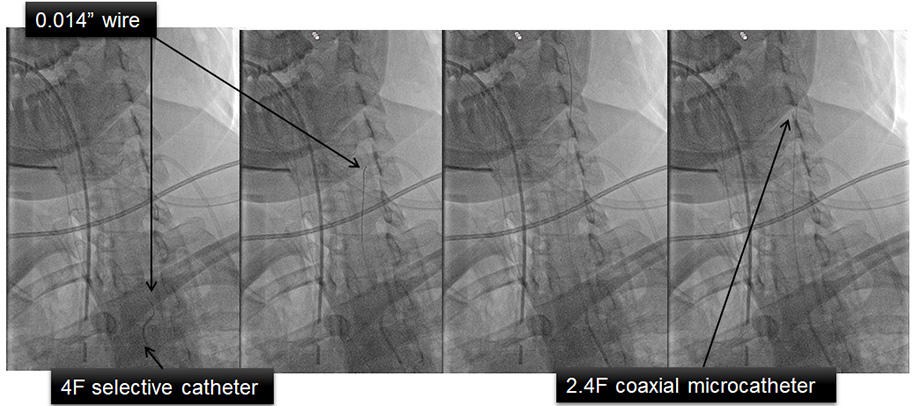

Crossing the “Takayasu” lesion with coaxial catheters

  • A 0.035” hydrophilic angled tip wire failed to cross the CCA occlusion



crossing-takayasu



inject-berenstein



Navigating the guide sheath to the ICA



navigating-guide-sheath

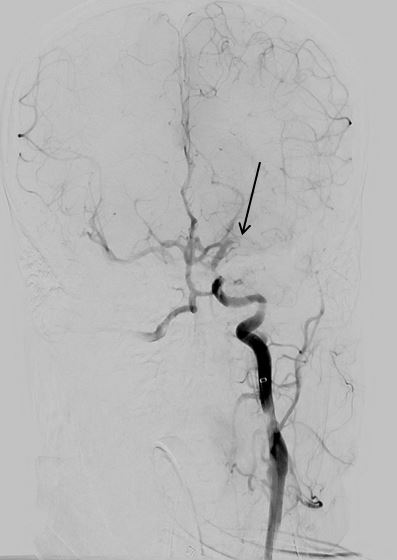

Left ICA angiogram demonstrating the left M1 occlusion



left-ica-angio

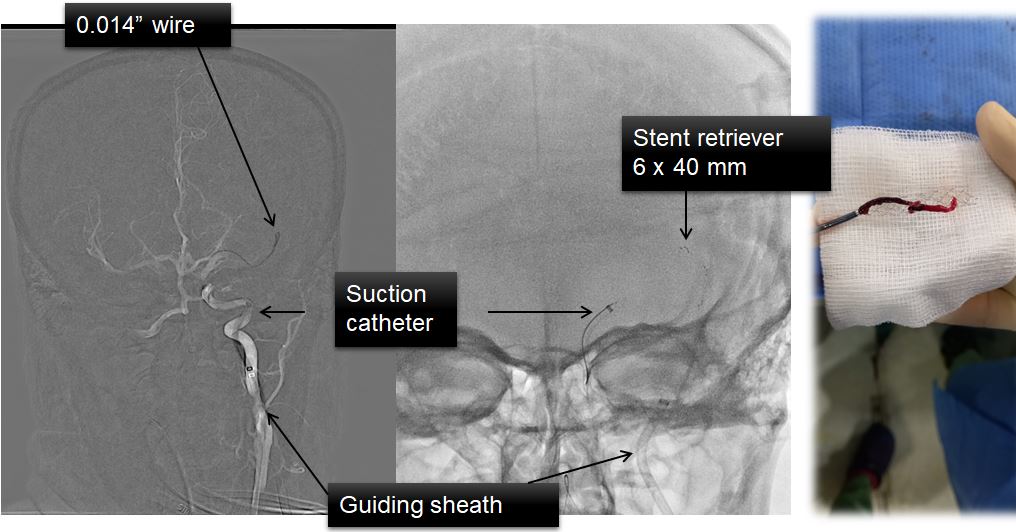

Mechanical thrombectomy (Solumbra technique)



mechanical-thrombectomy



Post MT, TICI 3 reperfusion

  • Good cross circulation through ACOM and PCOM
  • The Takayasu lesion in the LCCA origin did not warrant treatment



post-mt



A miraculous escape! It was not to be…

  • Reperfusion hemorrhage (PH2) on immediate post-intervention SWI



reperfusion-hemorrhage



Underwent decompression craniectomy (floating) and evacuation of sICH



decompression



Rx

  • IV Methylprednisolone 500 mg for 5 days followed by oral corticosteroids; After a brief period of neurological improvement, her sensorium worsened (E2VtM5)
  • Brain imaging was repeated.
  • Diffuse hemispheric cortical restricted diffusion, left MCA was patent; areas of cortical hyperperfusion on ASL
  • ? Post-ictal changes/ ischemic



brain-imaging01



  • She improved with medical management; MRI was repeated 10 days later



brain-imaging02



  • Resolution of the cortical diffusion restriction; however the LMCA branches were attenuated with hypoperfusion on ASL (? Cause)
  • Discharged on day 30 of admission, mRS 1 at 12 months follow up
Learning points
  • Arteritis at the CCA origin can rarely cause a tandem occlusion stroke; can be confusing on initial imaging; Always do a CTA in young strokes!
  • Attempt must be made to cross the occlusion at CCA origin with a suitable technique and “Dottering” helps
  • Cross circulation is usually good if the patient has a large penumbra in carotid occlusions; hence, addressing the proximal lesion is not a necessity.
  • The goal of treatment should be to address the acute event (“MCA occlusion”) rather than getting a beautiful result
  • Arteritis affects a young population, and the final clinical outcome may be favorable, irrespective of immediate post-MT outcome
