ICA-M1 intracranial dissection EVT

Last update on October 26, 2025
Amedeo CERVO

This clinical case presents a 28-year-old female patient presenting with a wake-up stroke, managed with endovascular treatment.

  • 28 yo, Female
  • Wake up stroke (LKW 02.00)
  • NIHSS: 15
  • No i.v. lysis
  • CTA: 10.25
  • Groin puncture: 11.07

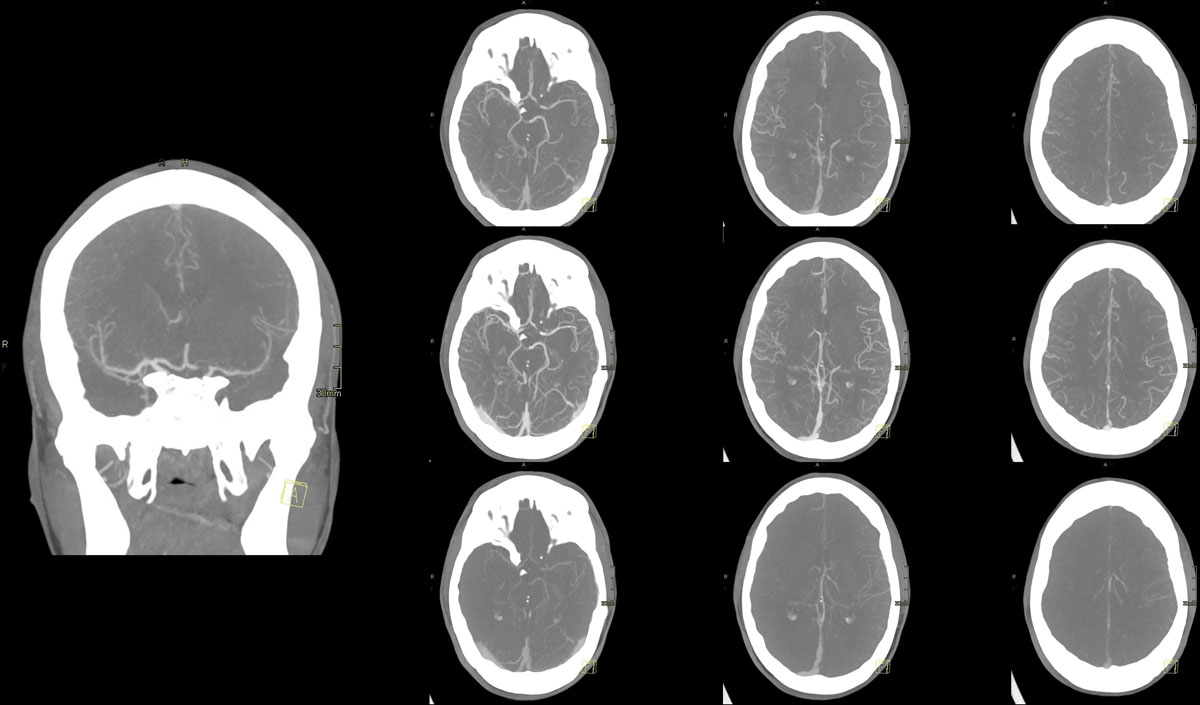

CT – CTA - CTP

ica-m1-intracranial-dissection-evt-figure1
ica-m1-intracranial-dissection-evt-figure2

ica-m1-intracranial-dissection-evt-figure3

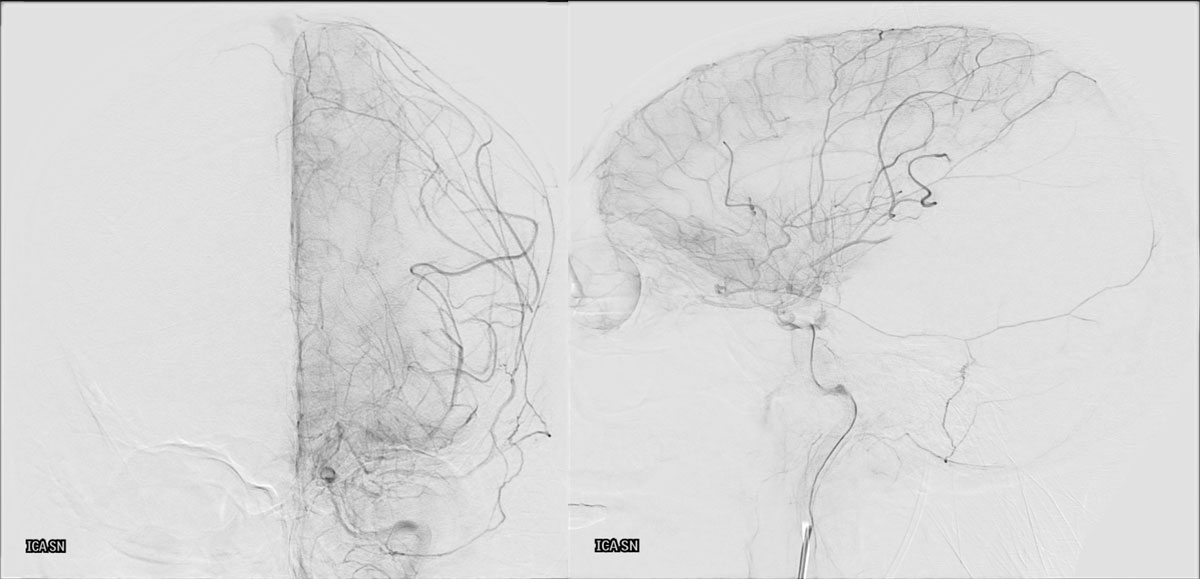

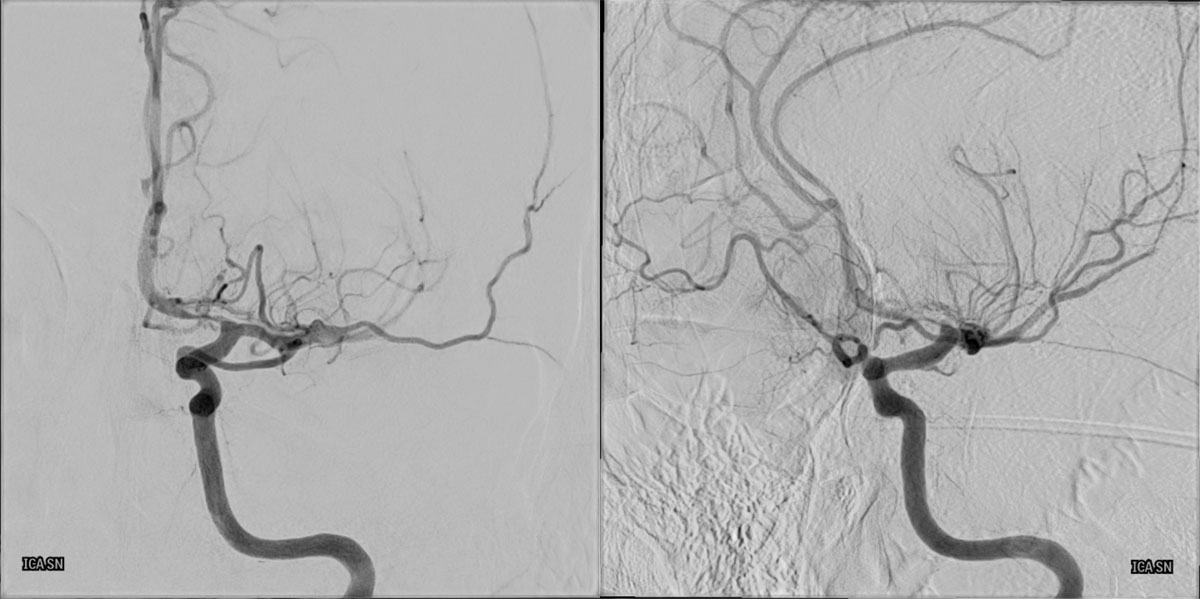

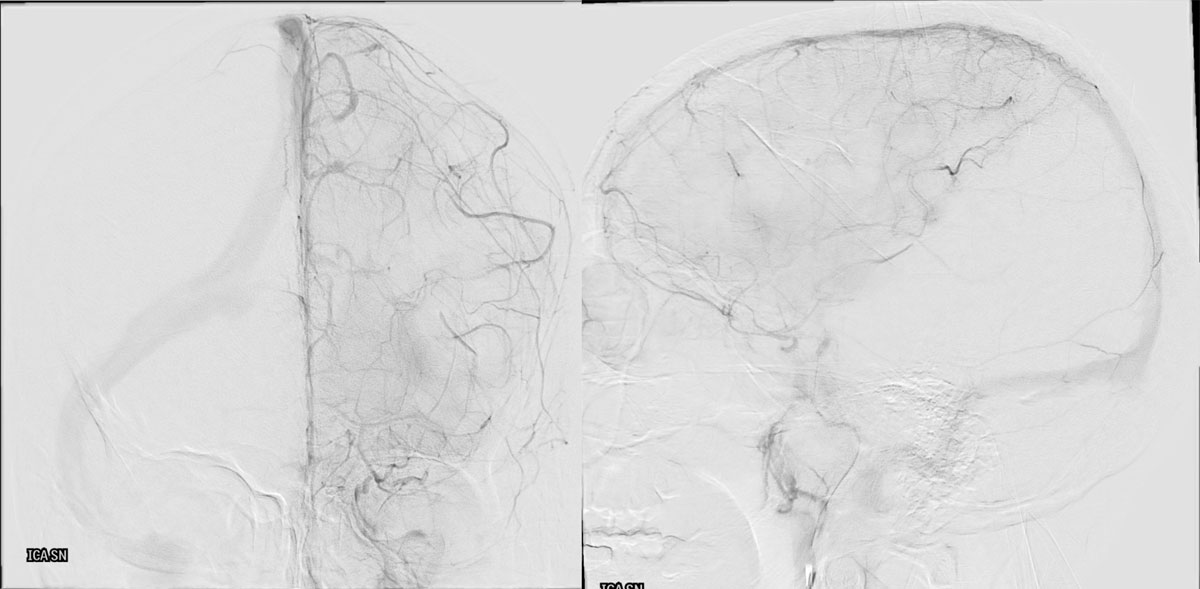

DSA

ica-m1-intracranial-dissection-evt-figure4

ica-m1-intracranial-dissection-evt-figure5

ica-m1-intracranial-dissection-evt-figure6

ica-m1-intracranial-dissection-evt-figure7

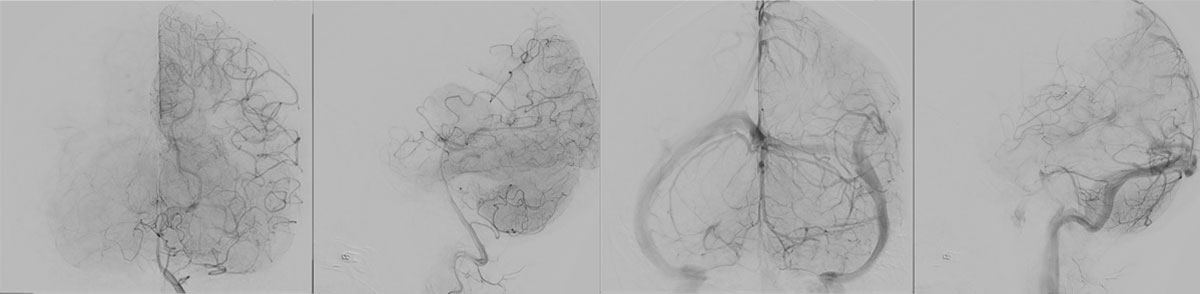

L - VERT

ica-m1-intracranial-dissection-evt-figure8

ica-m1-intracranial-dissection-evt-figure9

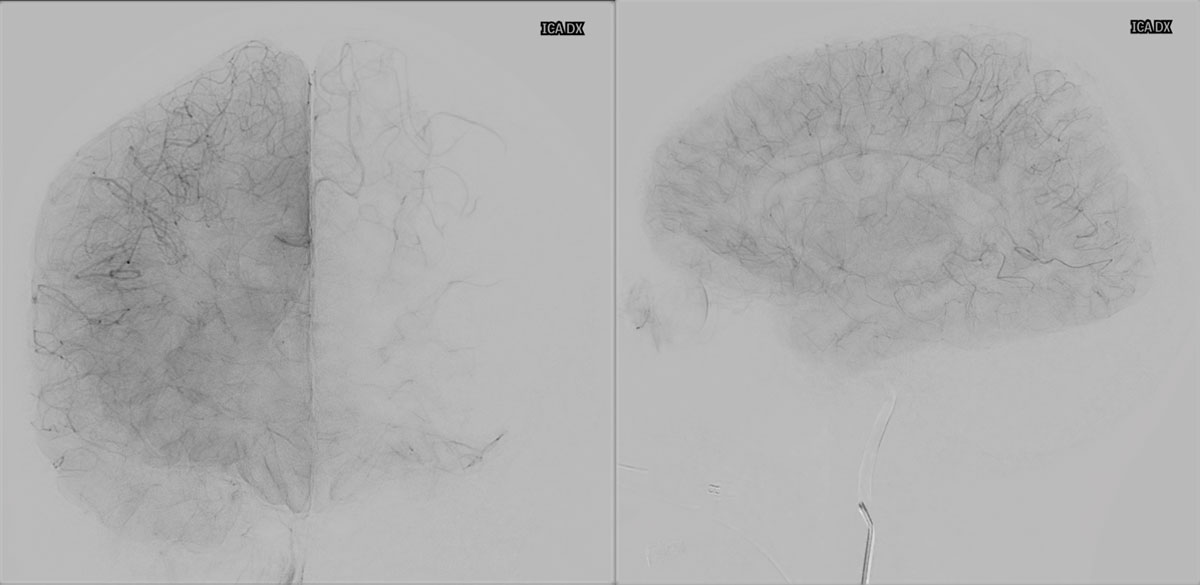

L - ICA

ica-m1-intracranial-dissection-evt-figure10

ica-m1-intracranial-dissection-evt-figure11

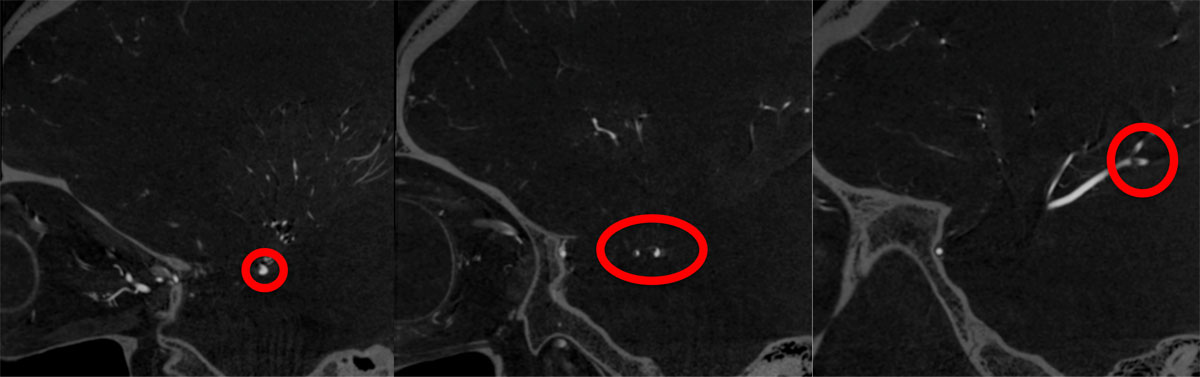

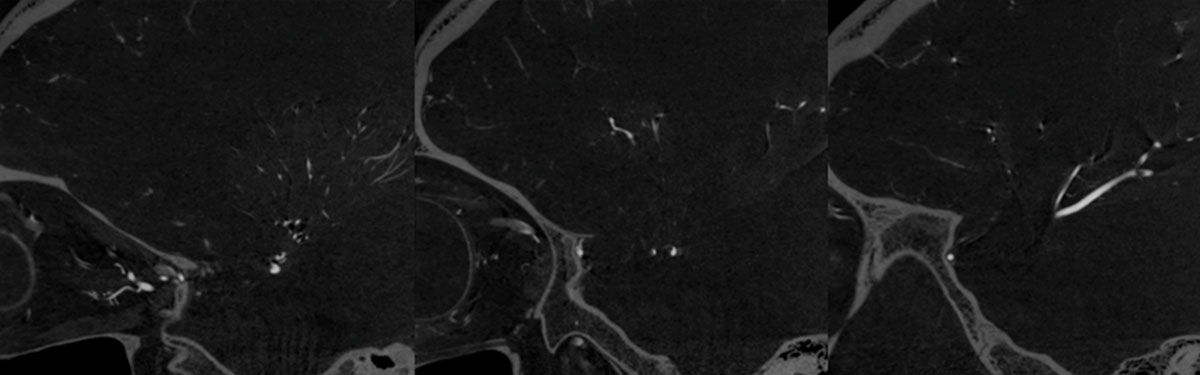

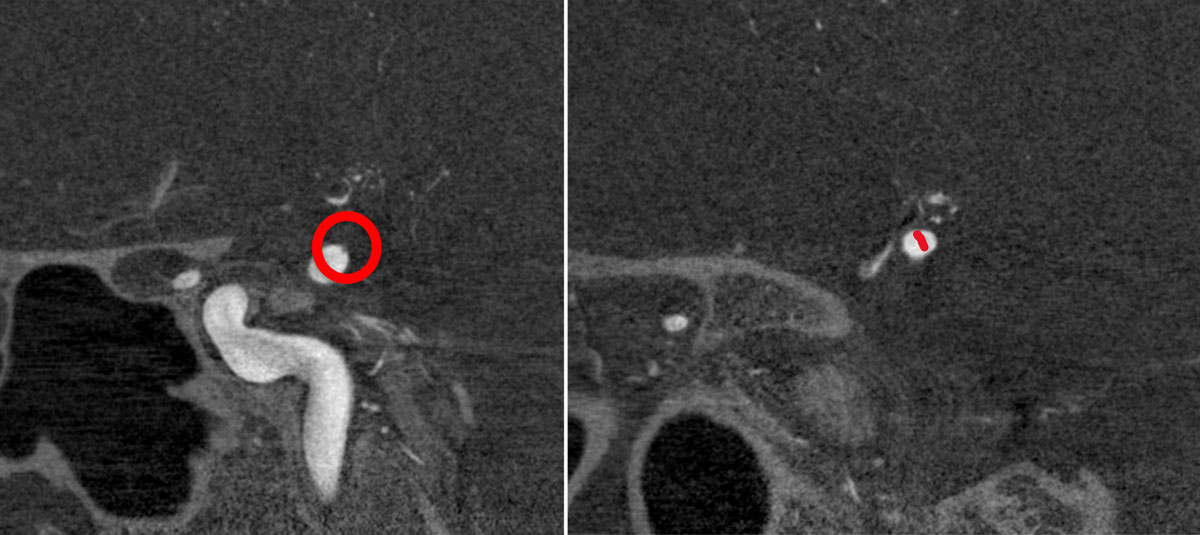

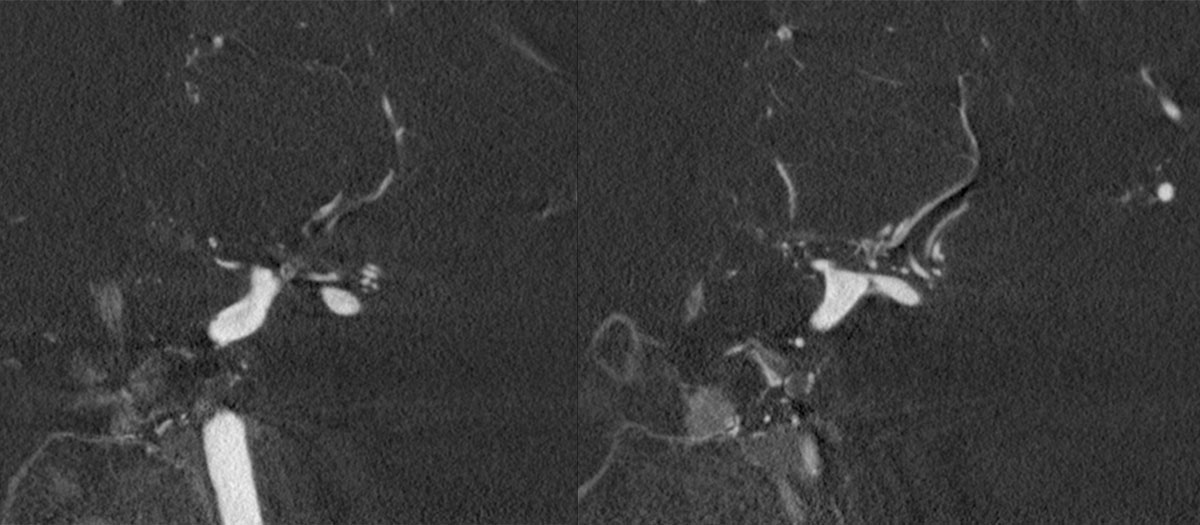

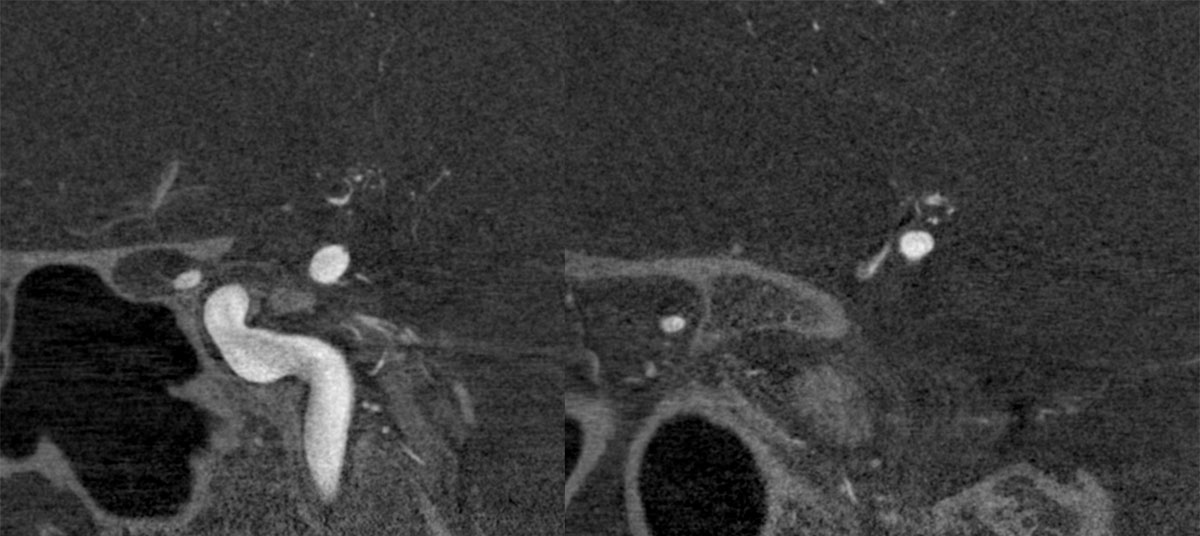

VASO-CT

ica-m1-intracranial-dissection-evt-figure12

ica-m1-intracranial-dissection-evt-figure13

ica-m1-intracranial-dissection-evt-figure14

ica-m1-intracranial-dissection-evt-figure15

ica-m1-intracranial-dissection-evt-figure16

ica-m1-intracranial-dissection-evt-figure17

ica-m1-intracranial-dissection-evt-figure18
  • BOBBY™ Balloon Guide Catheter
  • Select-Sim

EVT Strategy

  • Inflate the balloon, in order to dilate the true lumen
  • MCA access with the softest system possible
  • Open a stentriever for 20 mins with antiplatelet infusion
  • Resheath the stentriever, check patency, if not stent-deployment
ica-m1-intracranial-dissection-evt-figure19

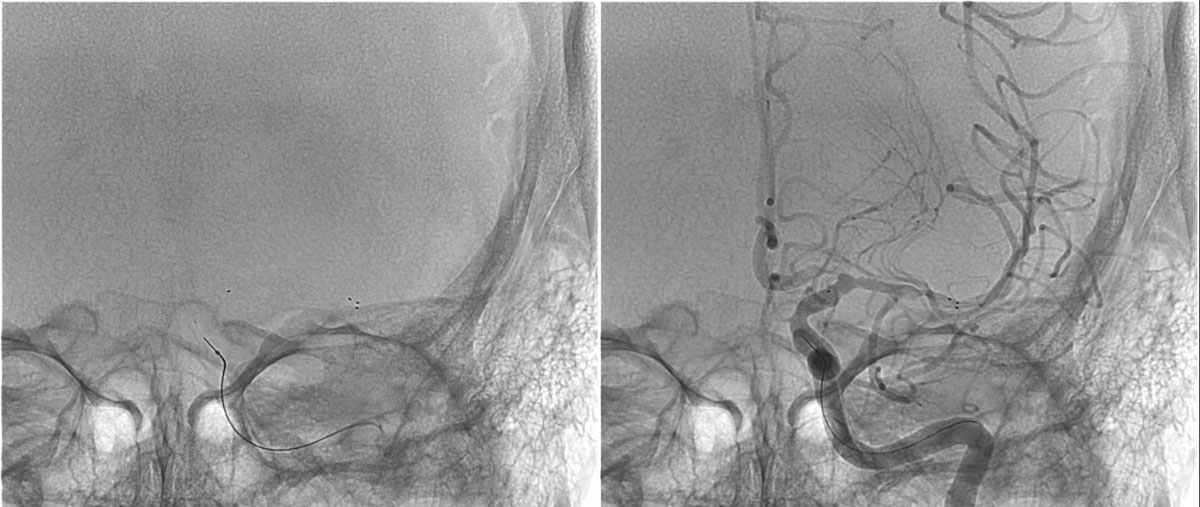

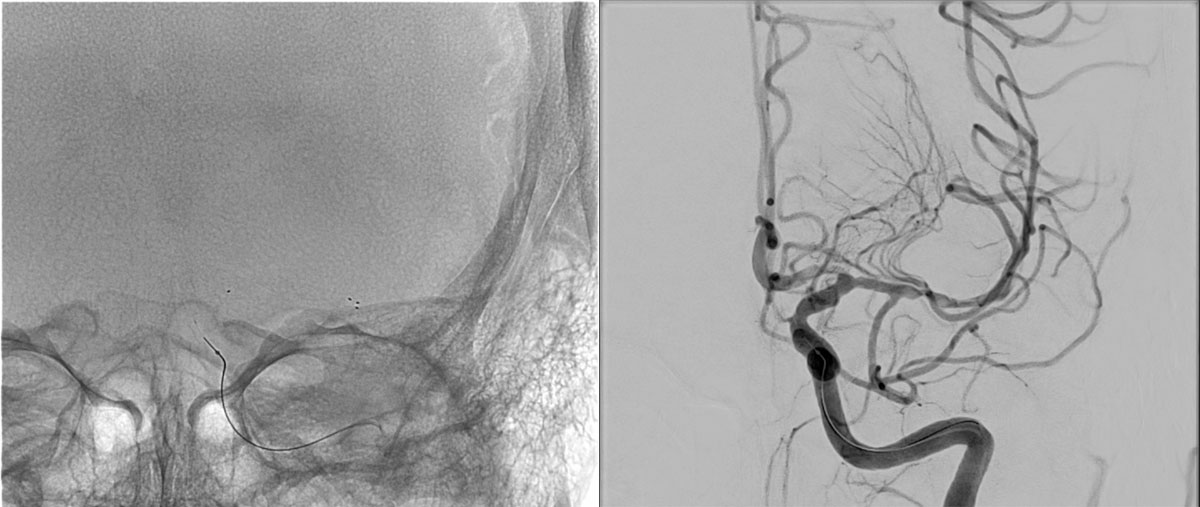

Headway™ DUO 156cm / Traxcess™ 14

ica-m1-intracranial-dissection-evt-figure20

CatchViewMini20

ica-m1-intracranial-dissection-evt-figure21

CatchViewMini20

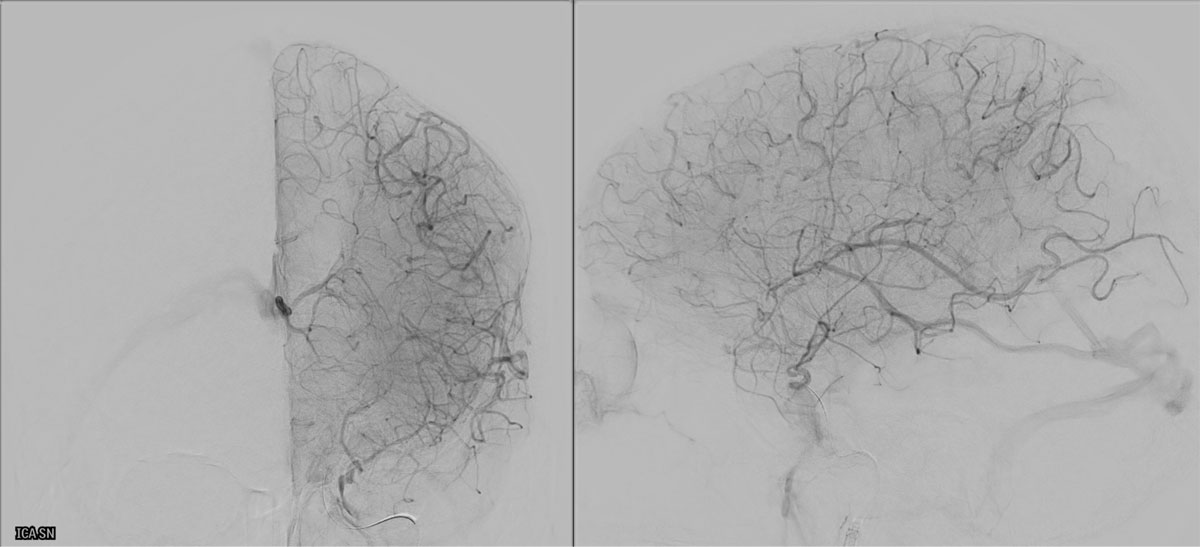

Cangrelor i.v.
30 mcg/kg bolus /- 4 mcg/kg/min infusion
ica-m1-intracranial-dissection-evt-figure22

ica-m1-intracranial-dissection-evt-figure23

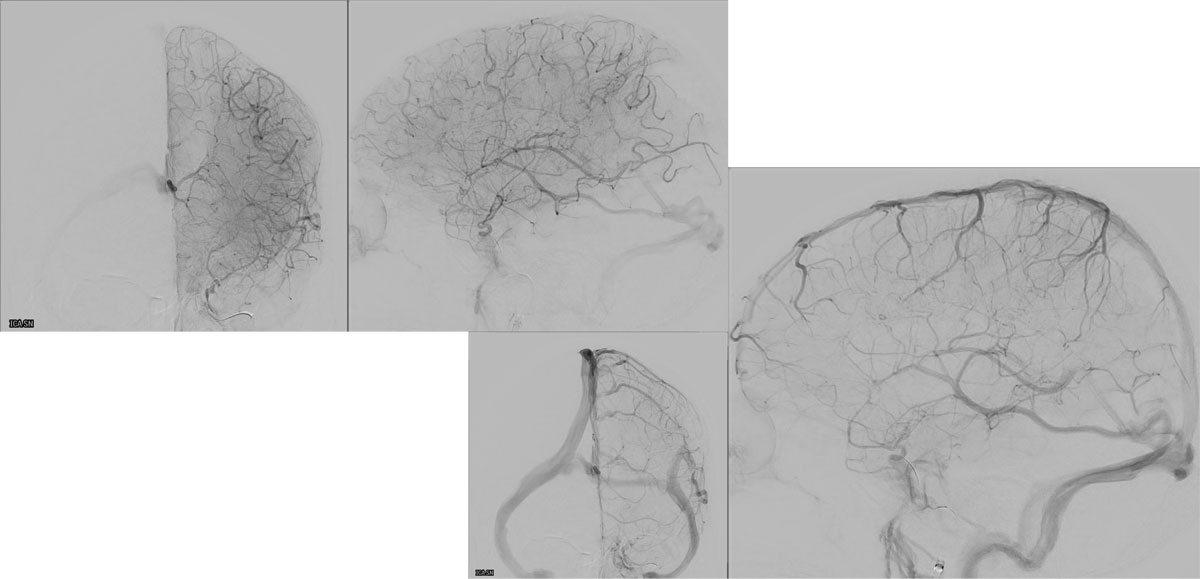

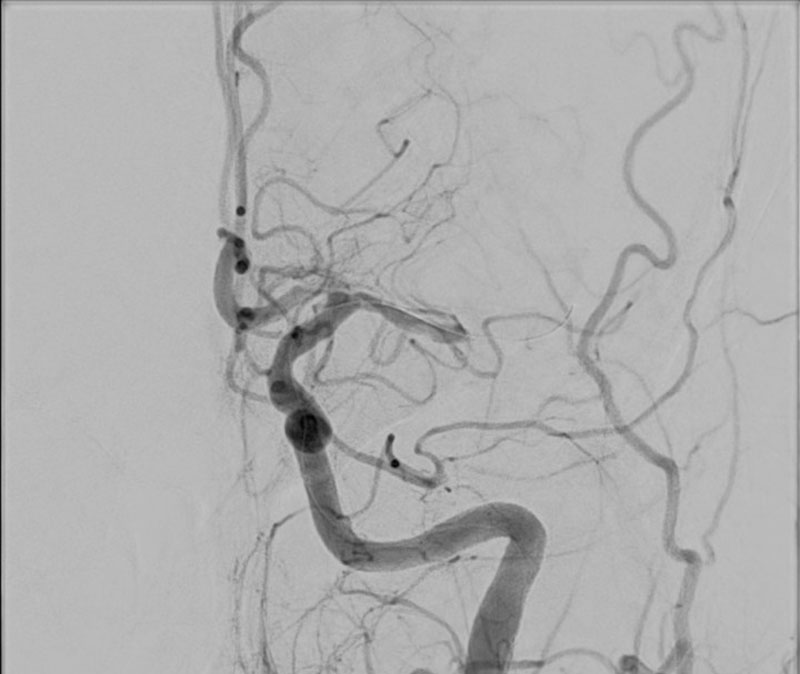

20 mins later

ica-m1-intracranial-dissection-evt-figure24

ica-m1-intracranial-dissection-evt-figure25





ica-m1-intracranial-dissection-evt-figure26

ica-m1-intracranial-dissection-evt-figure27

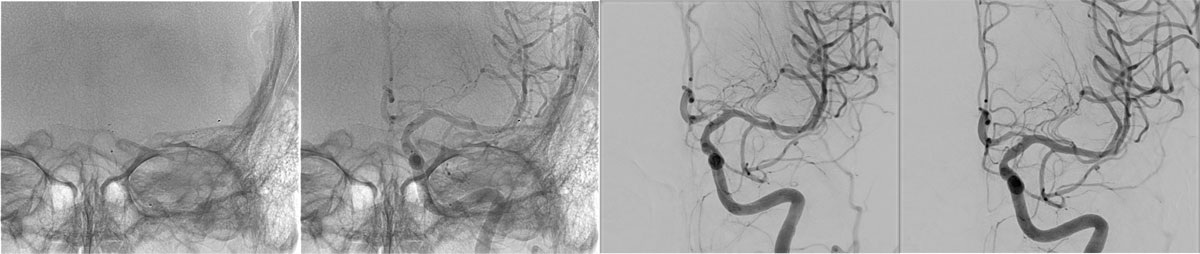

Headway DUO 156cm
ica-m1-intracranial-dissection-evt-figure28

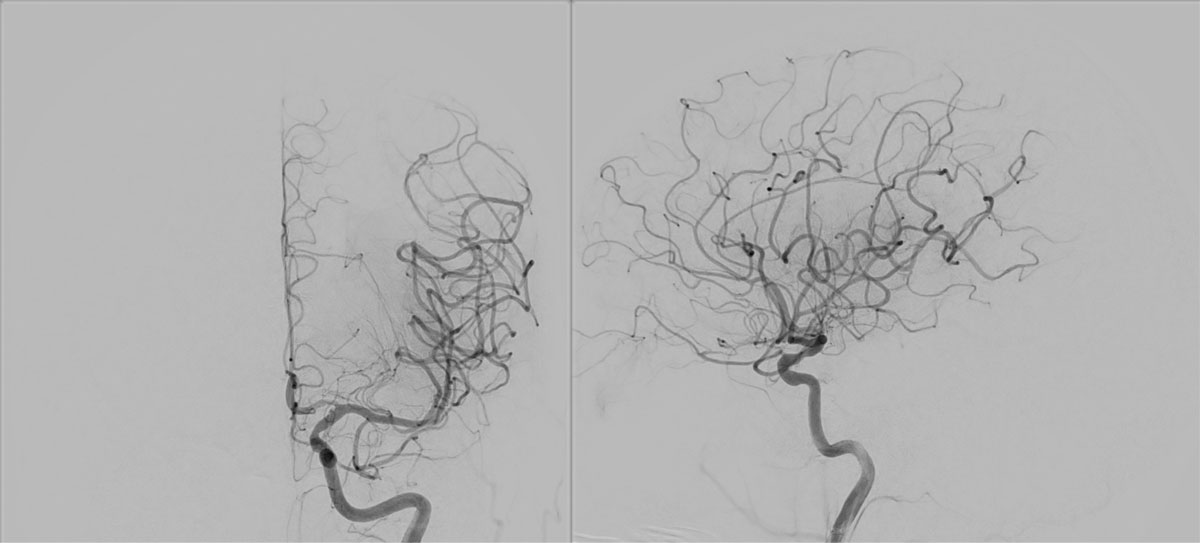

pEGASUS 4x20mm



ica-m1-intracranial-dissection-evt-figure29

ica-m1-intracranial-dissection-evt-figure30

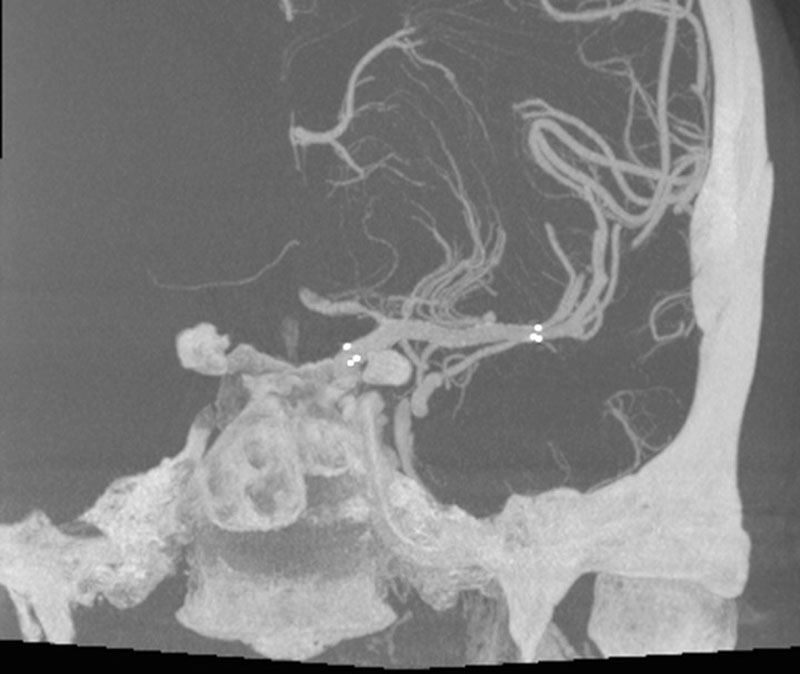

VASO-CT post

ica-m1-intracranial-dissection-evt-figure31

24h CT-scan

ica-m1-intracranial-dissection-evt-figure32

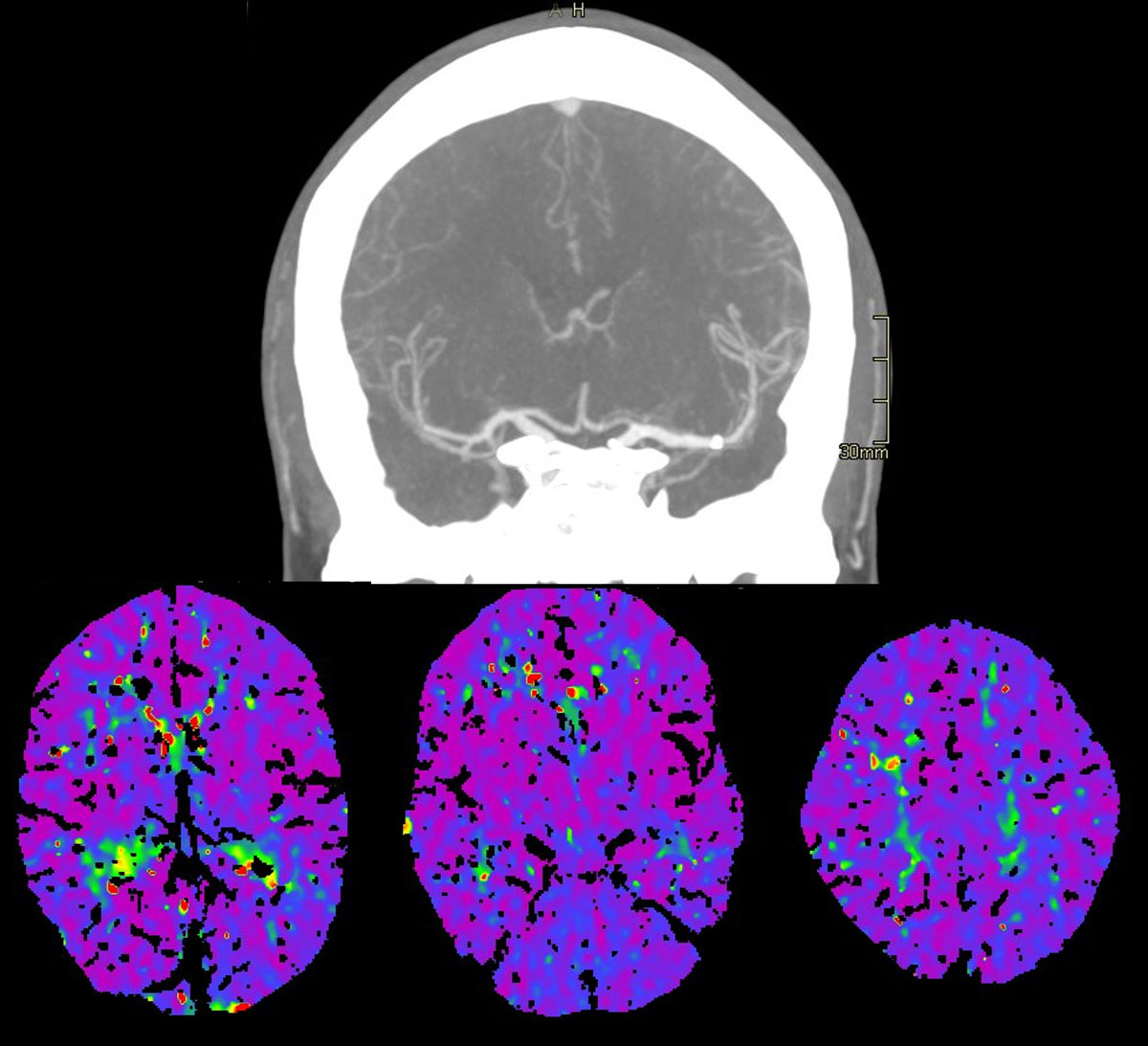

24h CTA and CTP

ica-m1-intracranial-dissection-evt-figure33

6 months DSA follow up

ica-m1-intracranial-dissection-evt-figure34


Supported by Terumo Neuro
