A comatose patient with fixed and dilated pupils, and a very good prognosis. The power of neuroangiography

Last update on March 2, 2023

Find out how Dr Mazen Noufal treated a 32-year-old female with headache.

Case presentation



  • A 32-year-old with HTN presented with headache
  • GCS 15

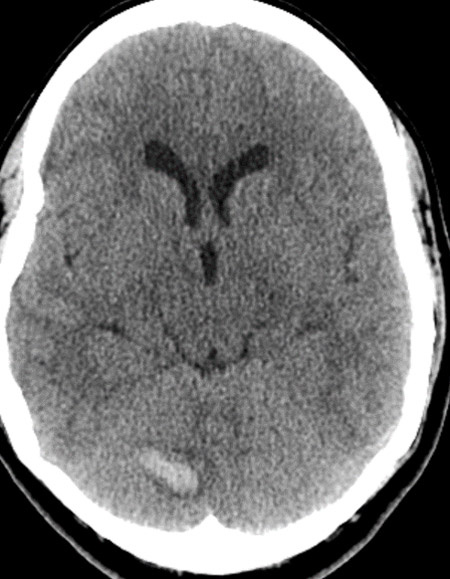

  • Head CT: Cerebellar bleed
  • Transfer to our center planned

While still in ED:

  • Patient became lethargic
  • Developed left 3RD CN palsy involving the pupil

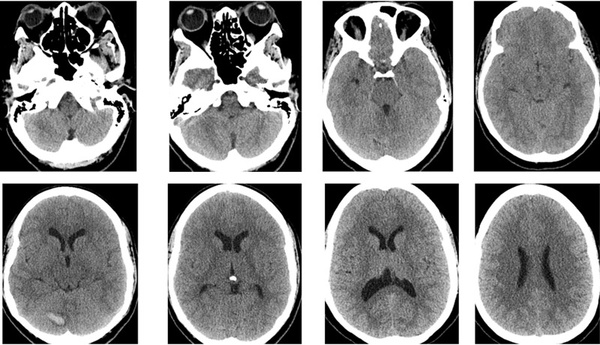

  • Repeat Head CT: stable





Head CTA/CTV

  • No clear thrombosis
  • Patent deep venous system





Upon arrival to our hospital:

  • Patient was non-responsive with bilateral fixed and dilated pupils
  • Absent oculocephalic reflexes
  • Got intubated

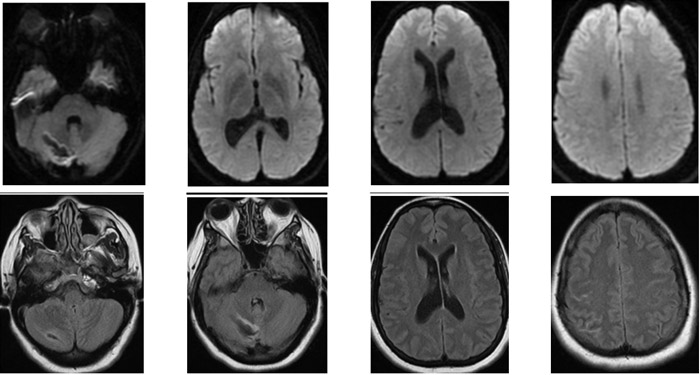

Brain MRI

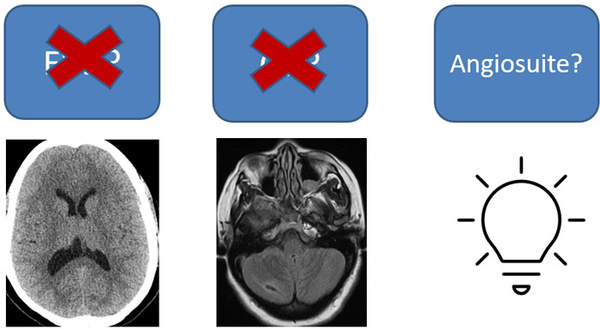

Next step in Management

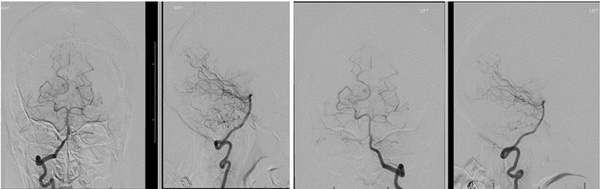

No aneurysms or arteriovenous shunting



Left ICA Run

You do not have permission to view this object.

Prolonged arterial and capillary phases

Delayed venous phase

You do not have permission to view this object.

Impaired flow in dural sinuses

Stenosis/thrombosis in right TS



Cerebral Venous System

Figure 7

Cavernous sinus and orbital venous thrombosis. Responsible for 3rd CN palsy and proptosis.
Venous thrombosis led to cerebellar bleed.



Venography and Venous Manometry

  • Severe right Transverse Sinus stenosis
  • Superior Sagittal Sinus: 55 mm Hg
  • Right Sigmoid Sinus: 25 mm Hg
  • Gradient: 30 mm Hg
You do not have permission to view this object.
Management

Venography and Venous Manometry

  • IV Heparin
  • TS balloon angioplasty
  • TS Angiojet thrombectomy
  • Raise MAP to improve cerebral perfusion pressure
  • Transverse Sinus stenting? NO
  • Acute thrombosis state may cause stent thrombosis

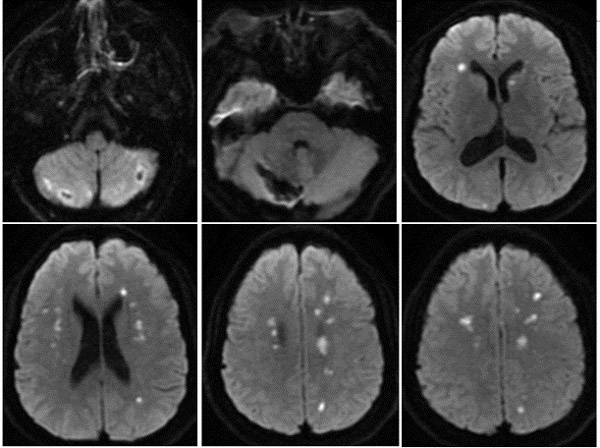

MRI-24 hours

  • Bilateral border-zone infarcts
  • Attributed to decreased cerebral perfusion



Post-op Course (3 days)

  • Patient remained comatose. GCS 3
  • Fixed and dilated pupils
  • Absent oculocephalic reflexes
  • Comfort care/PEG-trach were raised by staff
  • EVD was contemplated but not placed
  • Key problem is reduced cerebral perfusion, not IC



Day-4, Back to Angiosuite

  • ASA and Plavix given
  • Perfusion time was less prolonged
  • Venous grading pressure remained 30 mm Hg
You do not have permission to view this object.



  • Right transverse sinus stented
  • Pressure gradient eliminated
  • SSS pressure dropped to 25 mm Hg



You do not have permission to view this object.



Post-op Course

  • Patient woke up
  • Extubated in 48 hours
  • Discharged in 10 days
  • On Dabigatran
  • Ophthalmoplegia gradually improved
  • Returned to work in 3 months with no deficits
