Management of a complex CCF case

Last update on November 28, 2022

Find out how Dr Jagadish Annapureddy managed a complex CCF case.

Case presentation
  • Presented with proptosis of the left eye of insidious onset, complete ptosis, conjunctival congestion and double vision for one month
  • No previous h/o trauma or neurosurgery
Management of complex CCF case

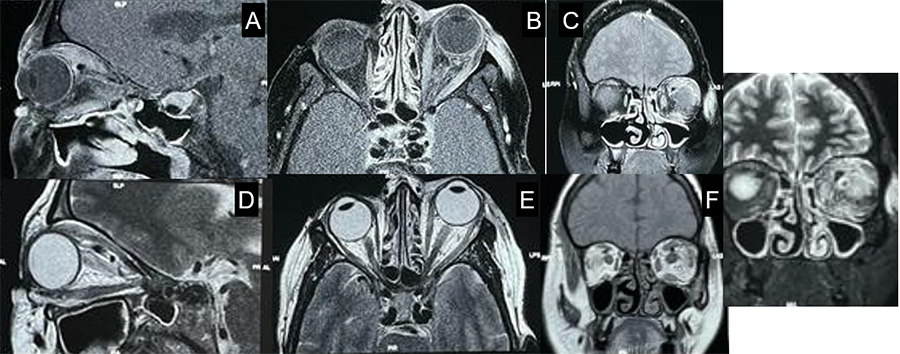

Pre-procedure MRI

Management of complex CCF case

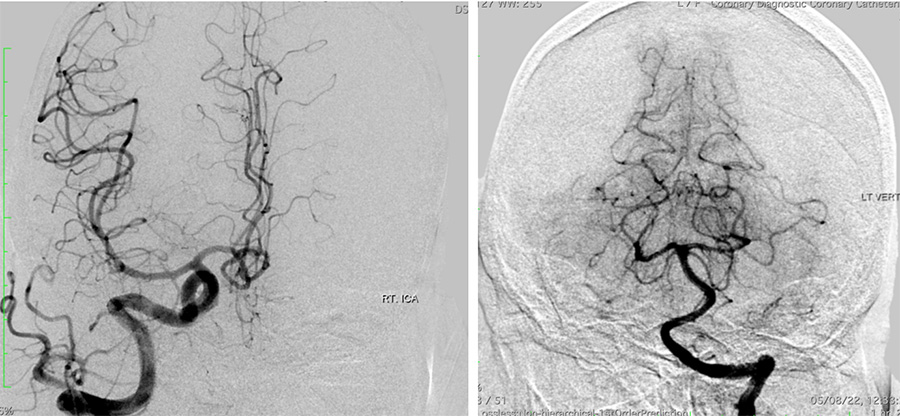

No CCF filling

Management of complex CCF case

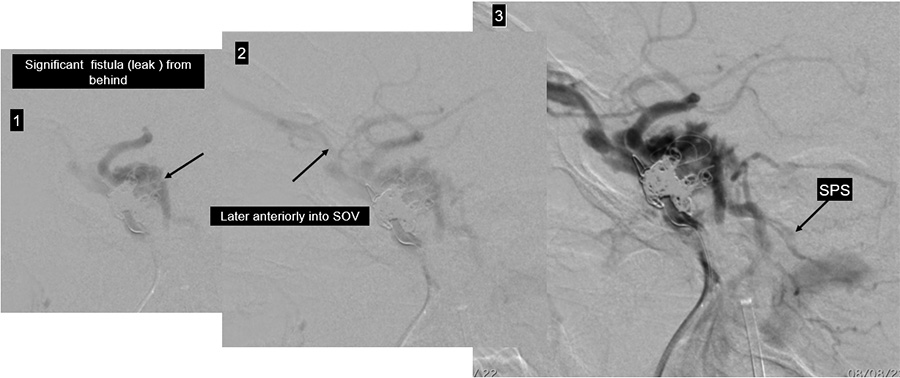

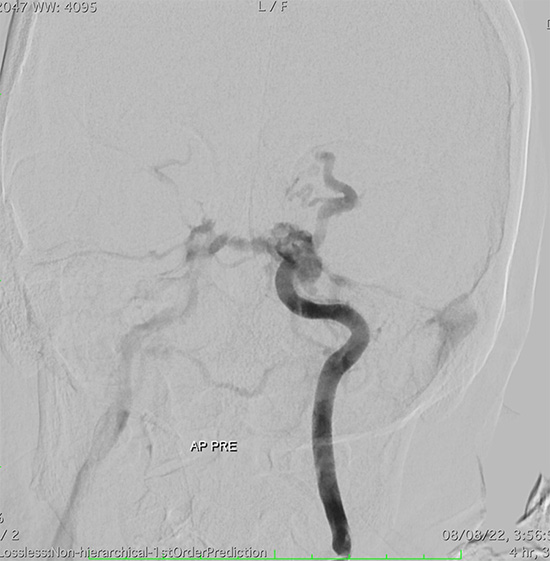

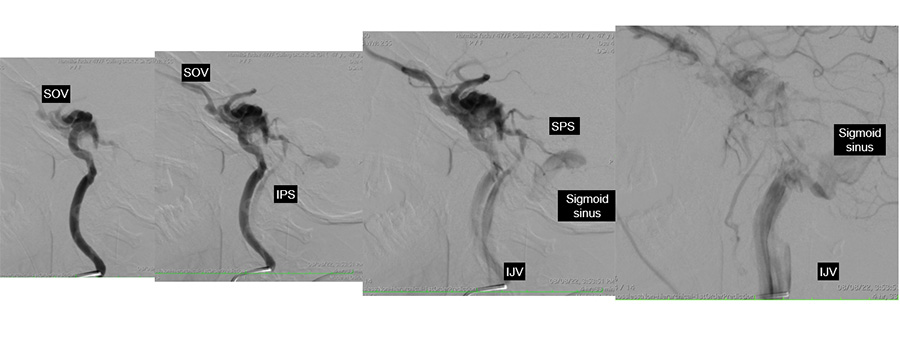

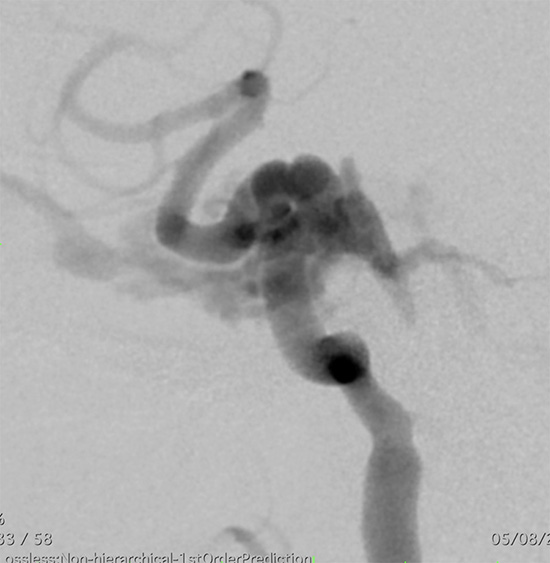

Cross flow  / LT ICA LAT PRE

Management of complex CCF case

LT ICA PRE LAT

Management of complex CCF case

LT ICA TOWNE PRE

Management of complex CCF case

LT ICA  Pre Towne

Management of complex CCF case

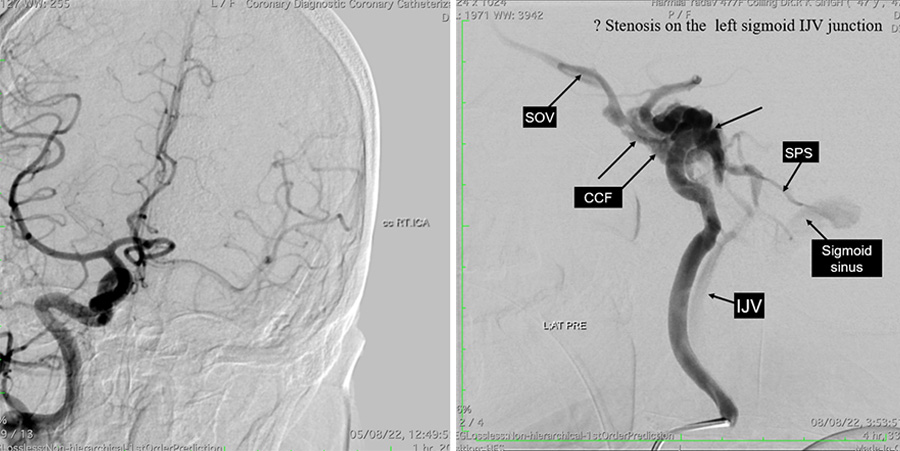

Dysplastic ICA

How to proceed?

a) Occlusion of the parent artery
b) Covered stent
c) Stent / FD (arterial side) assisted by coiling + onyx (venous approach)

Management of complex CCF case

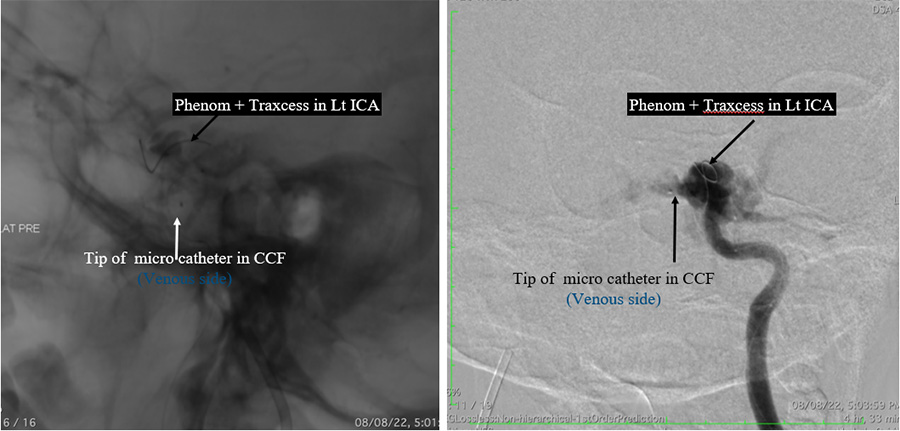

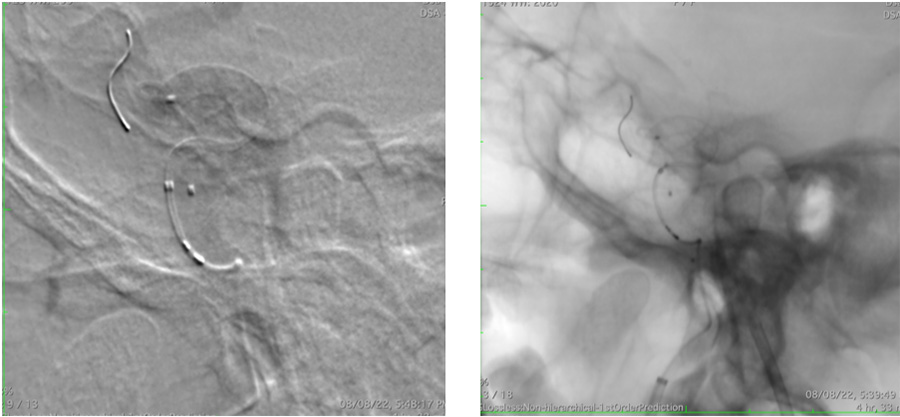

Micro for FD and coiling

Management of complex CCF case

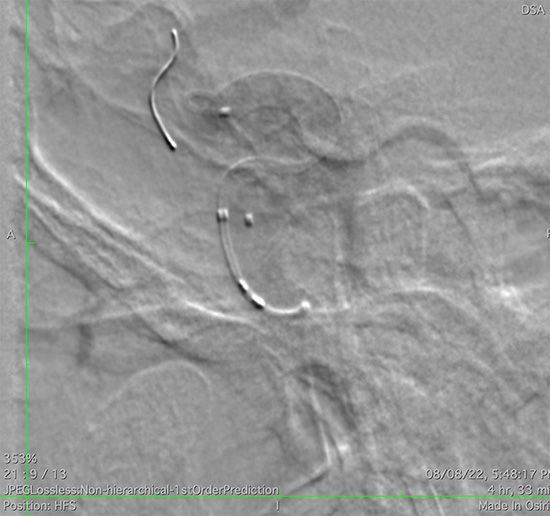

FD partial deployment

Management of complex CCF case

FD deployment + micro in CCF

Management of complex CCF case

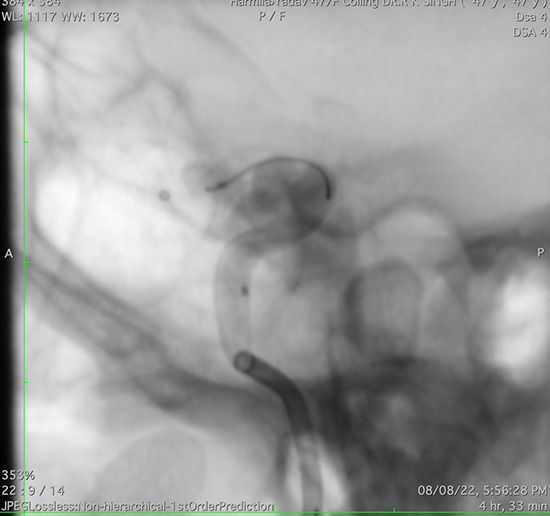

Post complete FD deployment

Management of complex CCF case

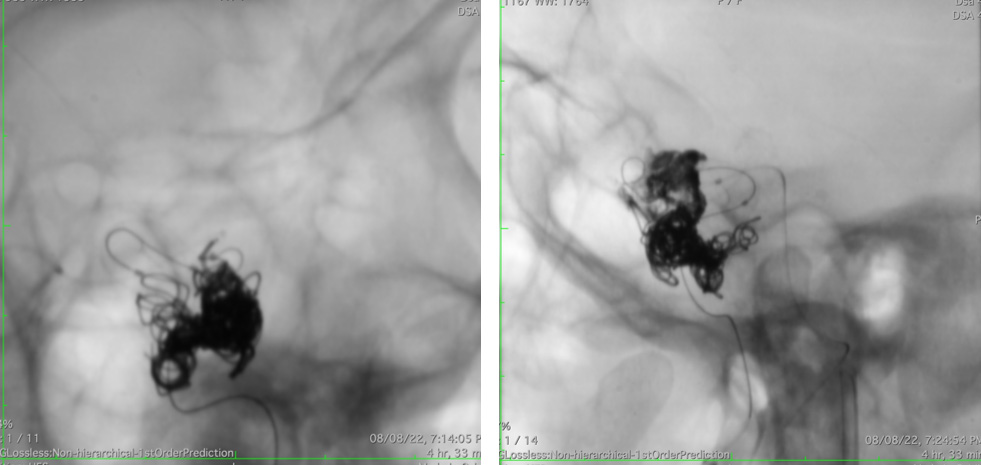

Post-coiling RT IPS

Management of complex CCF case

SS RT IPS LAT

Management of complex CCF case



SS IPS TOWNE

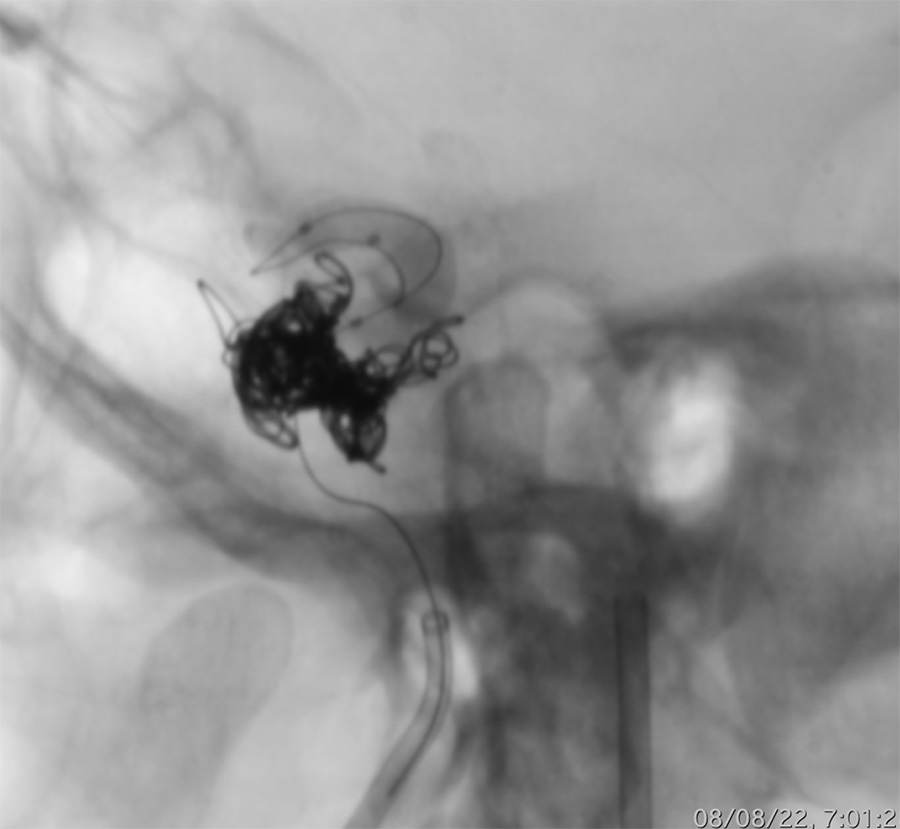

Post-coiling

Management of complex CCF case

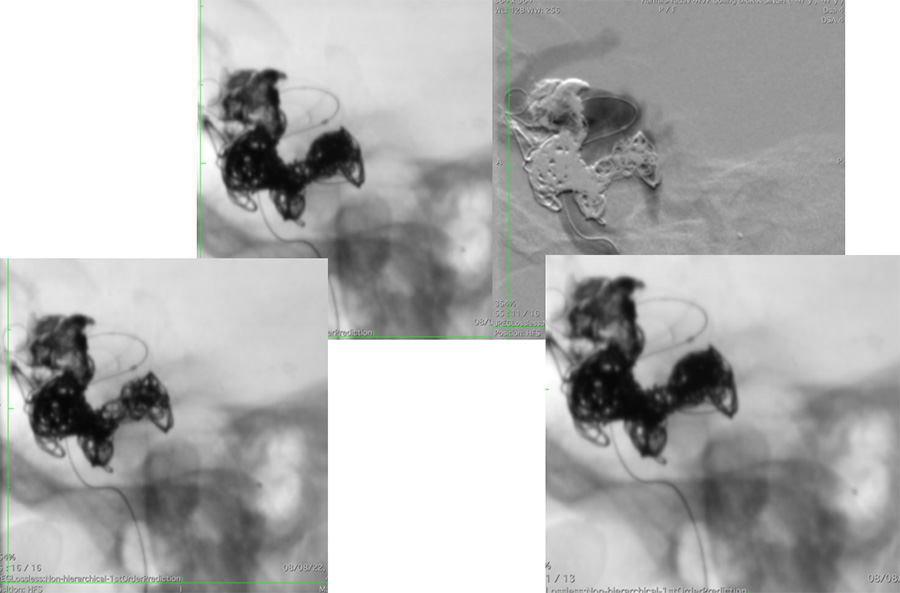

ONYX EMBOLIZATION

via right IPS

Management of complex CCF case

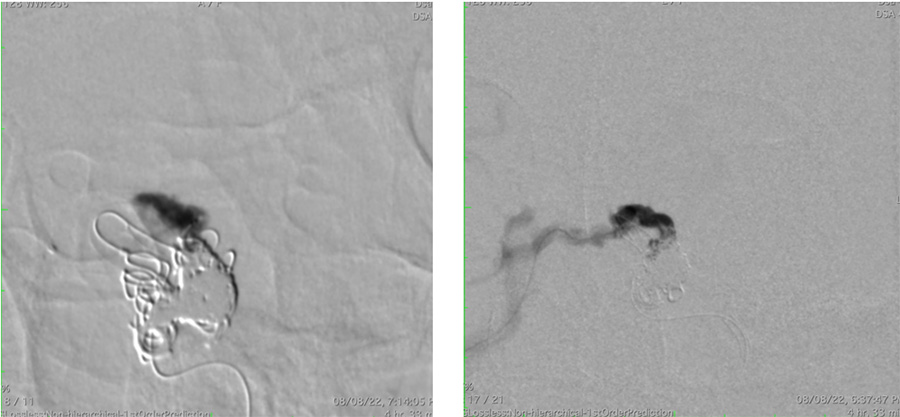

Post- IPS partial coiling

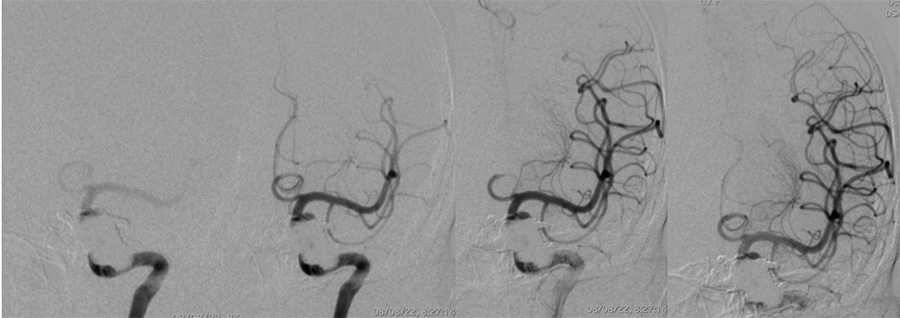

LT ICA LAT

Management of complex CCF case

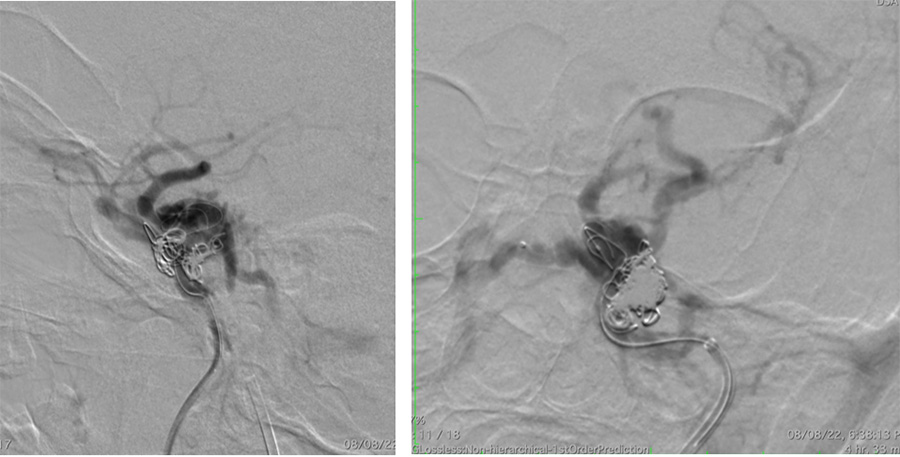

Coiling from left SPS



Management of complex CCF case

 SPS coiling

Management of complex CCF case

ICA protection (balloon occlusion)

Management of complex CCF case

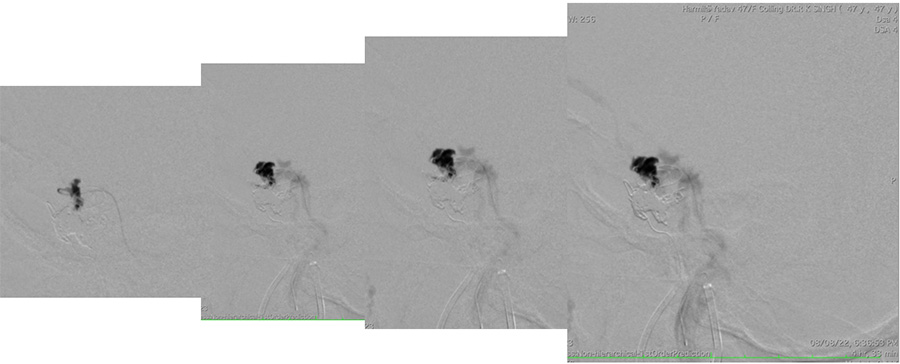

Onyx embolization

Right SPS

Management of complex CCF case

Onyx cast

Management of complex CCF case

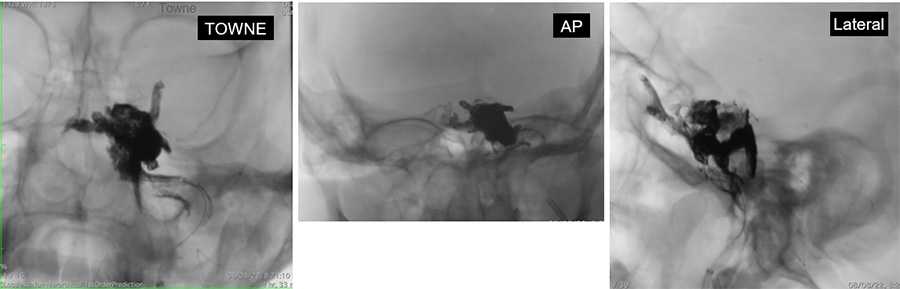

Final AP

Management of complex CCF case

Final lateral

Management of complex CCF case
Conclusion
  • Bruit and chemosis subsided by POD 1
  • Pain subsided at discharge D4.
  • Follow-up after a week: partial ptosis and moderate restriction of EOM in all directions.



Management of complex CCF case

Learning points

Principles for managing high-speed direct CCFs

Spontaneous direct CCFs are reported

Identification of the precise site of the fistula (fast images per second with cross compression or balloon)

Cross flow from Acomm or Pcomm

Venous flow (vascular access planning) (obstruction at sigmoid VMI junction)

Obstruction (occlusion) or preservation (stent / FD / coiling /onyx)

Bottlenecks in this case

Direct high flow CCF

Dysplastic ICA (FD endothelializes the ICA and allows for coil entrapment)

Collapsed FD at the elbow (opened with balloon angioplasty)

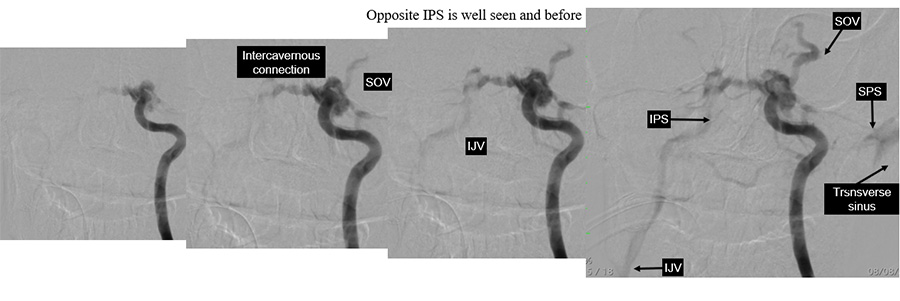

Ipsilateral IPS not seen (venous approach i.e. IPS - inter cavernous connection)

Large fistula and difficult to occlude with coiling from IPS access alone (Ipsilateral SPS used to occlude posterior part of fistula)

The coils fail to occlude the CCF (Onyx to occlude small tributaries)
