Snare Wars - The catheter strikes back

Last update on June 4, 2025



A woman in her 40s with an incidental 5 mm PCom aneurysm and a strong family history of rupture was offered endovascular treatment. During deployment of the intrasaccular device, a complication occurred, leading to a creative rescue using a 2 mm gooseneck snare.
Don’t miss this case of precise troubleshooting and smart decision-making presented by Samer Al-Ali, winner of the LINNC online 2025 Clinical Case Contest .

Case presentation
  • Normally fit and well female in her 40s

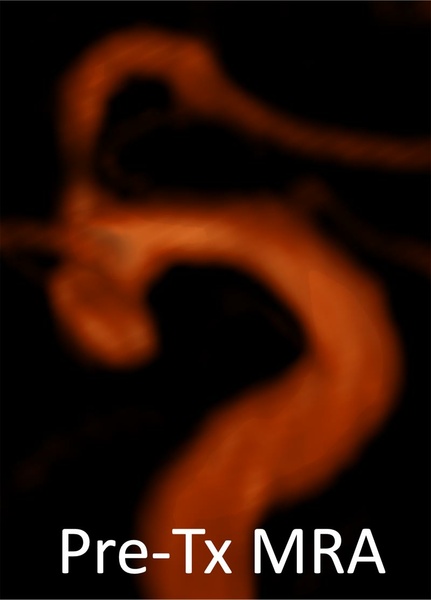

  • Incidental finding of a 5mm left PCom aneurysm after investigations for a seizure
  • Smoker
  • Family history of ruptured cerebral aneurysms in a first-degree relative
  • Offered endovascular embolisation

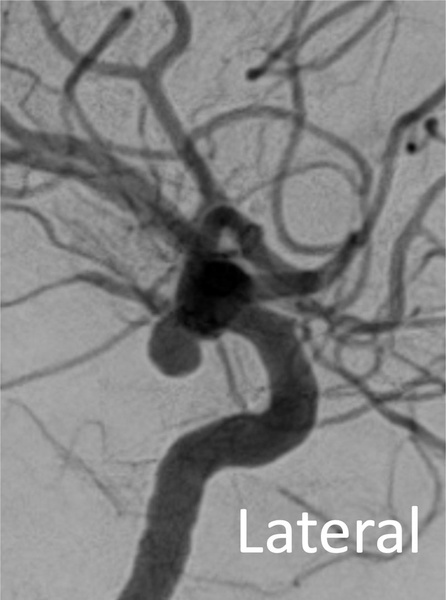

DSA



Powered by Quiz Maker

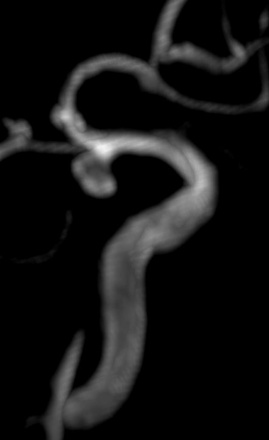

Following the initial DSA and 3D, decision was made to treat with a WEB device.

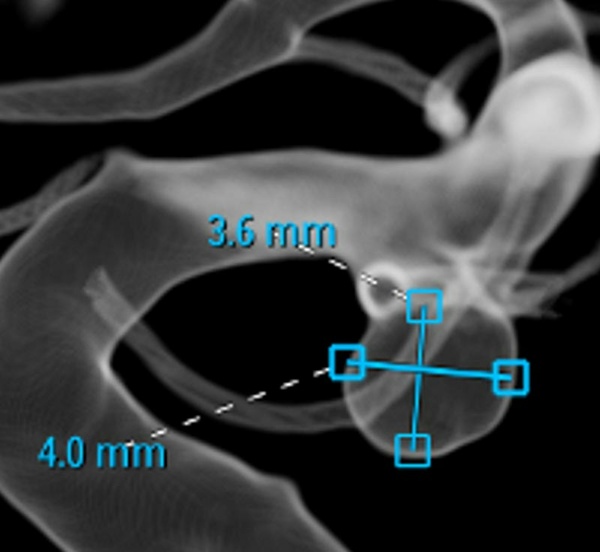

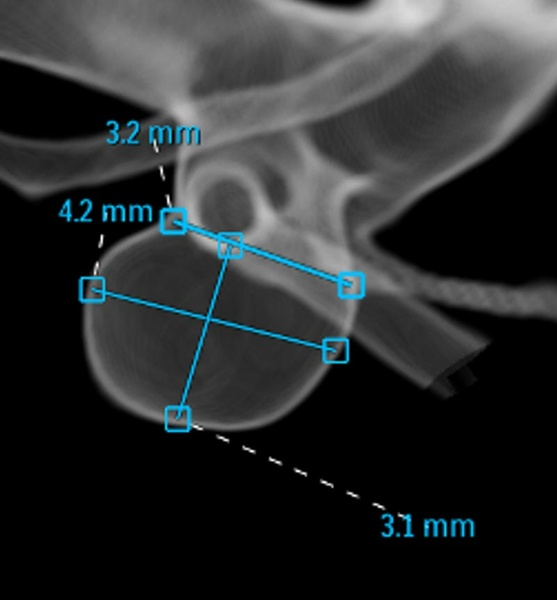

Average height = 3.3 mm
Average width = 4 mm





Powered by Quiz Maker



Procedure

  • GA. 6-French radial access. Co-axial system.
  • Benchmark/MPA/Terumo used to access the left ICA for angiography and 3D.
  • 90-degree Via 17 with Synchro wire to cannulate aneurysm. WEB 4.5 x 2mm device deployed.
  • Good result on deployment with complete aneurysm coverage, early stasis and maintained patency of the small PCom vessel.



Detachment

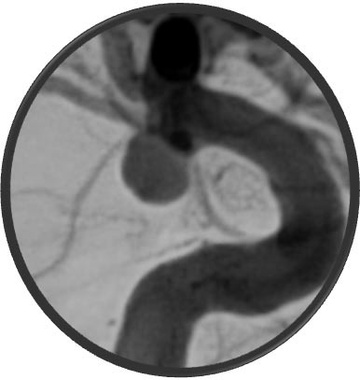

  • During detachment, the VIA 17 catheter jumped forward, compressing the WEB device within the aneurysm sac, causing a significant neck residual.



Powered by Quiz Maker



Solution

  • A 2mm Amplatz gooseneck snare device was used to “capture” the proximal marker
  • At this point, the WEB device could have been retrieved and the procedure started again





  • Instead, the WEB device was repositioned with gentle traction on the captured marker. Once a satisfactory appearance was achieved, the marker was released.





Final Run

  • The end of procedure angiogram showed an excellent result with signs of early aneurysm occlusion.

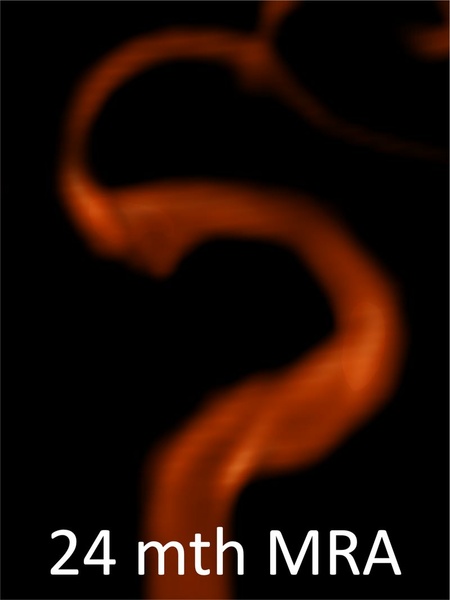

Result



Discussion

  • WEB devices are a useful solution for the treatment of wide-necked intracranial aneurysms, but can otherwise also provide a straightforward “one and done” solution for the treatment of many intracranial aneurysms.
  • An excess of retained tension within the deployment catheter can result in forward “jumping” of the catheter on WEB deployment.
  • The use of snare devices has been shown to be useful in the retrieval of intracranial devices such as the WEB device.
  • This case describes the successful use of a 2mm gooseneck snare to “capture” the proximal marker of a mal-positioned WEB device and re-adjust the position without the need for retrieval and re-deployment of the WEB device.



References

Chew, H. S., Altibi, M., Al-Ali, S., Butler, B., Butt, W., Chavda, S., & Lamin, S. (2024). Microsnare retrieval as a bail-out technique of Detached Woven EndoBridge device: Illustrative series. Interventional Neuroradiology.
