So close yet so far

Last update on May 14, 2024

Follow the case of a 27-year-old woman with von Willebrand disease presenting with right-sided tinnitus, evolving into pulsatile tinnitus. Delve into the diagnostic journey through MRI and DSA, revealing multiple fistulas originating from various arterial branches. Explore the challenge of microcatheter support at the skull base and the innovative solution using Sofia 5F for distal support in the MMA trunk.

Case presentation
  • 27 yo female with mild form of von Willebrand disease
  • 9/22 appeared right sided tinnitus. At beginning tinnitus sounded like wheezing, then changed to pulsatile tinnitus.
  • 6/23 MRI, followed by DSA 11/23


MRI

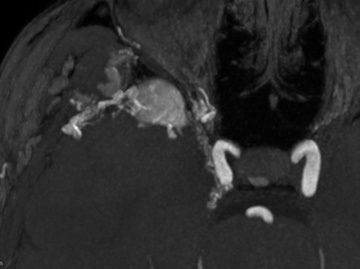

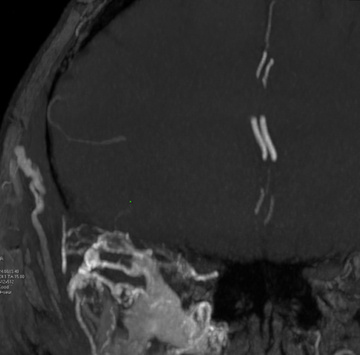

TOF MRI imaging of the brain demonstrated abnormal vessels along the right skull base. Most of the feeding arteries seem to come from external carotid artery.

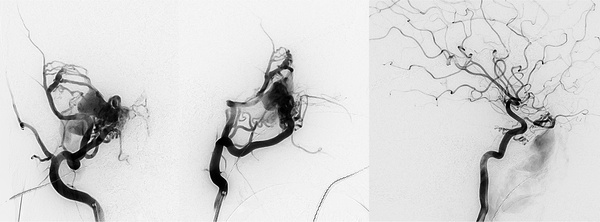

ECA DSA showing multiple fistulas arising from right MMA and maxillaris interna branches. There are feeding vessels from right ophtalmic artery as well as from cavernous ICA through the skull base. Drainage is direct to a large venous structure that extends through the skull base.



To treat or not to treat?

The patient is strongly bothered by her symptoms.
The fistula carries a risk for bleeding and local expansion.

  • Plan was to close the fistula with coils


Endovascular procedure

Patient in general anesthesia.

Right radial approach:

  • Terumo 035 180cm
  • Terumo Slender 7F 16cm
  • Penumbra Select Sim 1 5F 120cm
  • Penumbra Benchmark 6F 95cm

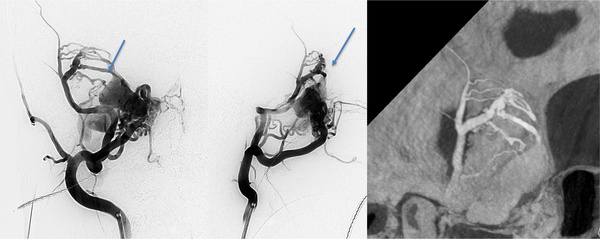

There appears to be a ”three lane highway” leading directly from MMA to the large venous pouch



Lots of devices, effort and sweat to reach the target

  • Headway Duo 156cm x   2
  • Synchro Select 014 215cm x  3
  • Asahi Chikai 010 200cm
  • Asahi Cikai 018 200cm
  • Microvention Terumo Traxcess 014 200cm

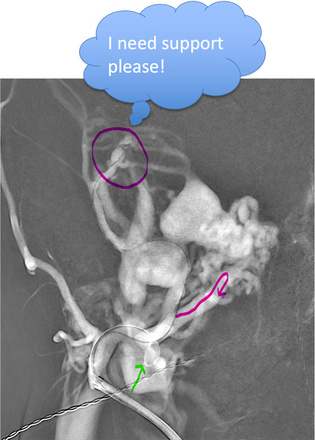

Problem arose at the distal loops at the skull base level, causing the microcatheter to prolapse to the main maxillaris interna trunk.

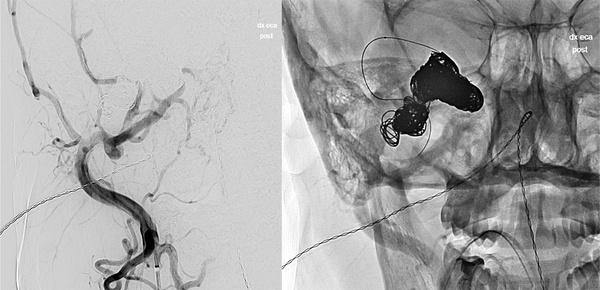

Coils, coils, coils and one more coil

  • Stryker Target XL 360 Standard 42mmX50cm
  • Stryker Target XL 360 Soft 14mmX50cm
  • Stryker Target XL 360 Soft 10X40cm
  • Stryker Target XL 360 Soft 9mmX30cm
  • Stryker Target XL 360 Standard 9mmX30cm
  • Stryker Target XL 360 Standard 8mmX30cm
  • Stryker Target XL   360 Standard 6mm x20cm
  • Stryker Target XL  360 Soft 20mm x 50mm
  • Stryker Target XL  360 Soft 20mm x 50cm
  • Stryker Target XL  360 Soft 16mm x 50cm
  • Stryker Target XL 360 Standard  16mm x 50cm
  • Stryker Target XL 360 sSandard 14mm x 50cm
  • Stryker Target XL 360 Soft  12mmx 45cm
  • Stryker Target XL 360 Soft 12mmx45cm
  • Stryker Target XL 360 Soft 12mmx45cm
  • Stryker Target XL 360 Standard 10mmx40cm
  • Stryker Target XL 360 Soft 9mmx30cm
  • Stryker Target XL 360 Standard 7mmx20cm
  • Stryker Target XL  360 Soft 5mmx20cm

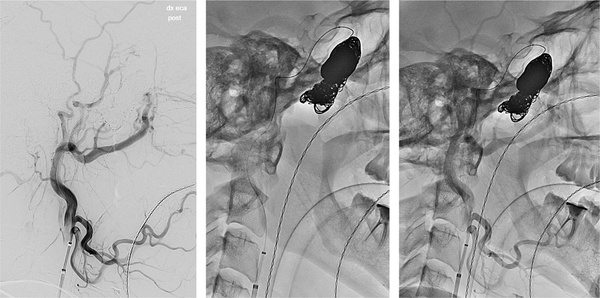

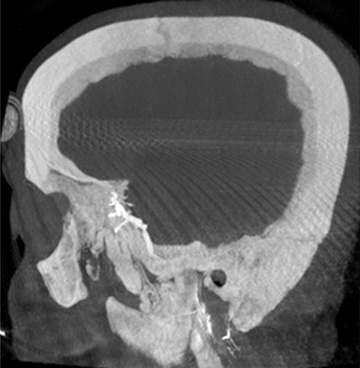

Final result




Conclusion and key points

The microcatheter lacked support at skull base level where the feeding arteries traversed the bone, making it impossible to reach the fistula.

We tried with various different microcatheters and wires. The key point was to find adequate distal support. This was reached with Sofia 5F distally in the MMA, that was soft and navigable enough to be placed distally in the MMA trunk.
